Remove/install activated charcoal canister - AR47.30-P-8212NKB

MODEL 117, 156, 176, 246 with ENGINE 270

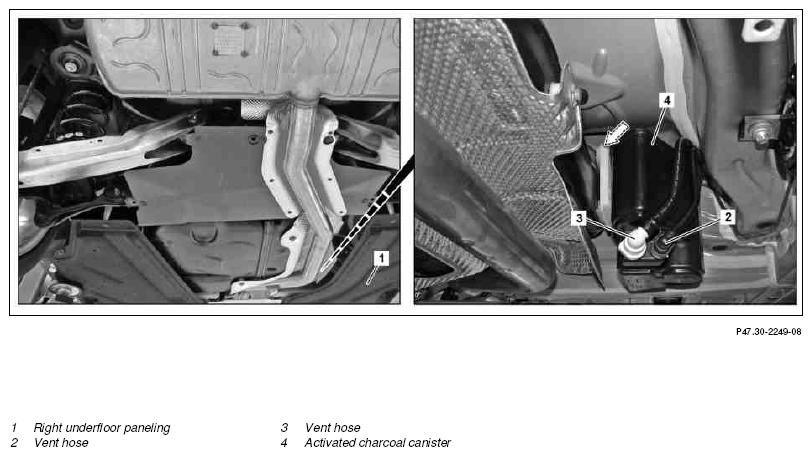

Fig 1: Activated Charcoal Canister Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Remove/install
1	Remove right underfloor paneling (1)		AR61.30-P-1001NKB
2	Detach vent hoses (2, 3) on activated charcoal canister (4)	A check valve is installed in the vent hoses (2, 3) in order to avoid large fuel leakage.
3	Press catch tab (arrow) on activated charcoal canister (4), push activated charcoal canister (4) upwards and remove
4	Install in the reverse order
