Remove/install fan unit - AR20.40-P-5050NKB
ENGINE 270 in MODEL 117, 156, 176, 242, 246
ENGINE 607 in MODEL 117, 156, 176, 246
ENGINE 651 in MODEL 117, 156, 176, 246

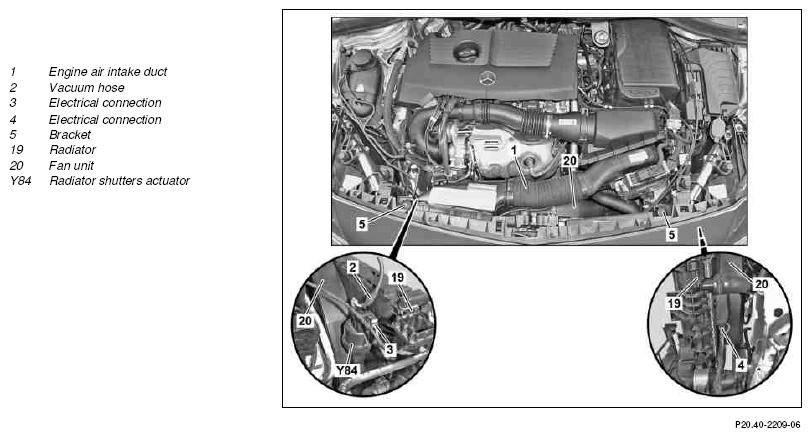

Shown on model 246 with engine 270
| Remove/install | |||
| 1.1 | Remove bottom section of soundproofing | ENGINE 607 in MODEL 156 ENGINE 607, 651 in MODEL 117, 176, 246 |
|
| AR94.30-P-5300NKB | |||
| 1.2 | Remove lower engine compartment paneling | ENGINE 270 in MODEL 117, 176, 242, 246 ENGINE 270, 651 in MODEL 156 |
|
| AR61.20-P-1105NKB | |||
| 2 | Unclip coolant expansion reservoir and place with attached lines to one side | ||
| 3 | Disconnect electrical connection (3) radiator shutters actuator (Y84) and put down onto engine | If installed | |
| 4 | Unclip electrical line for "circuit B+" for alternator from fan unit (20) | ||
| 5 | Remove engine air intake duct (1) upstream of air filter | ENGINE 607 in MODEL 117, 156, 176, 246 | AR09.10-P-1150ORA |
| ENGINE 270 in MODEL 117, 156, 176, 242, 246.2 | AR09.10-P-1150MT | ||
| MODEL 117, 156, 176, 246 with ENGINE 651 | AR09.10-P-1150OLB | ||
| 6 | Detach vacuum hose (2) from radiator shutters actuator (Y84) and put down onto engine | If installed | |
| 7 | Disconnect electrical connection (4) for fan motor, unclip from fan unit (20) and set aside | ||
| 8 | Remove both holders (5) of cooler (19) on front area module | ||
| 9 | Swivel radiator package in engine direction, unclip fan unit (20) at cooler (19) and remove upwards | ||
| 10 | Install in the reverse order |
