Remove/install Drive Kit Plus control unit for Apple iPhone - AR82.60-P-0019NKB
MODEL 117, 156, 176 with CODE B56 (Drive Kit Plus for the iPhone® 4/4S)
MODEL 117, 156, 176 with CODE B62 (Drive Kit Plus for the iPhone® 5)
Shown on model 117

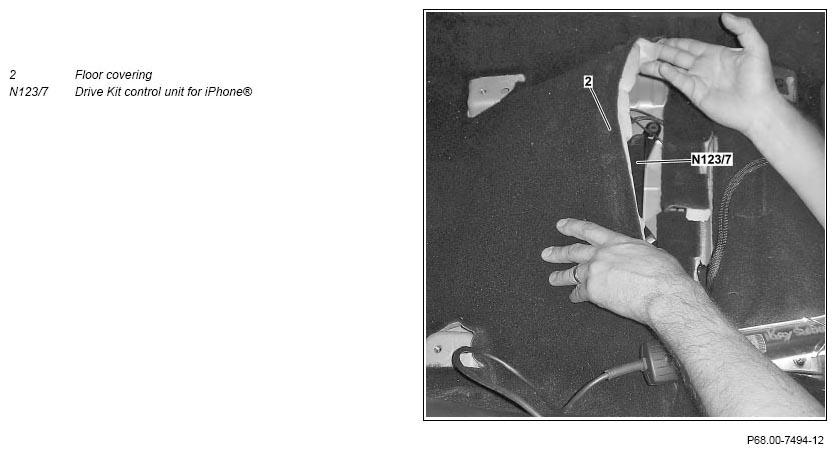

Fig 1: Drive Kit Plus Control Unit For Apple Iphone Remove/Install Components - Shown On Model 117 (1 Of 2)

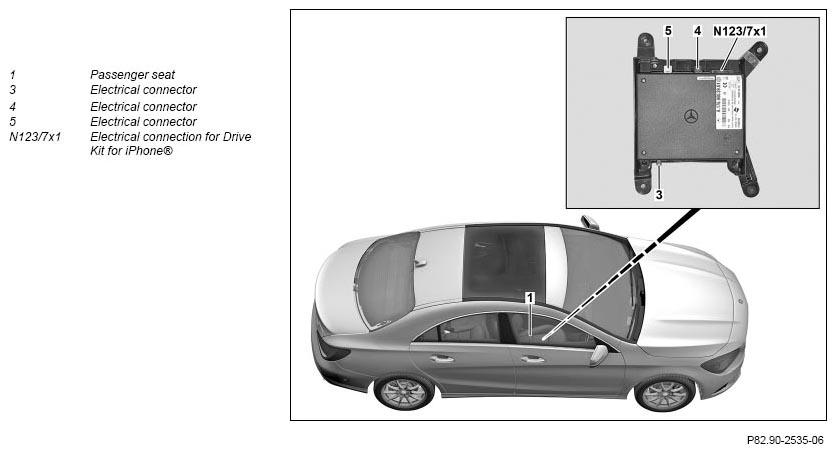

Fig 2: Drive Kit Plus Control Unit For Apple Iphone Remove/Install Components - Shown On Model 117 (2 Of 2)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach front passenger seat (1) from vehicle floor and tilt toward rear | AR91.10-P-1000NKA | |
| 2 | Fold floor covering (2) upward | ||
| 3 | Remove screws/bolts of cover | ||
| 4 | Disconnect Drive Kit for iPhone® electrical connector (N123/7x1) | ||
| 5 | Disconnect electrical connectors (3, 4, 5) | ||
| 6 | Remove control unit for Drive Kit for iPhone® (N123/7) with cover | ||
| 7 | Unclip control unit for iPhone® (N123/7) from cover | ||
| 8 | Install in the reverse order |
