Cavity preservation following repair work - AR97.20-P-1500NKC

MODEL 117

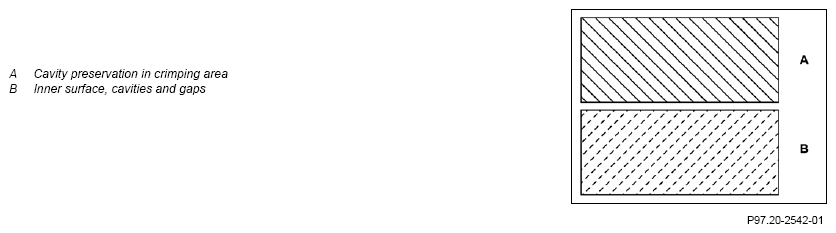

The following differentiation is made for cavity preservation:

Fig 1: Cavity Preservation In Crimping Area, Inner Surface, Cavities And Gaps

Courtesy of MERCEDES-BENZ USA

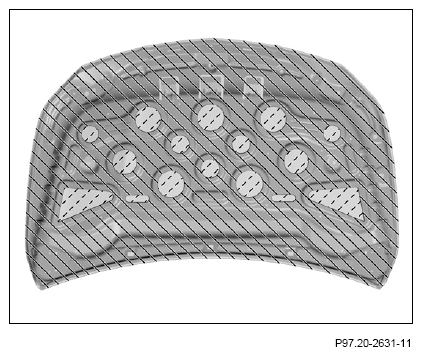

Engine hood

Fig 2: Cavity Preservation Areas On Engine Hood

Courtesy of MERCEDES-BENZ USA

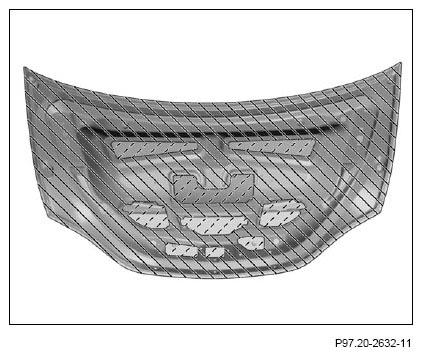

Trunk lid

Fig 3: Cavity Preservation Areas On Trunk Lid

Courtesy of MERCEDES-BENZ USA

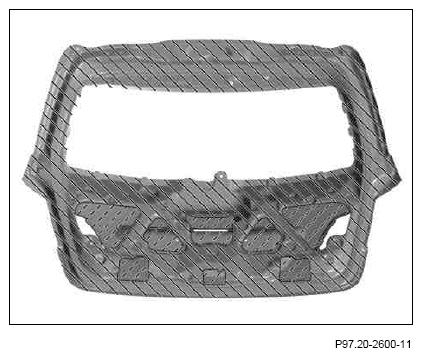

Liftgate, shown on MODEL 246

Fig 4: Cavity Preservation Areas On Liftgate - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

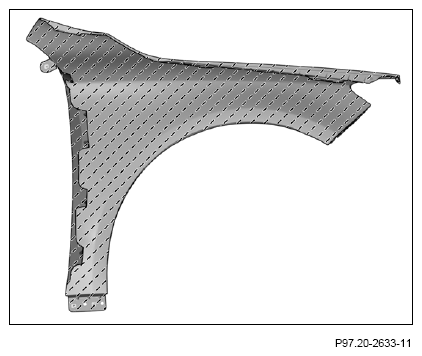

Fender

Fig 5: Cavity Preservation Areas On Fender

Courtesy of MERCEDES-BENZ USA

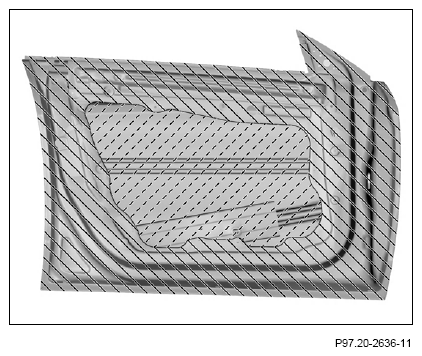

Front door

Fig 6: Cavity Preservation Areas On Front Door

Courtesy of MERCEDES-BENZ USA

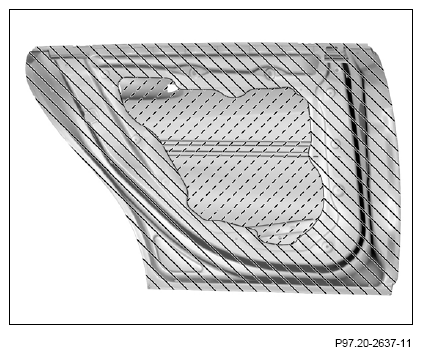

Rear door

Fig 7: Cavity Preservation Areas On Rear Door

Courtesy of MERCEDES-BENZ USA

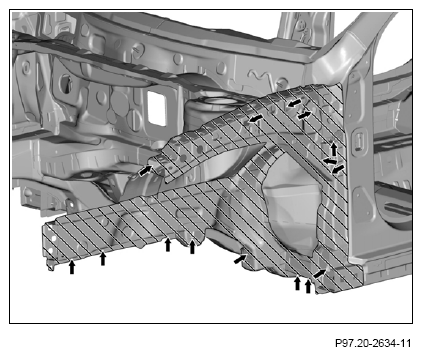

Front longitudinal member

Fig 8: Cavity Preservation Areas On Front Longitudinal Member

Courtesy of MERCEDES-BENZ USA

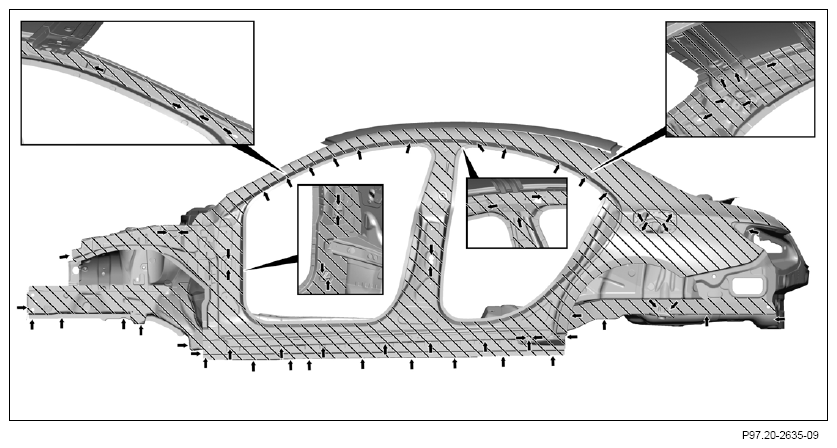

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 117.3

Fig 9: Upper Front Longitudinal Member, Side Wall Paneling And Bottom Side Longitudinal Member Cavity Shaded Area - Shown On Model 117.3

Courtesy of MERCEDES-BENZ USA

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 117.9

Fig 10: Upper Front Longitudinal Member, Side Wall Paneling And Bottom Side Longitudinal Member Cavity Shaded Area - Shown On Model 117.9

Courtesy of MERCEDES-BENZ USA

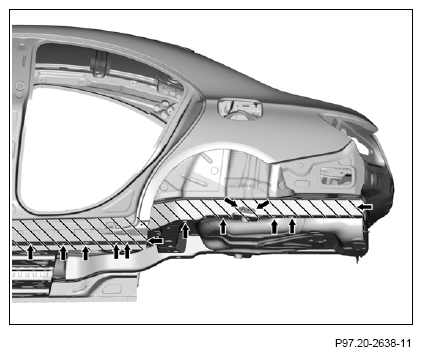

Rear longitudinal member, shown on model 117.3

Fig 11: Cavity Preservation Areas On Rear Longitudinal Member - Shown On Model 117.3

Courtesy of MERCEDES-BENZ USA

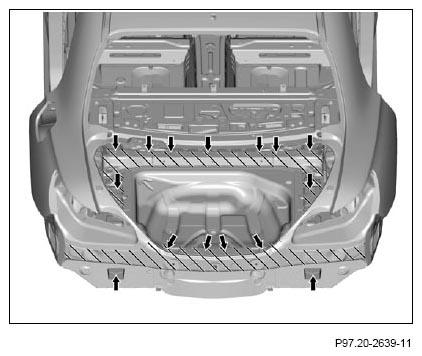

Rear area, shown on model 117.3

Fig 12: Cavity Preservation On Rear Area - Shown On Model 117.3

Courtesy of MERCEDES-BENZ USA

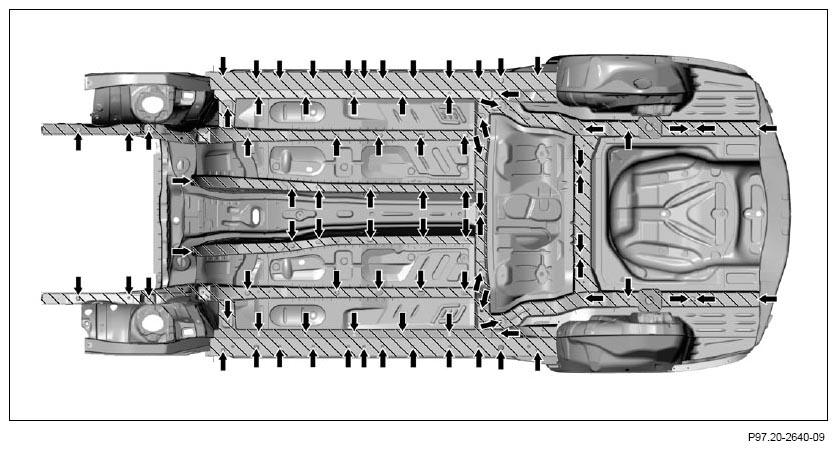

Underfloor

Fig 13: Cavity Preservation Areas On Underfloor

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
A	Cavity preservation in crimping area	Install from inside through openings (arrows) with hook probe. Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities.
A	Cavity preservation in crimping area	Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
B	Inner surface, cavities and gaps	Uniformly moisten cavity preservation.
B	Inner surface, cavities and gaps	Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
