Replace spare tire well - AR64.20-P-1245NKB

MODEL 117, 156, 176, 246

Shown on MODEL 246

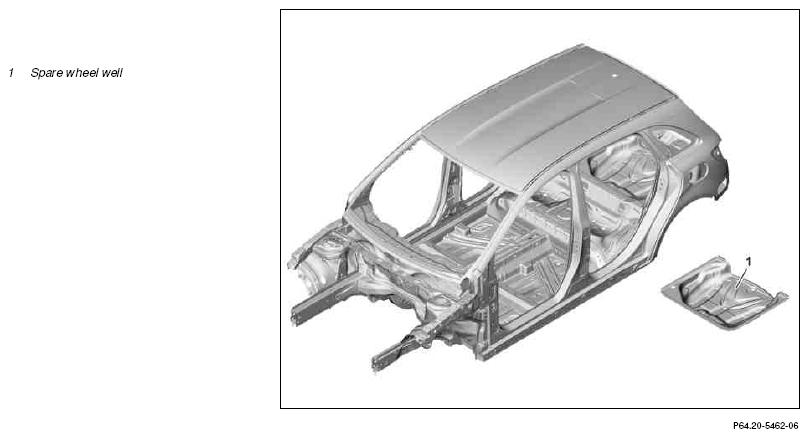

Fig 1: Spare Wheel Well - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Note on high-voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	General information on body repair		AH60.00-P-0001-01A
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area to be repaired
2	Cover all detachable parts remaining on vehicle with spark protection blanket
3	Remove rear end assembly	Model 117	AR64.20-P-1020NKC
		Model 156, 176	AR64.20-P-1020NKA
		Model 246	AR64.20-P-1020NKB
4	Remove spare wheel well (1)		AR64.20-P-1245-01NKB
		Commercially available devices/tools  Round wire brush Body power jigsaw Spot weld milling machine Wet and dry vacuum cleaner
5	Prepare spare tire well (1)		AR64.20-P-1245-02NKB
		Commercially available devices/tools  Round wire brush Body power jigsaw
	Install
	Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
	General information on riveting		AH60.00-P-0003-01N
6	Install spare wheel well (1)		AR64.20-P-1245-03NKB
	000 588 02 39 00 Rivet press tool		WS60.00-P-0010B
		Commercially available devices/tools  Round wire brush Manual temporary fastener, 6.35 mm Wet and dry vacuum cleaner
		Adhesive kit, body, 2-component adhesive	*BR00.45-Z-1092-02A
		Blind rivet, 6.4 x 14	*BR00.45-Z-1001-13A
7	Install rear end assembly	Model 117	AR64.20-P-1020NKC
		Model 156, 176	AR64.20-P-1020NKA
		Model 246	AR64.20-P-1020NKB
