Remove/install trim strip on dashboard - AR68.10-P-1180NKC

MODEL 117, 156

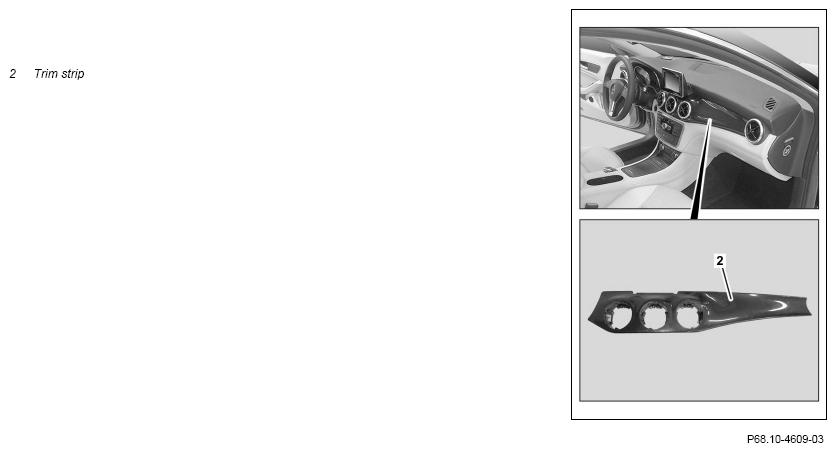

Fig 1: Dashboard Trim Strip Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

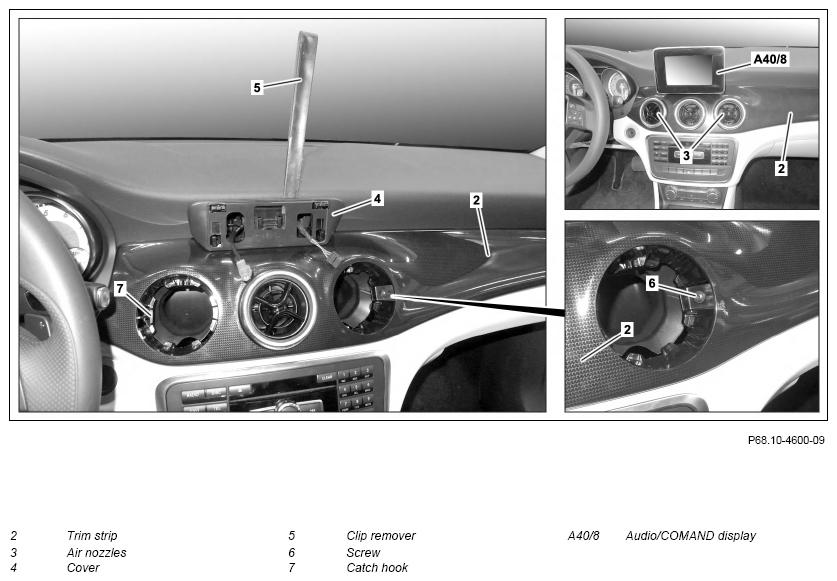

Fig 2: Dashboard Trim Strip Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove air nozzles (3)		AR83.10-P-4503NKB
2	Remove Audio/COMAND display (A408)		AR82.60-P-7722NKB
3	Unclip cover (4) with clip remover (5) and remove	Removal:  Ensure that nuts do not fall out on threaded connection of Audio/COMAND display.
		Clip remover	Figure
4	Remove bolt (6)
5	Release catch hook (7)
6	Unclip trim strip (2) and remove	Clip remover	Figure
7	Install in the reverse order

Fig 3: Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
