Remove/install side paneling in trunk - AR68.30-P-4800NKC

MODEL 117.3

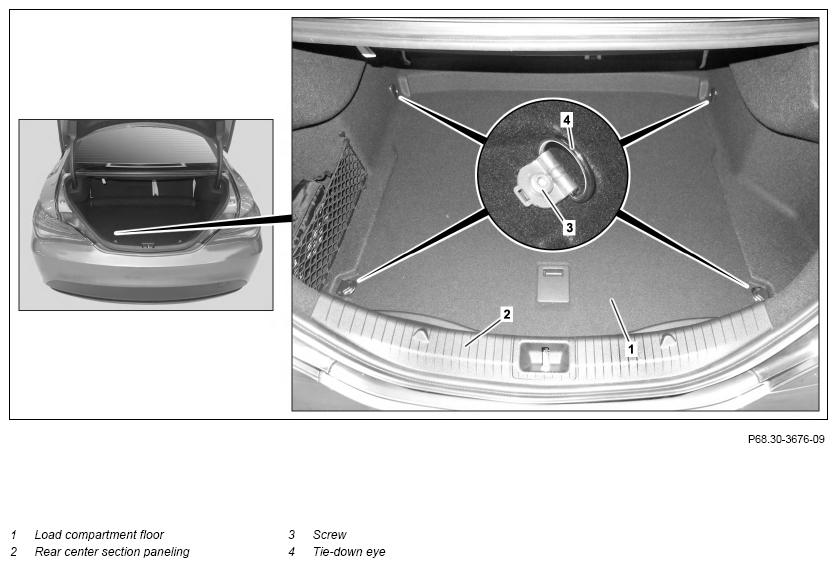

Fig 1: Side Paneling In Trunk Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Side Paneling In Trunk Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear center section paneling (2)		AR68.30-P-4785NKC
2	Remove load compartment floor (1) out of trunk
3	Remove covers on tie-down eyes (4), unscrew bolts (3) and remove tie-down eyes (4)
4	Remove expansion rivets (7)	Replace damaged expansion rivets (7).
5	Remove right paneling (5)	Ensure that edge guard is seated correctly.
6	Loosen left paneling (6) until electrical connector on left trunk lamp (E18/5) is accessible
7	Release electrical connector on left trunk lamp (E18/5) and disconnect
8	Remove left paneling (6)	Ensure that edge guard is seated correctly.
9	Install in the reverse order
