Retrofit SD card navigation - AN82.85-P-0007NKH

MODEL 117.3 with CODE 505 (Radio 20 NTG5, not navigation-enabled) except CODE 460 (Canada version) except CODE 494 (US version) except CODE 498 (Japanese version)

MODEL 117.3 with CODE 520 (Audio 20 USB) except CODE 460 (Canada version) except CODE 494 (US version) except CODE 498 (Japanese version)

MODEL 117.3 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) except CODE 460 (Canada version) except CODE 494 (US version) except CODE 498 (Japanese version)

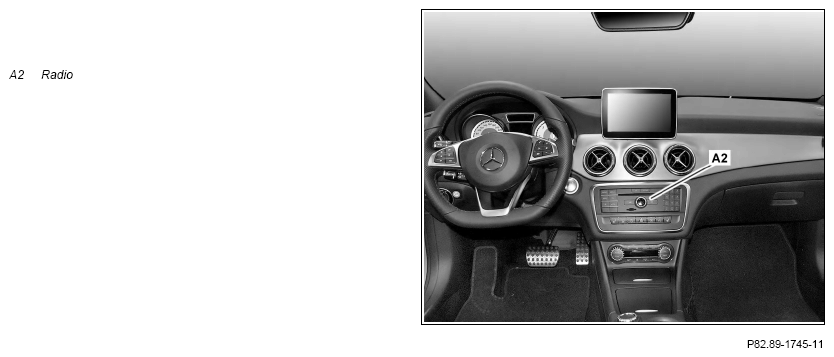

Fig 1: Locating Radio

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1.1	Release radio (A2) (Audio 20 CD including preinstallation for Garmin® MAP PILOT) and carefully place with connected wiring harnesses onto center console	MODEL 117.3 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
			AR82.60-P-7502NKB
		Use clean cloth as base.
1.2	Remove radio (A2) (Radio 20 NTG5 non-navigation-capable or Audio 20 USB)	Model 117.3 with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 520 (Audio 20 USB)
			AR82.60-P-7502NKB
		The radio (A2) (Radio 20 NTG5 non-navigation-capable or Audio 20 USB) is no longer required.
2	Remove instrument cluster
			AR54.30-P-6015NKB
		Do not disconnect electrical leads.
	Install
3	Retrofit global navigation system (GPS) antenna		AN82.85-P-0007-02NKH
		Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
4.1	Fix radio (A2) (Audio 20 CD including preinstallation for Garmin® MAP PILOT) in place	MODEL 117.3 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
			AR82.60-P-7502NKB
4.2	Install new radio (A2) (Audio 20 CD including preinstallation for Garmin® MAP PILOT)	Model 117.3 with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 520 (Audio 20 USB)
			AR82.60-P-7502NKB
	Update Vehicle Documentation (VeDoc)
5	Delete special equipment in online vehicle data card	MODEL 117.3 with CODE 505 (Radio 20 NTG5 non-navigation-capable) CODE 505 (Radio 20 NTG5 non-navigation-capable)
6	Delete special equipment in online vehicle data card	MODEL 117.3 with CODE 520 (Audio 20 USB) CODE 520 (Audio 20 USB)
7	Enter special equipment in online vehicle data card	Model 117.3 with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 520 (Audio 20 USB) CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) Code 818 (Single CD drive)
8	Enter special equipment in online vehicle data card	Code 357 (Card navigation)
9	Attach note "SD card navigation retrofitted as per AN82.85-P-0007NKH " under field organization texts to design group 82
10	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
11	Carry out variant coding using software calibration number (SCN)	Instrument cluster
12	Carry out variant coding using software calibration number (SCN)	Model 117.3 with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 520 (Audio 20 USB) Head unit
13	Carry out variant coding using software calibration number (SCN)	Model 117.3 with code 218 (Reversing camera) with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 218 (Reversing camera) with code 520 (Audio 20 USB) Backup camera control unit
14	Carry out variant coding using software calibration number (SCN)	Model 117.3 with code 350 (eCall Europe emergency call system) with code 505 (Radio 20 NTG5 non-navigation capable) model 117.3 with code 350 (eCall Europe emergency call system) with code 520 (Audio 20 USB) model 117.3 with code 505 (Radio 20 NTG5 non-navigation capable) with code B54 (Live Traffic Information) model 117.3 with code 520 (Audio 20 USB) with code B54 (Live Traffic Information) Communications module
15	Disconnect diagnostic system
			AD00.00-P-2000-04A
