Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008NKI

MODEL 117.3 with CODE 531 (COMAND APS) with CODE 815 (Single DVD drive) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 814 (DVD changer)

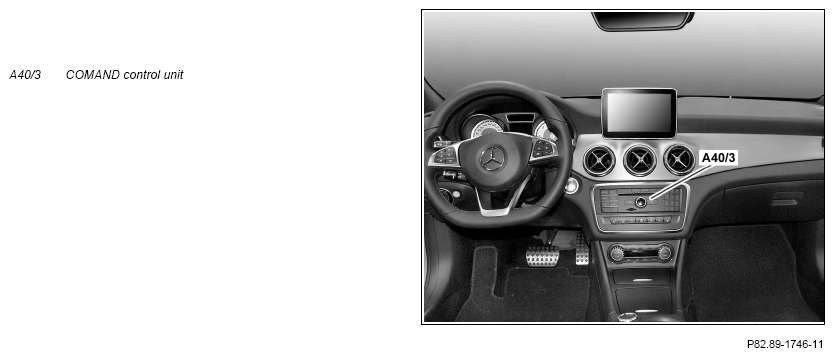

Fig 1: COMAND Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove COMAND controller unit (A40/3) (COMAND APS)
			AR82.60-P-7502NKB
		The removed COMAND controller unit (A40/3) (COMAND APS) is no longer required.
	Install
2	Install new COMAND controller unit (A40/3) (COMAND Online incl. DVD changer)
			AR82.60-P-7502NKB
	Update Vehicle Documentation (VeDoc)
3	Delete special equipment in online vehicle data card	CODE 815 (Single DVD drive)
4	Enter special equipment in online vehicle data card	CODE 814 (DVD changer)
5	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008NKI " under field organization texts to design group 82
