Remove/install inside rearview mirror - AR68.40-P-0001NKB
MODEL 117, 156, 176, 242, 246
Shown on MODEL 246
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Release trim (2.1, 2.2) from base (3A67) of inside rearview mirror | ||

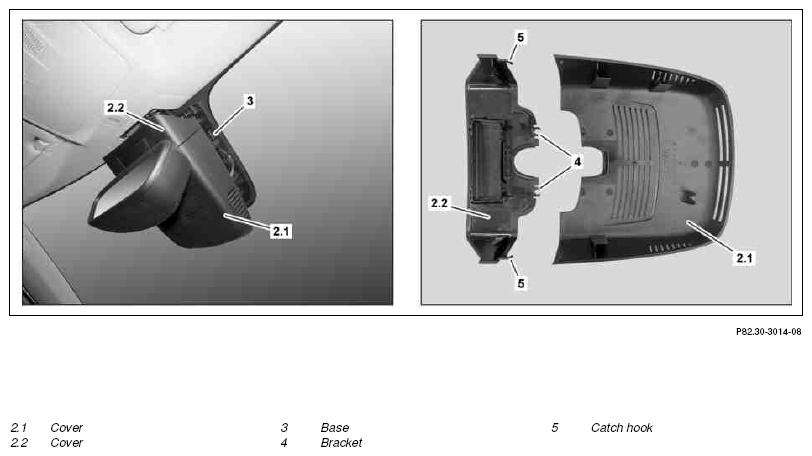

| 2.1 | Detach cover (2.1) from cover (2.2) and remove both covers (2.1, 2.2) | MODEL 117, 156, 176, 242, 246 without CODE 348 (Emergency call/assistant system) without CODE 350 (Ecall Europe, gen. 2 emergency call system) without CODE 882 (Interior motion sensor) |
|
| 2.2 | Remove trim (2.1) from paneling (2.2) and remove trim (2.1) | MODEL 117, 156, 176, 242, 246 with CODE 348 (Emergency call/assistant system) MODEL 117, 156, 176, 242, 246 with CODE 350 (Ecall Europe, gen. 2 emergency call system) MODEL 117, 156, 176, 242, 246 with CODE 882 (Interior motion sensor) |
|

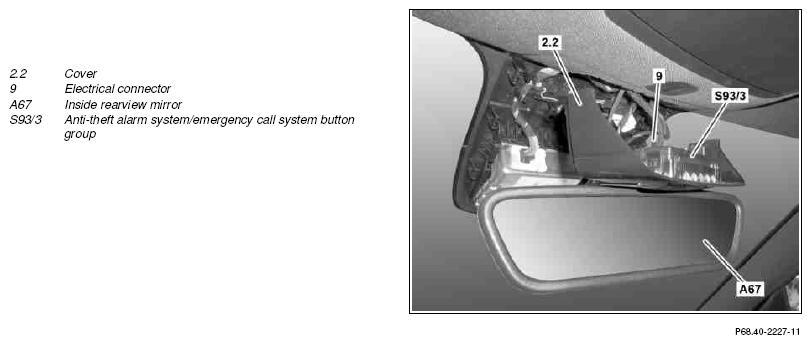

| 3 | Disconnect electrical connector (9) from antitheft warning system/emergency call system button group (S93/3) and remove panelings (2.2) | MODEL 117, 156, 176, 242, 246 with CODE 348 (Emergency call/assistant system) MODEL 117, 156, 176, 242, 246 with CODE 350 (Ecall Europe, gen. 2 emergency call system) MODEL 117, 156, 176, 242, 246 with CODE 882 (Interior motion sensor) |
|

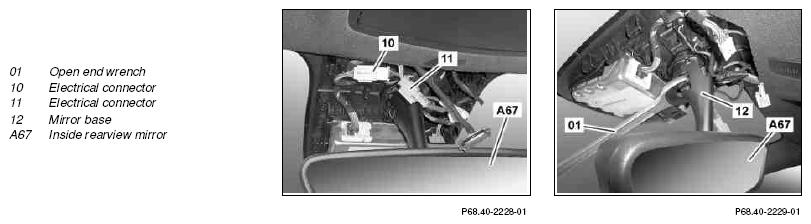

| 4 | Disconnect electrical connectors (10, 11) | ||
| 5 | Turn inside rearview mirror (A67) on mirror base (12) to right with open end wrench (01) and remove from mirror holder | ||
| 6 | Install in the reverse order | ||
| Settings | |||
| 7 | Adjust inside rearview mirror (A67) to steering variant | MODEL 117, 156, 176, 242, 246 with CODE U62 (Exterior light and sight package) When replacing inside rearview mirror (A67). |
|
| AR68.40-P-0001-01A | |||
| 8 | Connect diagnostic system and start up garage door opener transmitter unit control unit | MODEL 117, 156, 242, 246 with CODE 232 (Garage door opener with frequency 284-390 MHz) When replacing inside rearview mirror (A67). |
|
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A | ||
| AD00.00-P-2000-04A |
