Remove/install stowage compartment or ashtray housing - AR68.20-P-2420NKB
MODEL 117, 156, 176, 242, 246

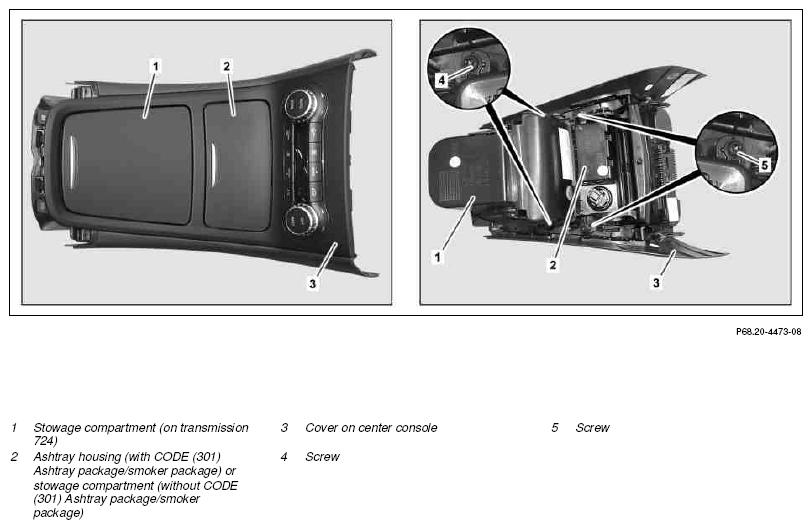

Shown on transmission 724 and with CODE (301) Ashtray package/smoker package
| Remove/install | |||
| 1 | Remove cover at center console (3) | AR68.20-P-2350NKB | |
| 2 | Unscrew bolts (4) and remove stowage compartment (1) | MODEL 117, 176, 242, 246 with TRANSMISSION 724 | |
| 3 | Unscrew bolts (5) and remove ashtray housing or stowage compartment (2) | ||
| 4 | Install in the reverse order |
