Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWI

Model 205.0 (except 205.064/086/087), 205.2 (except 205.264/286/287), 205.3 (except 205.364/386/387), 205.4 (except 205.464/486/487) with code 489 (AIRMATIC) with code M005 (4MATIC) except code 482 (Off-road comfort suspension) except code 485 (AGILITY CONTROL suspension with comfort tuning) except code 486 (Sports suspension)

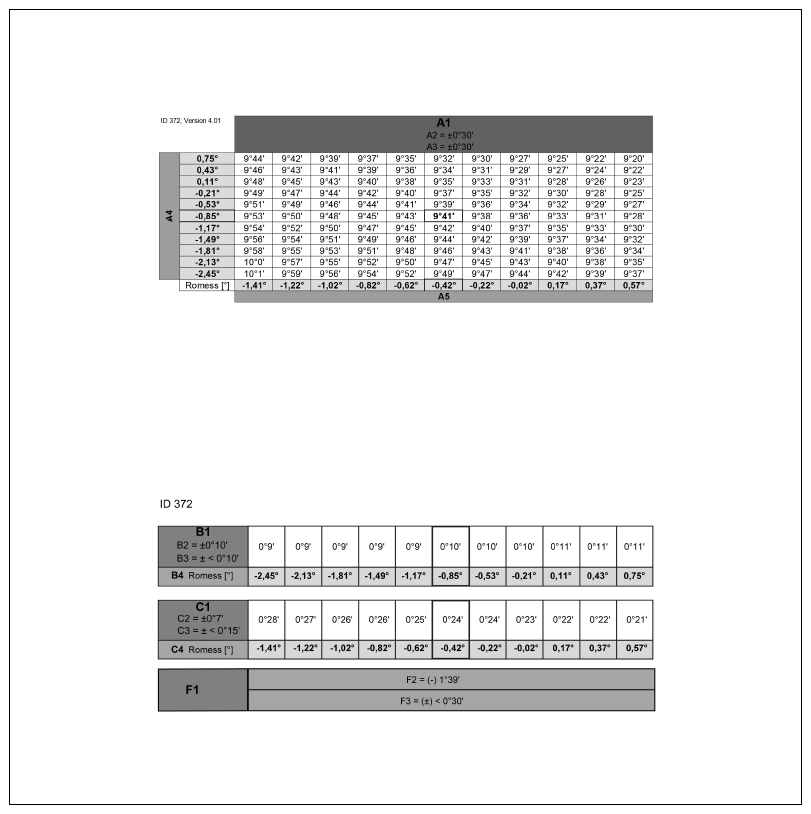

• A1 front axle caster values

  A2 absolute tolerance

  A3 left/right tolerance

  A4 front axle vehicle level

  A5 rear axle vehicle level

• B1 front axle toe values

  B2 absolute tolerance

  B3 left/right tolerance

  B4 front axle vehicle level

• C1 rear axle toe values

  C2 absolute tolerance

  C3 left/right tolerance

  C4 rear axle vehicle level

  Courtesy of MERCEDES-BENZ USA

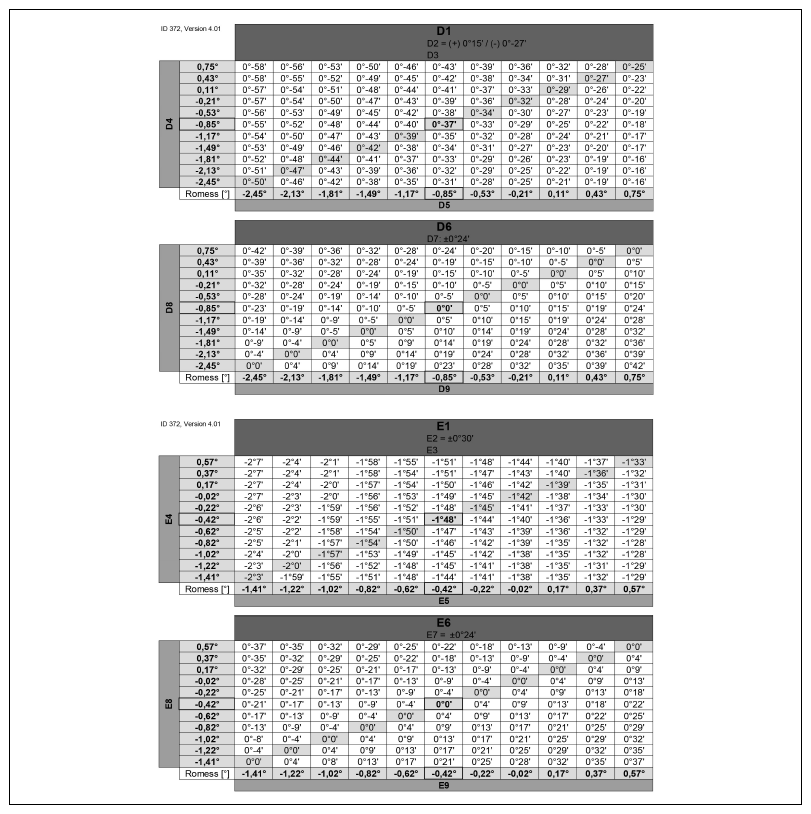

• D1 front axle camber values

  D2 absolute tolerance

  D3 left/right tolerance, see table D6

  D4 level value for required front axle camber side

  D5 level on opposite side

  D6 front axle camber left/right tolerance

  D7 value from camber, left/right nomogram

  D8 left front axle

  D9 right front axle

• E1 rear axle camber values

  E2 absolute tolerance

  E3 left/right tolerance, see table E6

  E4 level value for required rear axle camber side

  E5 level on opposite side

  E6 rear axle camber left/right tolerance

  E7 value from camber, left/right nomogram

  E8 left rear axle

  E9 right rear axle

Courtesy of MERCEDES-BENZ USA
