Replace Radial Shaft Sealing Ring At Outer Right Front Axle Differential - AR33.30-P-0540LWX

Model 205, 213, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 253 with transmission 724.2

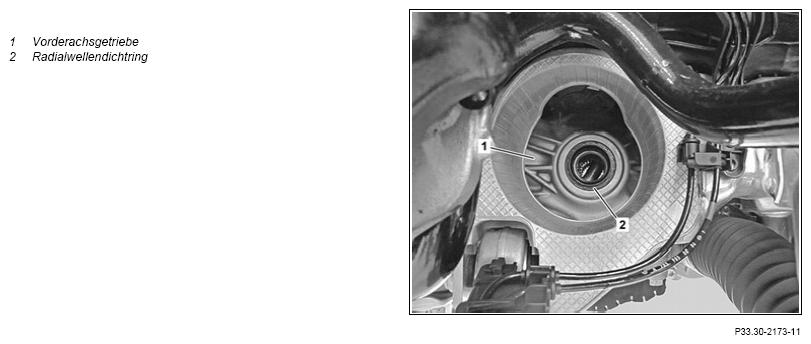

Fig 1: Radial Shaft Sealing Ring At Outer Right Front Axle Differential Components Location - Model 205 With Transmission 725 With Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury.  To skin and eye due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove center and rear section of lower engine compartment paneling.	Model 213, 238 with transmission 725.0 with code M005 (Vehicles with 4MATIC-/all wheel drive)	AR61.20-P-1105LWE
		Model 205, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC-/all wheel drive) Model 253 with transmission 724.2	AR61.20-P-1105LW
2	Drain hypoid gear oil from front axle differential (1).	Model 205, 213, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC-/all wheel drive) with VAG 160 Model 205, 213, 238, 253 with transmission 725.0 with Code M005 (Vehicles with 4MATIC-/all wheel drive) with VAG 175 Model 253 with transmission 724.2 with VAG 160 Model 253 with transmission 724.2 with VAG 175
		Model 205, 213, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC-/all wheel drive) with VAG 160 Model 253 with transmission 724.2 with VAG 160	AR33.25-P-0300-01LWX
3	Remove right front axle shaft.		AR33.30-P-0620LW
4	Pull radial shaft sealing ring (2) out of front axle differential (1) using internal extractor, pull-off device and impact extractor.	Connect the internal extractor and impact extractor to the threaded rod of the extraction tool. Internal extractor	Fig 6
		Internal extractor	Fig 3
		Extraction tool	Fig 7
		Impact extractor	Fig 6
	Install
5	Moisten sealing lip of new radial shaft sealing ring (2) with transmission oil.
	Universal hypoid gear oils (specification 235.7)		BB00.40-P-0235-07A
6	Install new radial shaft sealing ring (2) using drift.	VAG 160 Drift set	Fig 4
		VAG 175 Drift	Fig 5
7	Add hypoid gear oil into front axle differential (1) through opening of front axle shaft.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Hypoid gear oil	*BF33.30-P-1001-03F
		Hand Pump	Fig 2
8	Install right front axle shaft.		AR33.30-P-0620LW
	Risk of accident  fro vehicle starting off by itself when engine running. Risk of Injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it form starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Check front axle differential (1) for leak tightness and proper operation.
10	Install center and rear sections of lower engine compartment lining.	Model 213, 238 with transmission 725.0 with Code M005 (Vehicles with 4MATIC-/all wheel drive)	AR61.20-P-1105LWE
		Model 205, 253 with transmission 725.0 with Code M005 (Vehicles with 4MATIC-/all wheel drive) Model 253 with transmission 724.2	AR61.20-P-1105LW

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Internal Extractor (203 589 03 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift Set (205 589 01 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Drift (221 589 04 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Extraction Tool (221 589 04 33 00)

Courtesy of MERCEDES-BENZ USA
