Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97FBB
Model 205
as of model year 2019
with code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
with code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
Control Unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| CAN B | Interior CAN | 10K |
| Code 241 | All-electric front passenger seat with memory (left) | 23E |
| Code 241 | All-electric front passenger seat with memory (left) | 19E |
| Code 241 | All-electric front passenger seat with memory (left) | 44E |
| Code 242 | All-electric front passenger seat with memory (right) | 23F |
| Code 242 | All-electric front passenger seat with memory (right) | 19F |
| Code 242 | All-electric front passenger seat with memory (right) | 44F |
| Code 401 | Seat climate control for driver and front passenger | 31C |
| Code 401 | Seat climate control for driver and front passenger | 50C |
| Code 873 | Seat heater for driver and front passenger | 34C |
| Code 873 | Seat heater for driver and front passenger | 53C |
| Code FA | CABRIOLET | 57D |
| Code FC | COUPE | 57C |
| Code L | LEFT-HAND DRIVE | 31D |
| Code L | LEFT-HAND DRIVE | 73G |
| Code L | LEFT-HAND DRIVE | 50D |
| Code R | RIGHT-HAND DRIVE | 31D |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 50D |

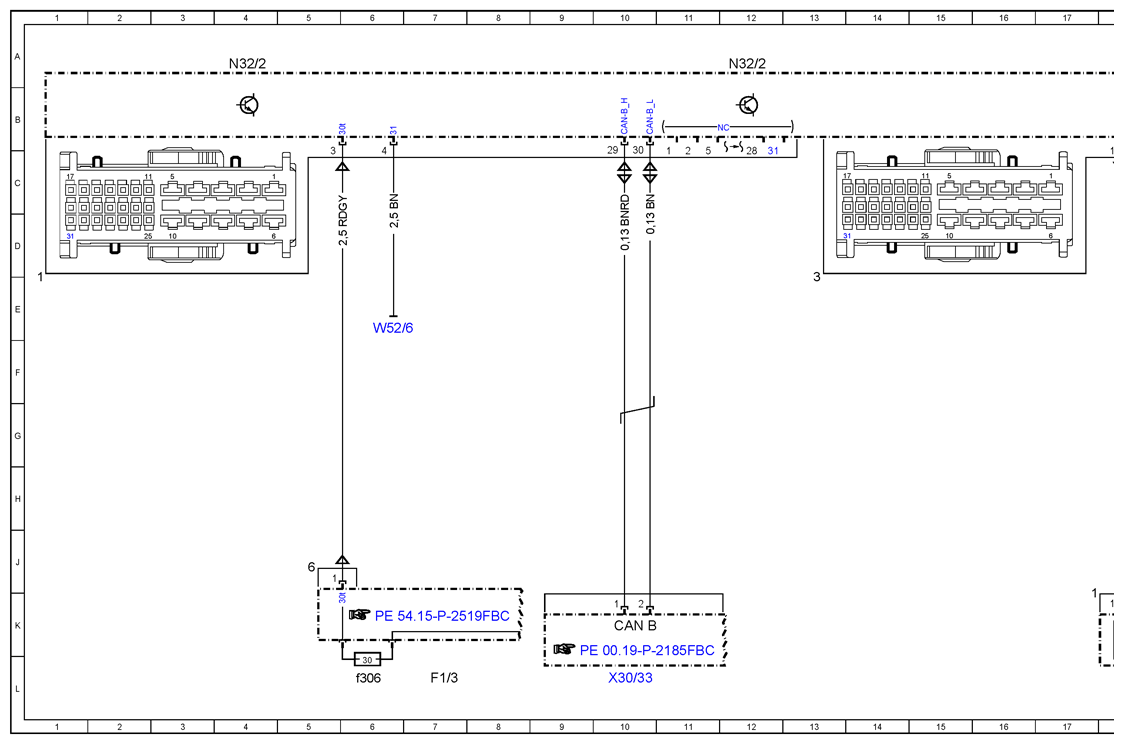

| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3f306 | Fuse 306 | 6L |
| M18/10 | Left front backrest seat ventilation motors | 51L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 51H |
| M18/11 | Right front seat cushion seat ventilation motors | 33L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 33H |
| M18/12 | Right front backrest seat ventilation motors | 52L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 51H |
| M18/9 | Left front seat cushion seat ventilation motors | 33L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 32H |

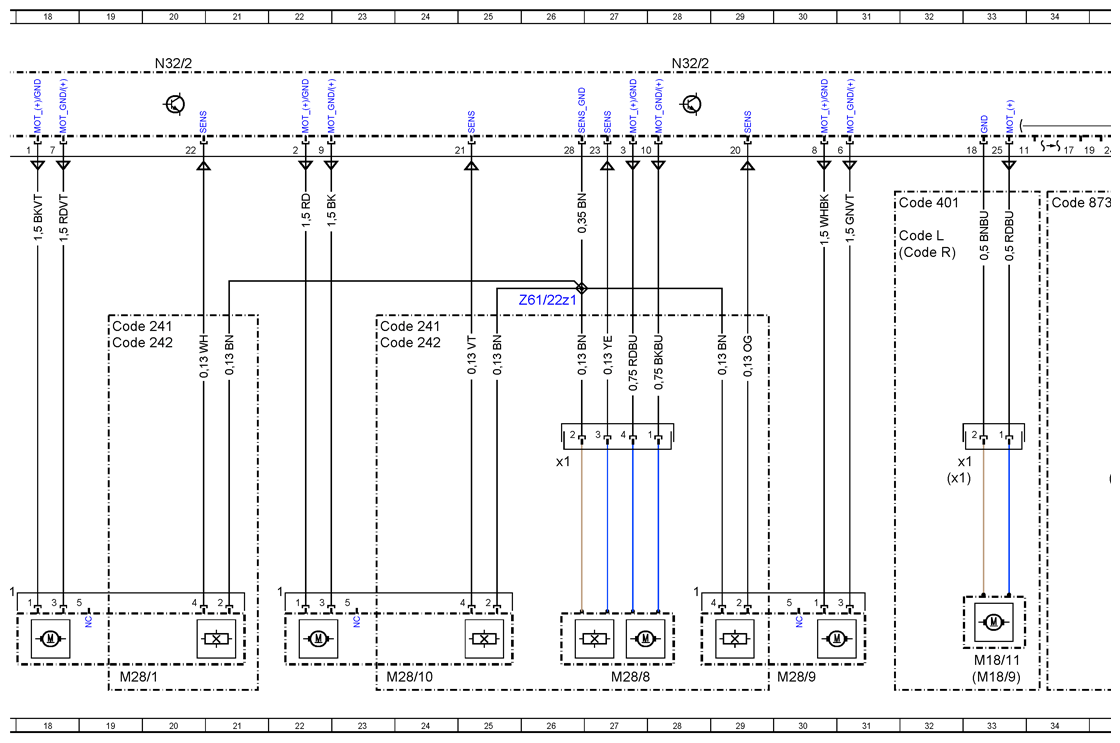

| M28/1 | Front passenger seat fore/aft adjustment motor | 19L |
| M28/10 | Front passenger seat height adjustment motor | 24L |

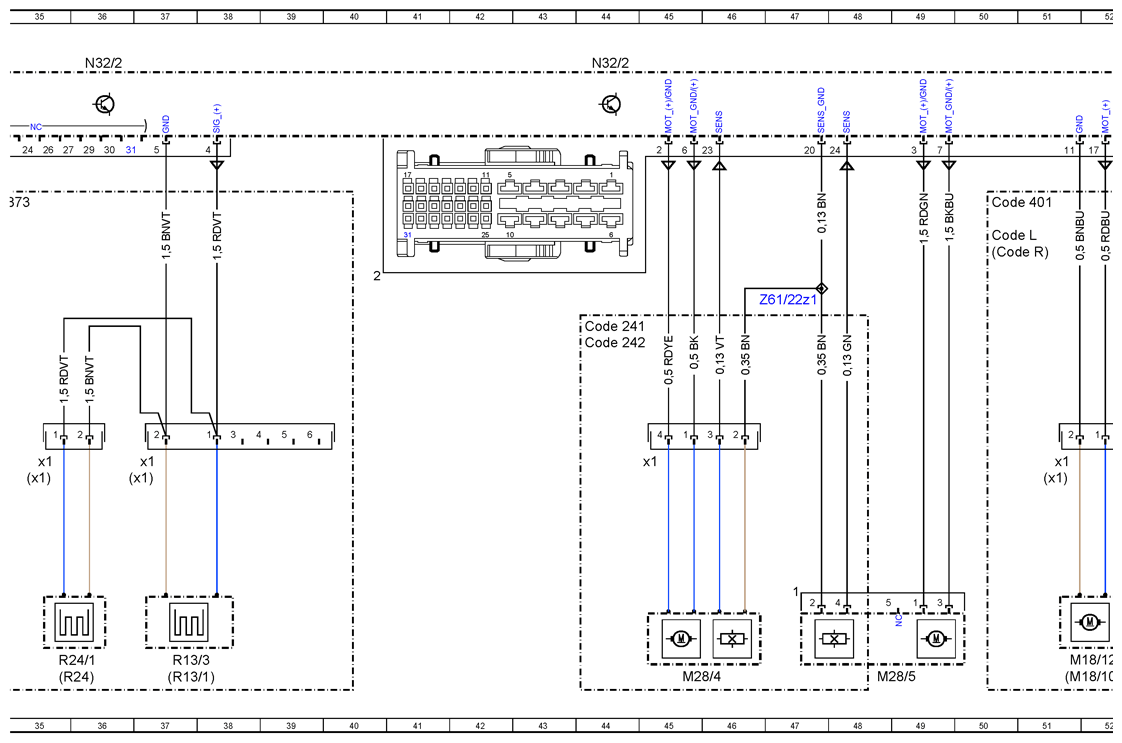

| M28/4 | Front passenger seat head restraint adjustment motor | 45L |
| M28/4x1 | Head restraint adjustment motor electrical connector, front passenger seat | 45H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 48L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 27L |
| M28/8x1 | Seat cushion length adjustment motor electrical connector, front passenger | 26H |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 30L |

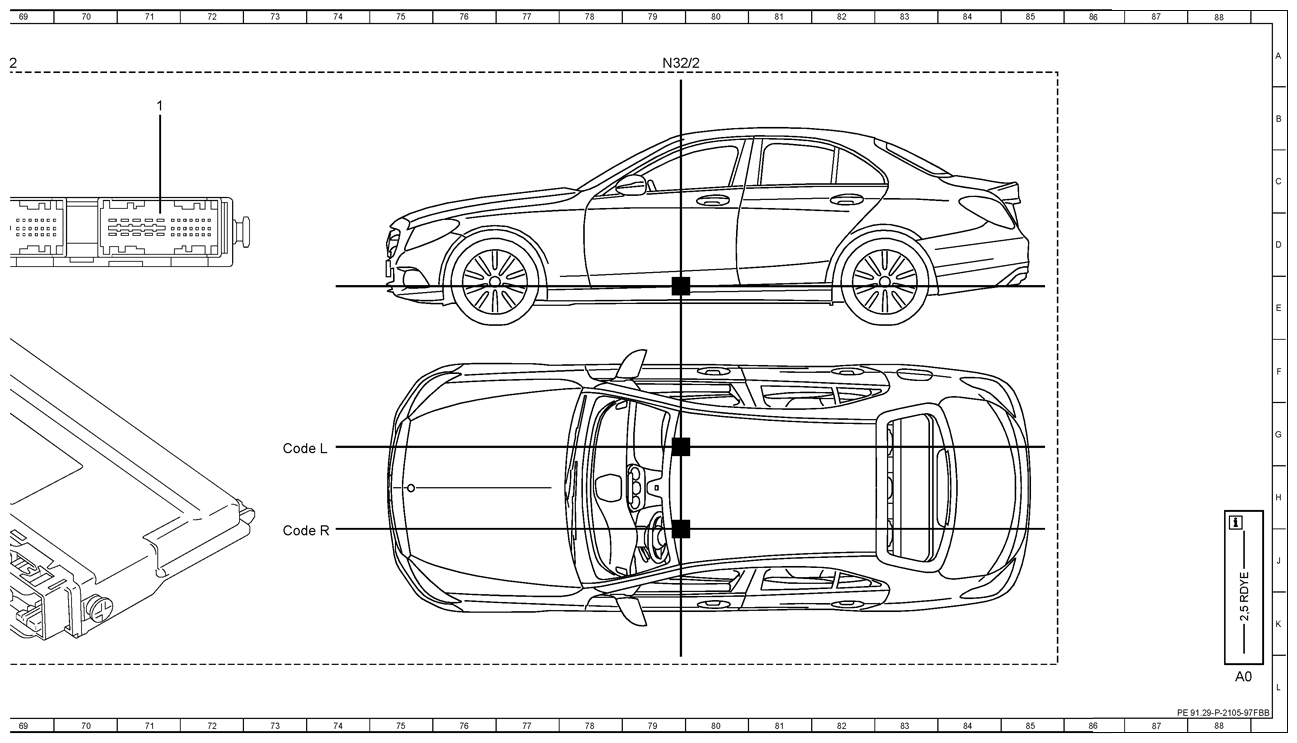

| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 12A |
| N32/2 | Front passenger seat control unit | 20A |
| N32/2 | Front passenger seat control unit | 28A |
| N32/2 | Front passenger seat control unit | 36A |
| N32/2 | Front passenger seat control unit | 44A |
| N32/2 | Front passenger seat control unit | 52A |
| N32/2 | Front passenger seat control unit | 60A |
| N32/2 | Front passenger seat control unit | 68A |
| N32/2 | Front passenger seat control unit | 79A |
| R13/1 | Left front seat cushion heater pad | 37L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 37H |
| R13/2 | Left front seat backrest heater pad | 54L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 53H |
| R13/3 | Right front seat cushion heater pad | 37L |
| R13/3x1 | Right front seat cushion heater pad electrical connector | 37H |
| R13/4 | Right front seat backrest heater pad | 54L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 54H |
| R24 | Adjustable seat cushion length heater pad, left front seat | 35L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 35L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 35H |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 35H |

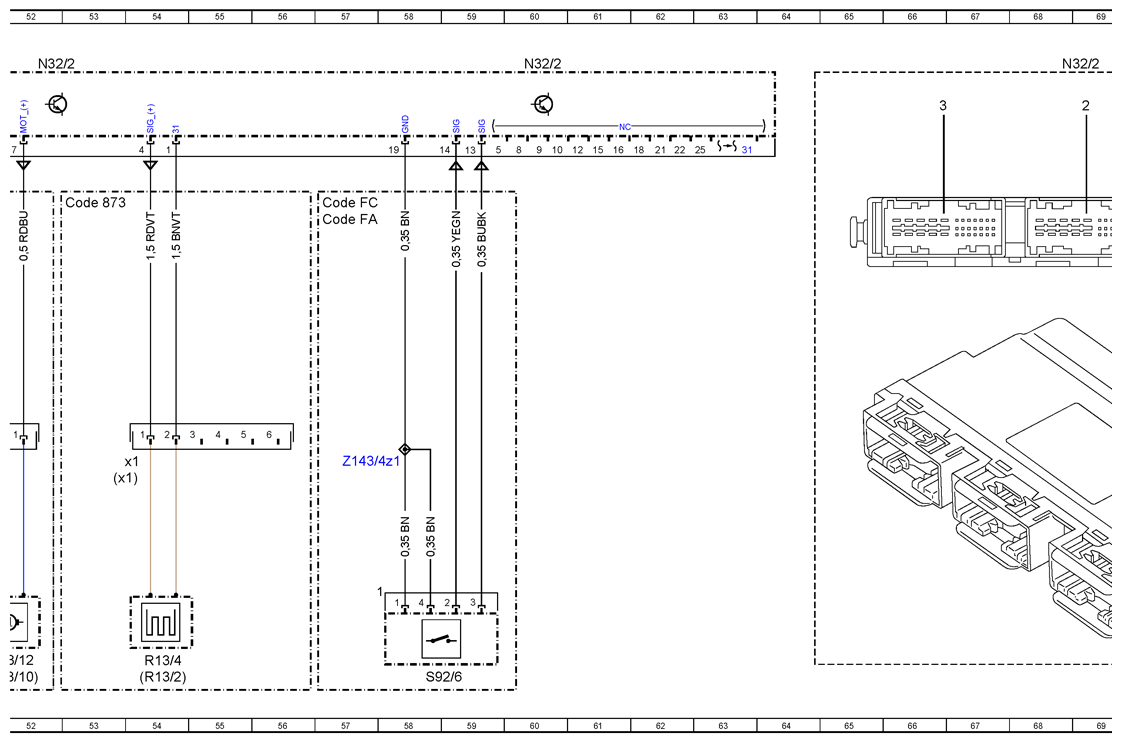

| S92/6 | Right backrest release/inclination microswitch | 58L |
| W52/6 | Right center longitudinal member ground point | 6E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
| Z143/4z1 | Right backrest release microswitch circuit 31 connector sleeve | 57G |
| Z61/22z1 | Left rear seat heater ground line connector sleeve | 26E |
| Z61/22z1 | Left rear seat heater ground line connector sleeve | 47E |
