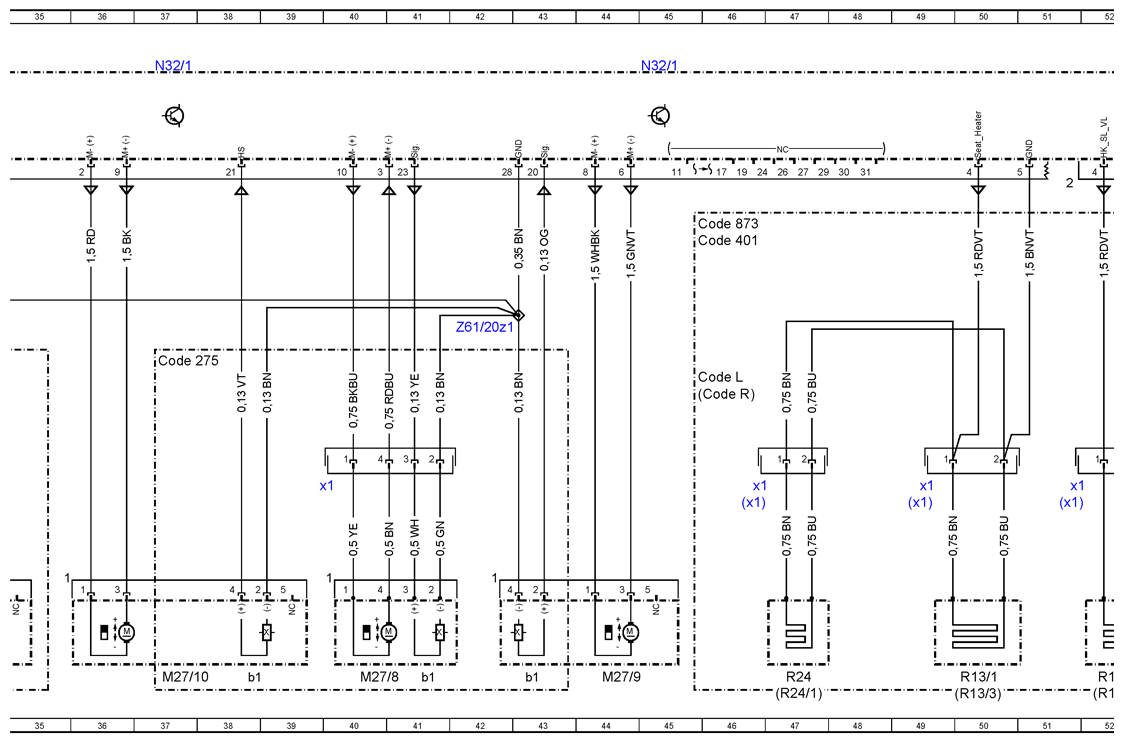

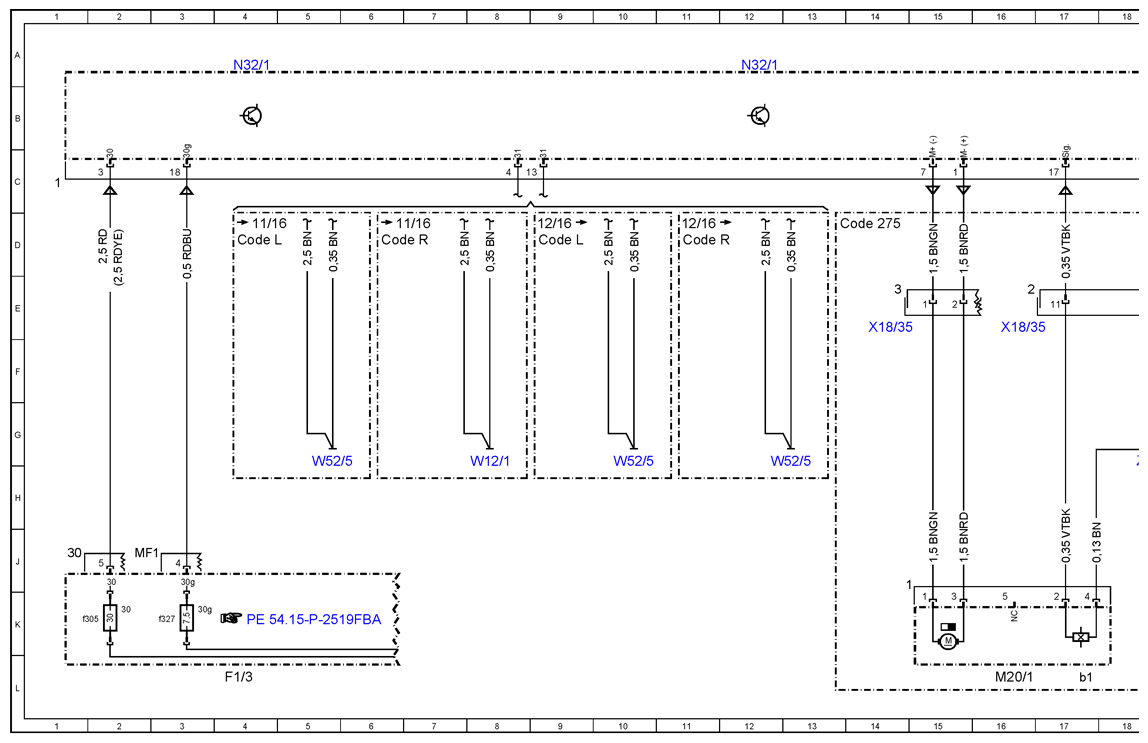

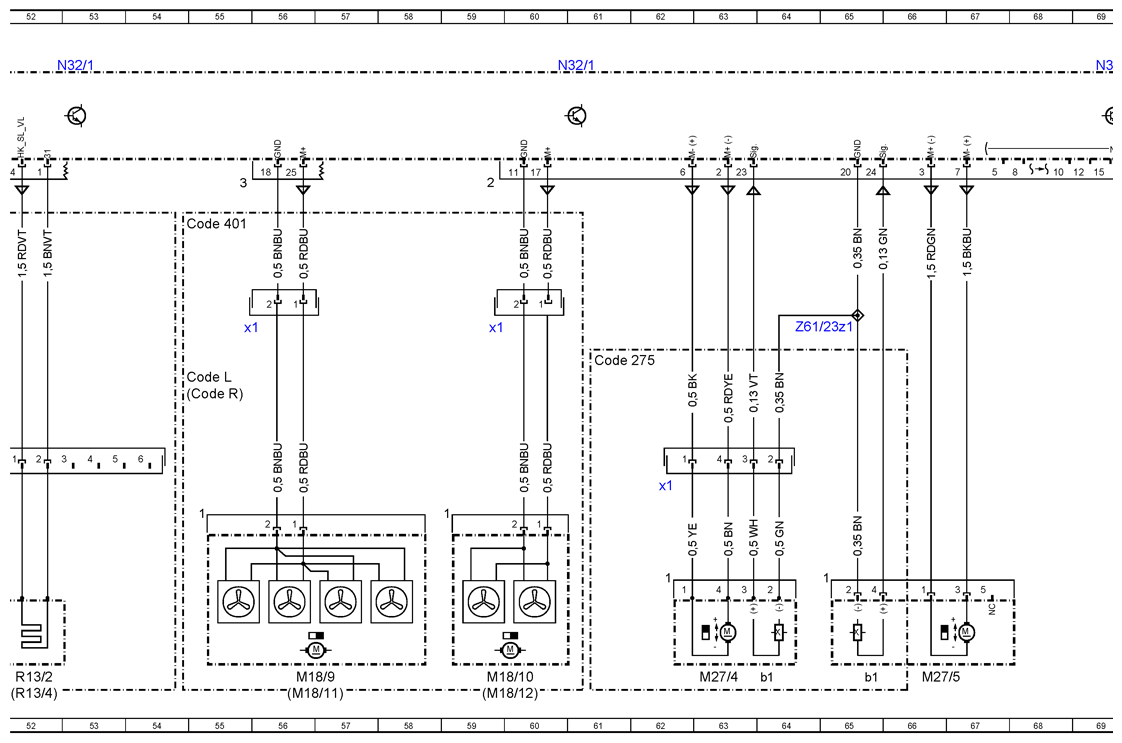

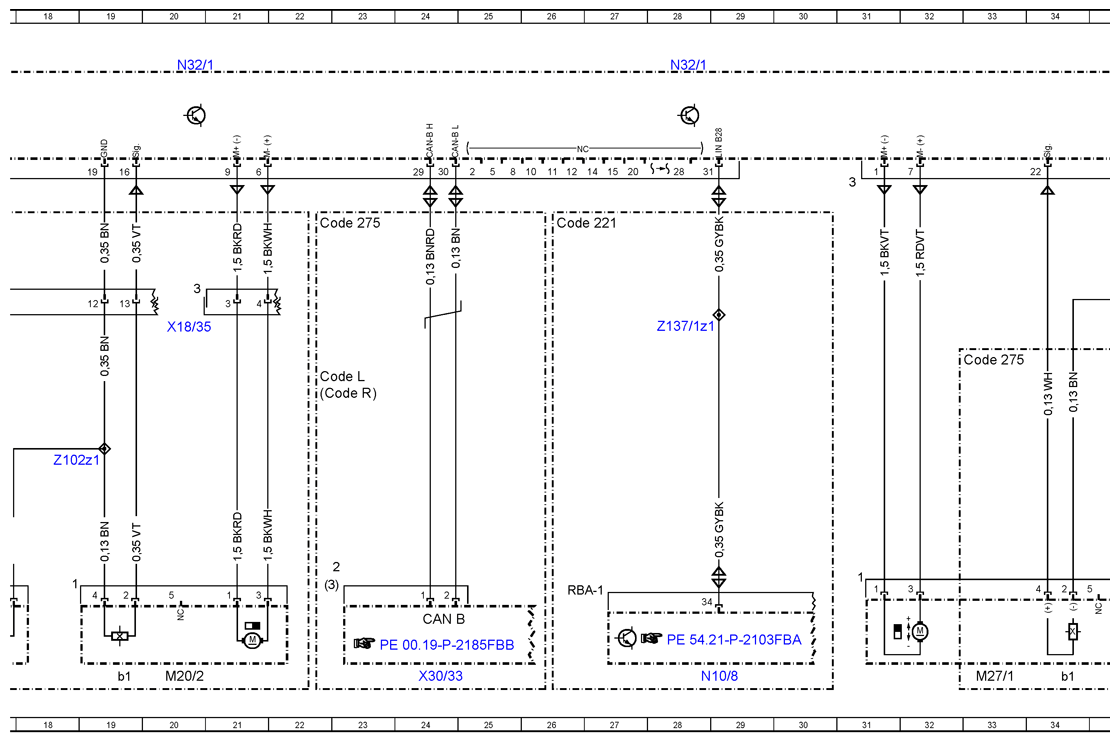

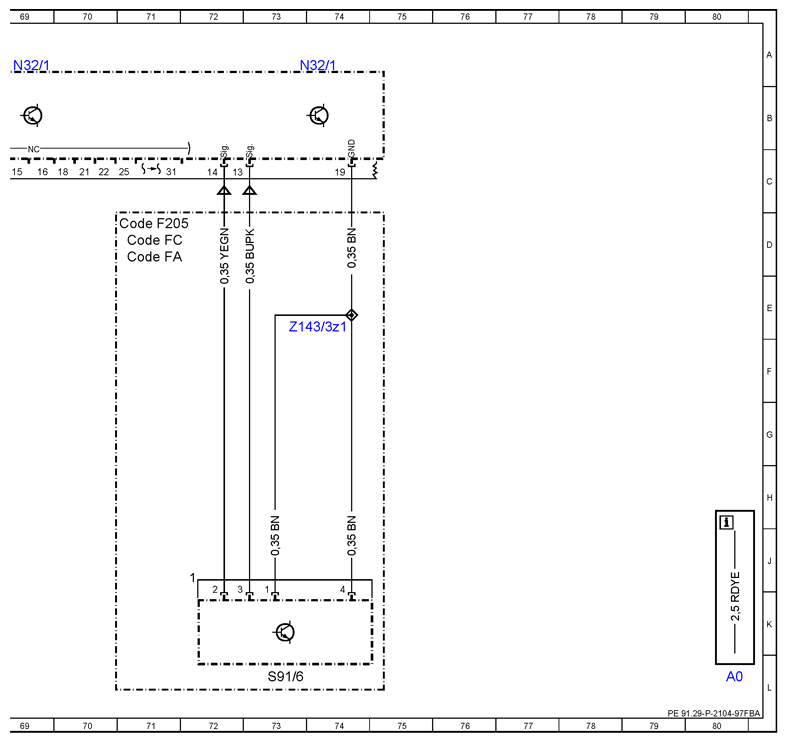

Wiring Diagram Of Driver-Side Seat Control Module - PE91.29-P-2104-97FBA
Model 205
up to model year 2019
with code 221 (Electrically Adjustable Left Driver Seat)
with code 275 (Memory Package (Drivers Seat)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| CAN B | Interior CAN | 24K |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 26D |
| Code 275 | Memory package | 13D |
| Code 275 | Memory package | 22D |
| Code 275 | Memory package | 33F |
| Code 275 | Memory package | 37F |
| Code 275 | Memory package | 61F |
| Code 401 | Seat climate control for driver and front passenger | 45D |
| Code 401 | Seat climate control for driver and front passenger | 54D |
| Code 873 | Seat heater for driver and front passenger | 45D |
| Code F205 | Model SERIES 205 | 71D |
| Code FA | CABRIOLET | 71D |
| Code FC | COUPE | 71D |
| Code L | LEFT-HAND DRIVE | 22F |
| Code L | LEFT-HAND DRIVE | 54F |
| Code L | LEFT-HAND DRIVE | 45F |
| Code L | LEFT-HAND DRIVE | 4D |
| Code L | LEFT-HAND DRIVE | 9D |
| Code R | RIGHT-HAND DRIVE | 22F |
| Code R | RIGHT-HAND DRIVE | 45F |
| Code R | RIGHT-HAND DRIVE | 54F |
| Code R | RIGHT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 6D |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f305 | Fuse 305 | 1K |
| F1/3f327 | Fuse 327 | 3K |
| M18/10 | Left front backrest seat ventilation motors | 59L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 59E |
| M18/11 | Right front seat cushion seat ventilation motors | 56L |
| M18/12 | Right front backrest seat ventilation motors | 59L |
| M18/9 | Left front seat cushion seat ventilation motors | 56L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 55E |
| M20/1 | Steering column in/out adjustment motor | 16L |
| M20/1b1 | Steering column in/out Hall sensor | 17L |
| M20/2 | Steering column up/down adjustment motor | 20L |
| M20/2b1 | Steering column up/down Hall sensor | 19L |
| M27/1 | Driver seat fore/aft adjustment motor | 33L |
| M27/10 | Driver seat height adjustment motor | 37L |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor | 38L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 34L |
| M27/4 | Driver seat head restraint adjustment motor | 63L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 64L |
| M27/4x1 | Head restraint adjustment motor electrical connector, driver seat | 62H |
| M27/5 | Driver seat backrest inclination adjustment motor | 66L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 65L |
| M27/8 | Seat cushion length adjustment motor, driver seat | 40L |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 41L |
| M27/8x1 | Seat cushion length adjustment motor electrical connector, driver seat | 40H |
| M27/9 | Seat inclination adjustment motor, driver seat | 44L |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 43L |
| N10/8 | Rear SAM control unit | 29L |
| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 28A |
| N32/1 | Driver seat control unit | 37A |
| N32/1 | Driver seat control unit | 45A |
| N32/1 | Driver seat control unit | 53A |
| N32/1 | Driver seat control unit | 60A |
| N32/1 | Driver seat control unit | 69A |
| N32/1 | Driver seat control unit | 74A |
| R13/1 | Left front seat cushion heater pad | 50L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 49H |
| R13/2 | Left front seat backrest heater pad | 52L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 51H |
| R13/3 | Right front seat cushion heater pad | 50L |
| R13/3x1 | Right front seat cushion heater pad electrical connector | 49H |
| R13/4 | Right front seat backrest heater pad | 52L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 51H |
| R24 | Adjustable seat cushion length heater pad, left front seat | 47L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 47L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 46H |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 46H |
| S91/6 | Left backrest release/inclination microswitch | 73L |
| W12/1 | Right center console ground point | 8G |
| W52/5 | Left center longitudinal member ground point | 5G |
| W52/5 | Left center longitudinal member ground point | 10G |
| W52/5 | Left center longitudinal member ground point | 12G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 14E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 16E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 20E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 24L |
| Z102z1 | Steering column adjustment motor connector sleeve | 18G |
| Z137/1z1 | Connector sleeve, heater LIN | 28E |
| Z143/3z1 | Left backrest release microswitch circuit 31 connector sleeve | 74E |
| Z61/20z1 | Left front seat height adjustment Hall sensor ground line connector sleeve | 42E |
| Z61/23z1 | Right rear seat heater ground line connector sleeve | 65E |
