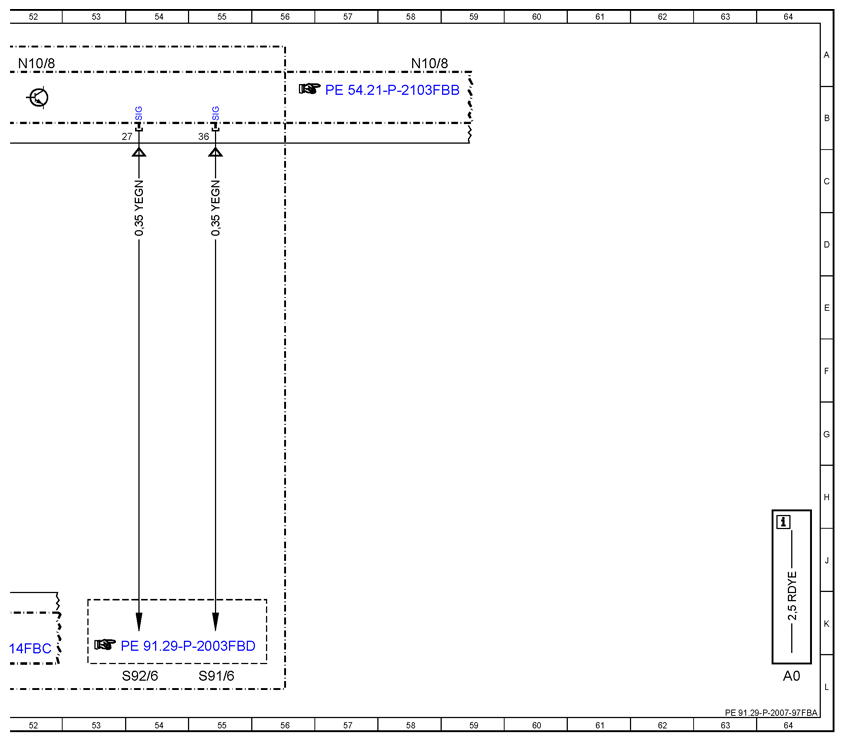

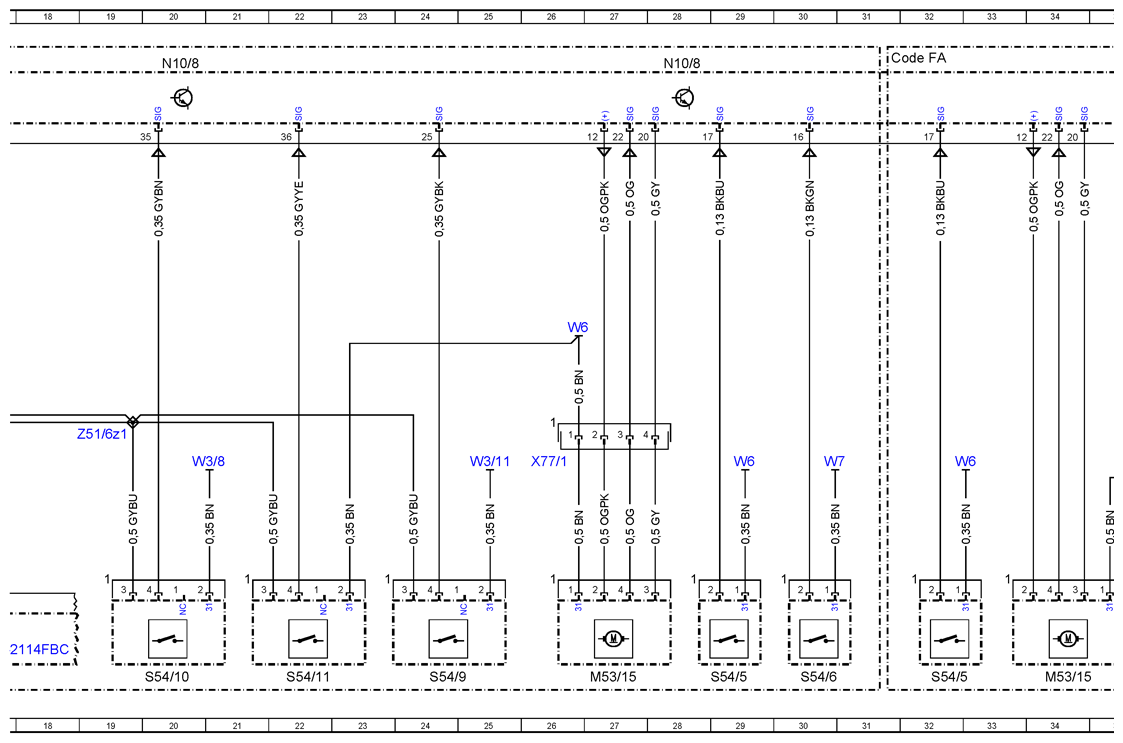

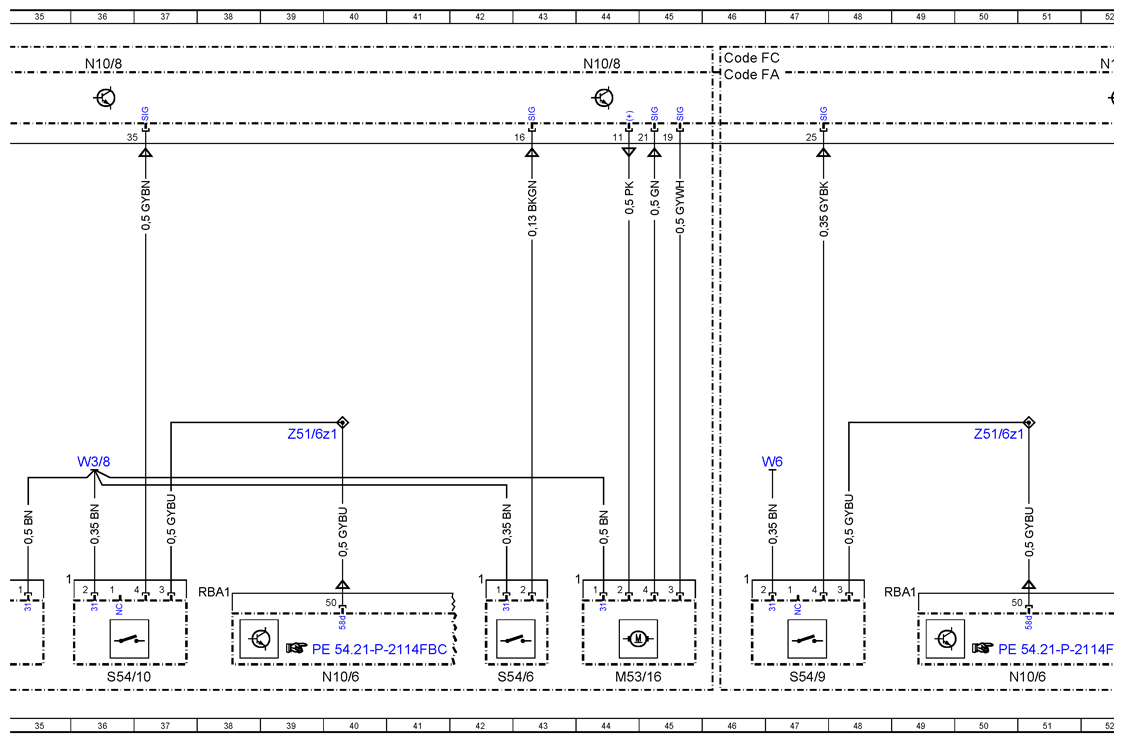

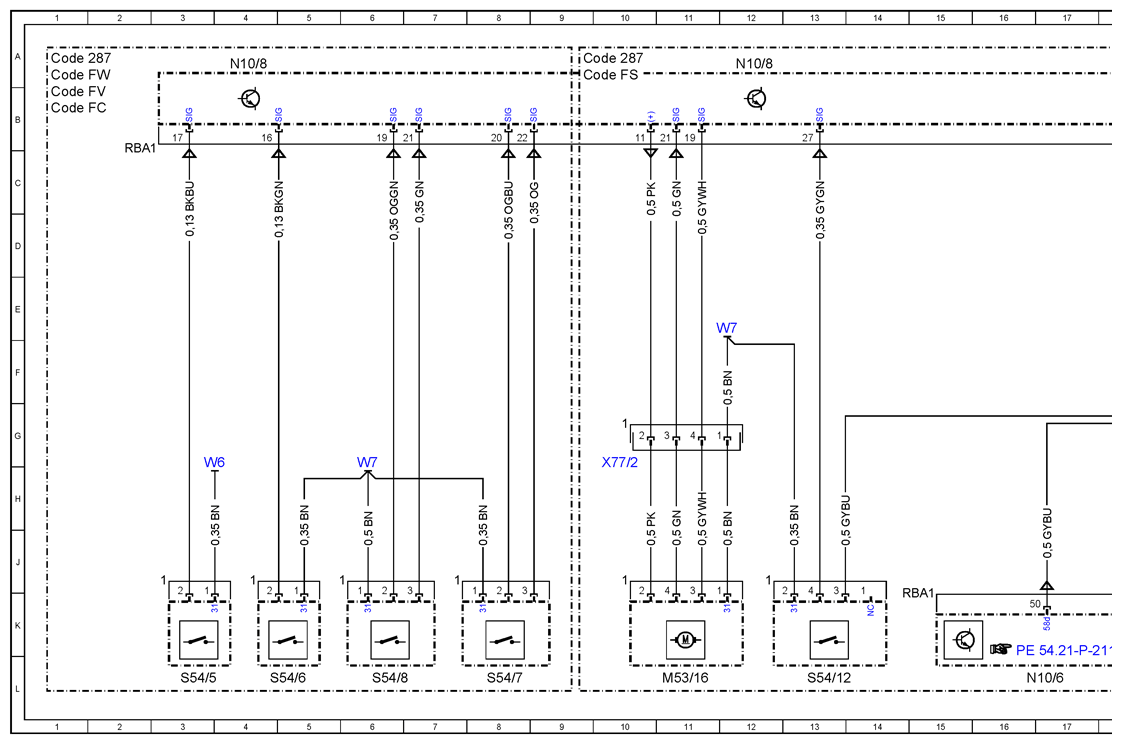

Wiring Diagram For Rear Seat Adjustment/Release - PE91.29-P-2007-97FBA
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| Code 287 | Through-loading feature | 1A |
| Code 287 | Through-loading feature | 9A |
| Code FA | CABRIOLET | 31A |
| Code FA | CABRIOLET | 46A |
| Code FC | COUPE | 1B |
| Code FC | COUPE | 46A |
| Code FS | STATION WAGON | 9A |
| Code FV | LONG SEDAN | 1B |
| Code FW | SEDAN | 1A |
| M53/15 | Left rear backrest release actuator | 27L |
| M53/15 | Left rear backrest release actuator | 34L |
| M53/16 | Right rear backrest release actuator | 11L |
| M53/16 | Right rear backrest release actuator | 44L |
| N10/6 | Front SAM control unit | 17L |
| N10/6 | Front SAM control unit | 40L |
| N10/6 | Front SAM control unit | 51L |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 58A |
| S54/10 | Right luggage compartment rear backrest release button | 20L |
| S54/10 | Right luggage compartment rear backrest release button | 36L |
| S54/11 | Left rear backrest release button | 22L |
| S54/12 | Right rear backrest release button | 13L |
| S54/5 | Left rear backrest inclination switch | 32L |
| S54/5 | Left rear backrest inclination switch | 3L |
| S54/5 | Left rear backrest inclination switch | 29L |
| S54/6 | Right rear backrest inclination switch | 5L |
| S54/6 | Right rear backrest inclination switch | 30L |
| S54/6 | Right rear backrest inclination switch | 42L |
| S54/7 | Left rear backrest lock switch | 8L |
| S54/8 | Right rear backrest lock switch | 6L |
| S54/9 | Left luggage compartment rear backrest release button | 24L |
| S54/9 | Left luggage compartment rear backrest release button | 47L |
| S91/6 | Left backrest release/inclination microswitch | 55L |
| S92/6 | Right backrest release/inclination microswitch | 54L |
| W3/11 | Left rear wheel well ground point | 25H |
| W3/8 | Right rear wheel well ground point | 20H |
| W3/8 | Right rear wheel well ground point | 36H |
| W6 | Left wheel arch trunk ground point | 32H |
| W6 | Left wheel arch trunk ground point | 3H |
| W6 | Left wheel arch trunk ground point | 29H |
| W6 | Left wheel arch trunk ground point | 26E |
| W6 | Left wheel arch trunk ground point | 47H |
| W7 | Right wheelhouse trunk ground point | 6H |
| W7 | Right wheelhouse trunk ground point | 30H |
| W7 | Right wheelhouse trunk ground point | 12E |
| X77/1 | Left rear backrest release actuator electrical connector | 26H |
| X77/2 | Right rear backrest release actuator electrical connector | 10H |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 19G |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 39G |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 50G |
