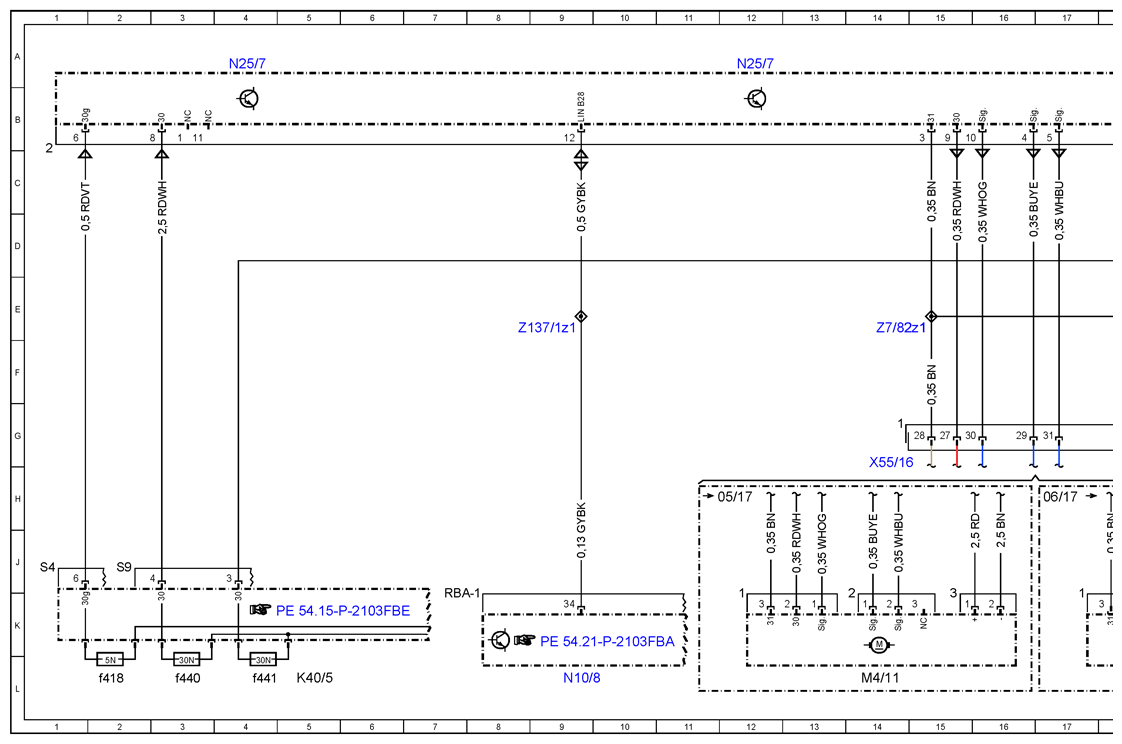

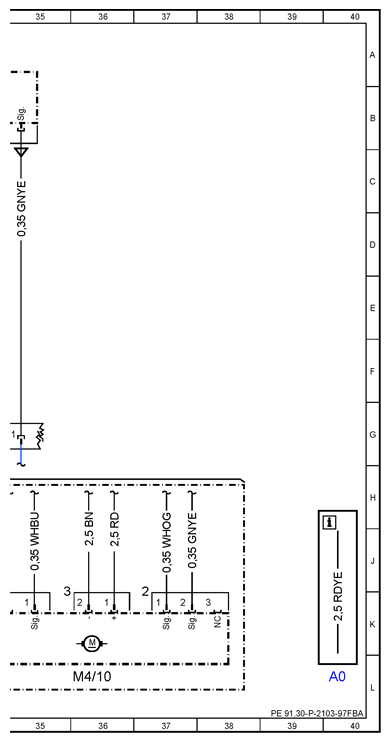

Wiring Diagram For AIRSCARF® Control Unit - PE91.30-P-2103-97FBA
Model 205.4
up to model year 2019
with code 403 (Heating In Head Area)
Control Unit_N25/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f418 | Fuse 418 | 2L |
| K40/5f440 | Fuse 440 | 3L |
| K40/5f441 | Fuse 441 | 4L |
| M4/10 | Left AIRSCARF® fan motor | 30L |
| M4/10 | Left AIRSCARF® fan motor | 36L |
| M4/11 | Right AIRSCARF® fan motor | 14L |
| M4/11 | Right AIRSCARF fan motor | 19L |
| N10/8 | Rear SAM control unit | 9L |
| N25/7 | AIRSCARF® control unit | 4A |
| N25/7 | AIRSCARF® control unit | 12A |
| N25/7 | AIRSCARF® control unit | 20A |
| N25/7 | AIRSCARF® control unit | 28A |
| N25/7 | AIRSCARF® control unit | 34A |
| W15/17 | Additional battery ground point | 23L |
| W52/5 | Left center longitudinal member ground point | 27L |
| W52/6 | Right center longitudinal member ground point | 26L |
| X55/15 | Left seat separation point | 31H |
| X55/16 | Right seat separation point | 14H |
| Z137/1z1 | Connector sleeve, heater LIN | 9E |
| Z7/82z1 | Circuit 31 connector sleeve | 14E |
