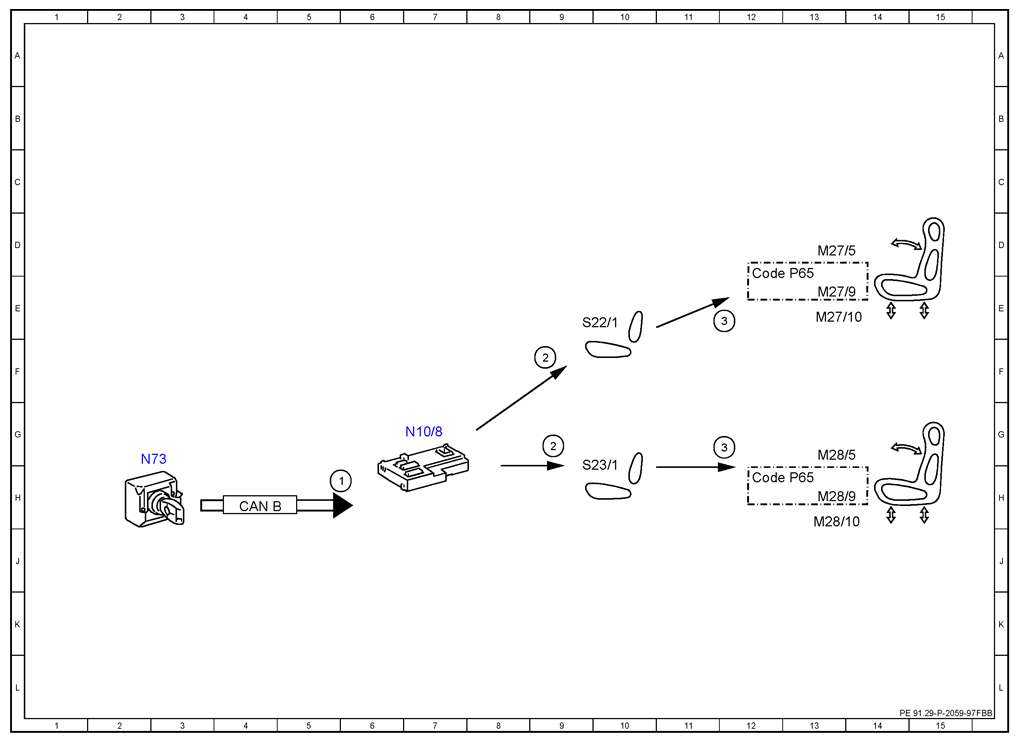

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97FBB
Model 205, 253
except code 221 (Electrically Adjustable Left Driver Seat)
except code 222 (Electrically Adjustable Right Driver Seat)
except code 275 (Memory Package (Drivers Seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5H |
| 2 | Power supply, status ON | 9G |
| 2 | Power supply, status ON | 9F |
| 3 | Seat adjustment motor, actuation | 12G |
| 3 | Seat adjustment motor, actuation | 12E |
| CAN B | Interior CAN | 4H |
| Code P65 | Seating comfort package | 12H |
| Code P65 | Seating comfort package | 12E |
| M27/10 | Driver seat height adjustment motor | 13E |
| M27/5 | Driver seat backrest inclination adjustment motor | 13D |
| M27/9 | Seat inclination adjustment motor, driver seat | 13E |
| M28/10 | Front passenger seat height adjustment motor | 13H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 13G |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 13H |
| N10/8 | Rear SAM control unit | 7G |
| N73 | Electronic ignition switch control unit | 2G |
| S22/1 | Driver seat partially electric seat adjustment switch | 9E |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 9H |
