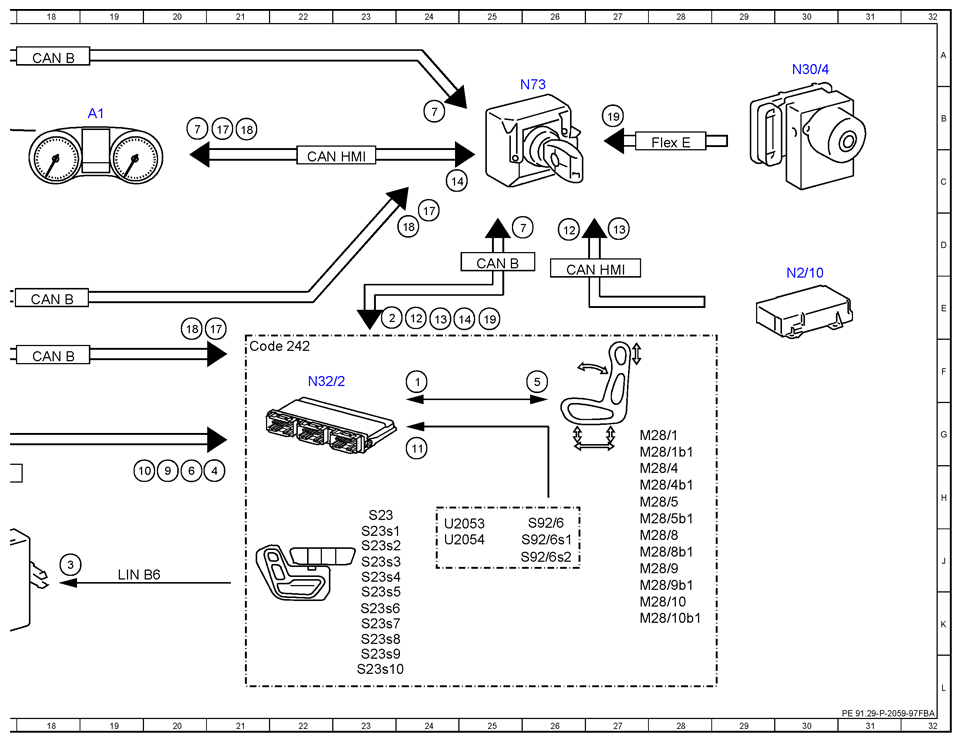

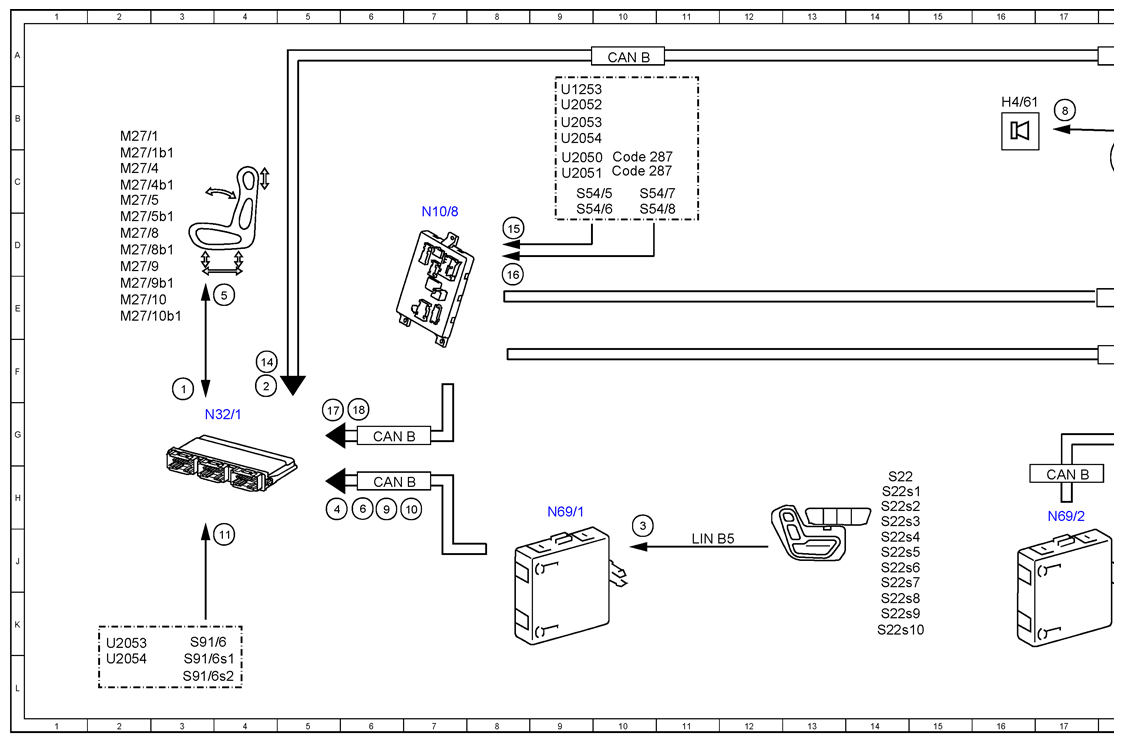

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97FBA
Model 205, 253
with code 275 (Memory Package (Drivers Seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Hall sensors, signal | 3F |
| 1 | Hall sensors, signal | 24F |
| 10 | Door rotary tumbler switch, status | 7H |
| 10 | Door rotary tumbler switch, status | 19G |
| 11 | Backrest release/inclination microswitch, status | 24G |
| 11 | Backrest release/inclination microswitch, status | 3J |
| 12 | Front passenger seat occupied recognition, status | 26D |
| 12 | Front passenger seat occupied recognition, status | 24E |
| 13 | Seat belt buckle switch, status | 27D |
| 13 | Seat belt buckle switch, status | 24E |
| 14 | Vehicle speed, signal | 4F |
| 14 | Vehicle speed, signal | 24C |
| 14 | Vehicle speed, signal | 25E |
| 15 | Rear passenger compartment backrest inclination switch, status | 8C |
| 16 | Rear backrest lock switch, status | 8E |
| 17 | Rear backrest locking, status | 5G |
| 17 | Rear backrest locking, status | 21B |
| 17 | Rear backrest locking, status | 24D |
| 17 | Rear backrest locking, status | 21E |
| 18 | Backrest inclination in rear, status | 6G |
| 18 | Backrest inclination in rear, status | 21B |
| 18 | Backrest inclination in rear, status | 24D |
| 18 | Backrest inclination in rear, status | 20E |
| 19 | Adjust PRE-SAFE®, request | 27B |
| 19 | Adjust PRE-SAFE®, request | 25E |
| 2 | Circuit 15, status | 4F |
| 2 | Circuit 15, status | 23E |
| 3 | Seat adjustment switch group, status | 10J |
| 3 | Seat adjustment switch group, status | 18J |
| 4 | Manual adjustment, request | 20H |
| 4 | Manual adjustment, request | 5H |
| 5 | Seat adjustment motor, actuation | 4E |
| 5 | Seat adjustment motor, actuation | 26F |
| 6 | Store memory position, request | 6H |
| 6 | Store memory position, request | 20H |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 20B |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 25D |
| 7 | Acknowledgment tone after memory positions stored successfully, request | 24B |
| 8 | Speaker, actuation | 17B |
| 9 | Adopt memory position, request | 6H |
| 9 | Adopt memory position, request | 20H |
| A1 | Instrument cluster | 19B |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 25D |
| CAN B | Interior CAN | 18A |
| CAN B | Interior CAN | 10A |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18F |
| CAN HMI | User interface CAN | 22C |
| CAN HMI | User interface CAN | 26D |
| Code 242 | All-electric front passenger seat with memory (right) | 21F |
| Code 287 | Through-loading feature | 10C |
| Code 287 | Through-loading feature | 10C |
| Flex E | Chassis FlexRay | 28B |
| H4/61 | Instrument cluster speaker | 16B |
| LIN B5 | Left front door LIN | 11J |
| LIN B6 | Right front door LIN | 19J |
| M27/1 | Driver seat fore/aft adjustment motor | 2B |
| M27/10 | Driver seat height adjustment motor | 2E |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 2E |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 2C |
| M27/4 | Driver seat head restraint adjustment motor | 2C |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 2C |
| M27/5 | Driver seat backrest inclination adjustment motor | 2C |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 2D |
| M27/8 | Seat cushion length adjustment motor, driver seat | 2D |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 2D |
| M27/9 | Seat inclination adjustment motor, driver seat | 2D |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 2E |
| M28/1 | Front passenger seat fore/aft adjustment motor | 27G |
| M28/10 | Front passenger seat height adjustment motor | 27K |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 27K |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 27G |
| M28/4 | Front passenger seat head restraint adjustment motor | 27H |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 27H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 27H |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 27H |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 27J |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 27J |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 27J |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 27J |
| N10/8 | Rear SAM control unit | 7D |
| N2/10 | Supplemental restraint system control unit | 30E |
| N30/4 | Electronic Stability Program control unit | 30A |
| N32/1 | Driver seat control unit | 3G |
| N32/2 | Front passenger seat control unit | 22F |
| N69/1 | Left front door control unit | 9H |
| N69/2 | Right front door control unit | 17H |
| N73 | Electronic ignition switch control unit | 25B |
| S22 | Left front seat adjustment switch group | 14H |
| S22s1 | Left front head restraint adjustment switch | 14H |
| S22s10 | Left front memory 3 switch | 14K |
| S22s2 | Left front seat inclination adjustment switch | 14H |
| S22s3 | Left front seat fore/aft adjustment switch | 14H |
| S22s4 | Left front seat height adjustment switch | 14J |
| S22s5 | Left front backrest adjustment switch | 14J |
| S22s6 | Left front seat cushion length switch | 14J |
| S22s7 | Left front memory function switch | 14J |
| S22s8 | Left front memory 1 switch | 14K |
| S22s9 | Left front memory 2 switch | 14K |
| S23 | Right front seat adjustment switch group | 23H |
| S23s1 | Right front head restraint adjustment switch | 23J |
| S23s10 | Right front memory 3 switch | 23L |
| S23s2 | Right front seat inclination adjustment switch | 23J |
| S23s3 | Right front seat fore/aft adjustment switch | 23J |
| S23s4 | Right front seat height adjustment switch | 23J |
| S23s5 | Right front backrest adjustment switch | 23K |
| S23s6 | Right front seat cushion length switch | 23K |
| S23s7 | Right front memory function switch | 23K |
| S23s8 | Right front memory 1 switch | 23K |
| S23s9 | Right front memory 2 switch | 23L |
| S54/5 | Left rear backrest inclination switch | 9C |
| S54/6 | Right rear backrest inclination switch | 9D |
| S54/7 | Left rear backrest lock switch | 10C |
| S54/8 | Right rear backrest lock switch | 10D |
| S91/6 | Left backrest release/inclination microswitch | 3K |
| S91/6s1 | Left backrest release microswitch | 3L |
| S91/6s2 | Left backrest inclination microswitch | 3L |
| S92/6 | Right backrest release/inclination microswitch | 26H |
| S92/6s1 | Right backrest release microswitch | 26J |
| S92/6s2 | Right backrest inclination microswitch | 26J |
| U1253 | Valid for Model 253 | 9B |
| U2050 | Valid for Model 205.0 | 9C |
| U2051 | Valid for Model 205.1 | 9C |
| U2052 | Valid for Model 205.2 | 9B |
| U2053 | Valid for Model 205.3 | 9B |
| U2053 | Valid for Model 205.3 | 24H |
| U2053 | Valid for Model 205.3 | 2K |
| U2054 | Valid for Model 205.4 | 9B |
| U2054 | Valid for Model 205.4 | 24J |
| U2054 | Valid for Model 205.4 | 2L |
