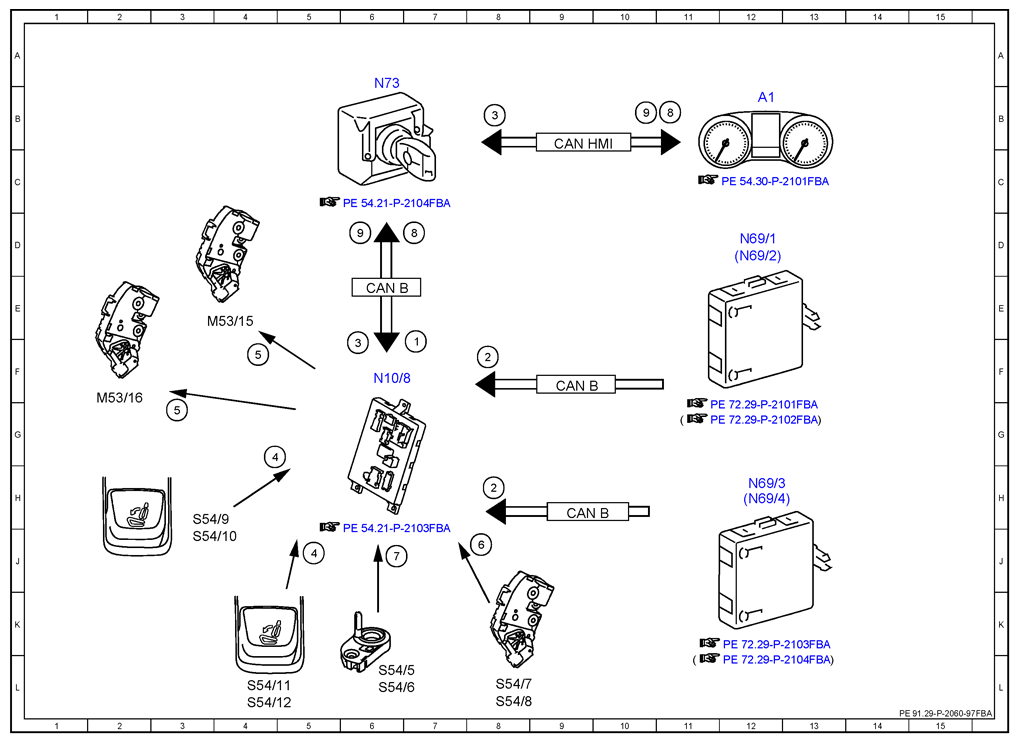

Electrical Function Schematic For Rear Passenger Compartment Backrest Release - PE91.29-P-2060-97FBA
Model 205.2/4, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 7F |
| 2 | Door rotary tumbler switch, status | 8F |
| 2 | Door rotary tumbler switch, status | 8H |
| 3 | Vehicle speed, signal | 6F |
| 3 | Vehicle speed, signal | 8B |
| 4 | Rear backrest release button, status | 5J |
| 4 | Rear backrest release button, status | 4G |
| 5 | Rear backrest release actuator, actuation | 4F |
| 5 | Rear backrest release actuator, actuation | 3G |
| 6 | Rear backrest lock switch, status | 8J |
| 7 | Rear passenger compartment backrest inclination switch, status | 6J |
| 8 | Rear backrest locking, status | 7D |
| 8 | Rear backrest locking, status | 11B |
| 9 | Backrest inclination in rear, status | 6D |
| 9 | Backrest inclination in rear, status | 10B |
| A1 | Instrument cluster | 12B |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 9H |
| CAN HMI | User interface CAN | 9B |
| M53/15 | Left rear backrest release actuator | 3E |
| M53/16 | Right rear backrest release actuator | 2F |
| N10/8 | Rear SAM control unit | 6F |
| N69/1 | Left front door control unit | 12D |
| N69/2 | Right front door control unit | 12D |
| N69/3 | Left rear door control unit | 12H |
| N69/4 | Right rear door control unit | 12H |
| N73 | Electronic ignition switch control unit | 6B |
| S54/10 | Right luggage compartment rear backrest release button | 3J |
| S54/11 | Left rear backrest release button | 4L |
| S54/12 | Right rear backrest release button | 4L |
| S54/5 | Left rear backrest inclination switch | 6L |
| S54/6 | Right rear backrest inclination switch | 6L |
| S54/7 | Left rear backrest lock switch | 8L |
| S54/8 | Right rear backrest lock switch | 8L |
| S54/9 | Left luggage compartment rear backrest release button | 3H |
