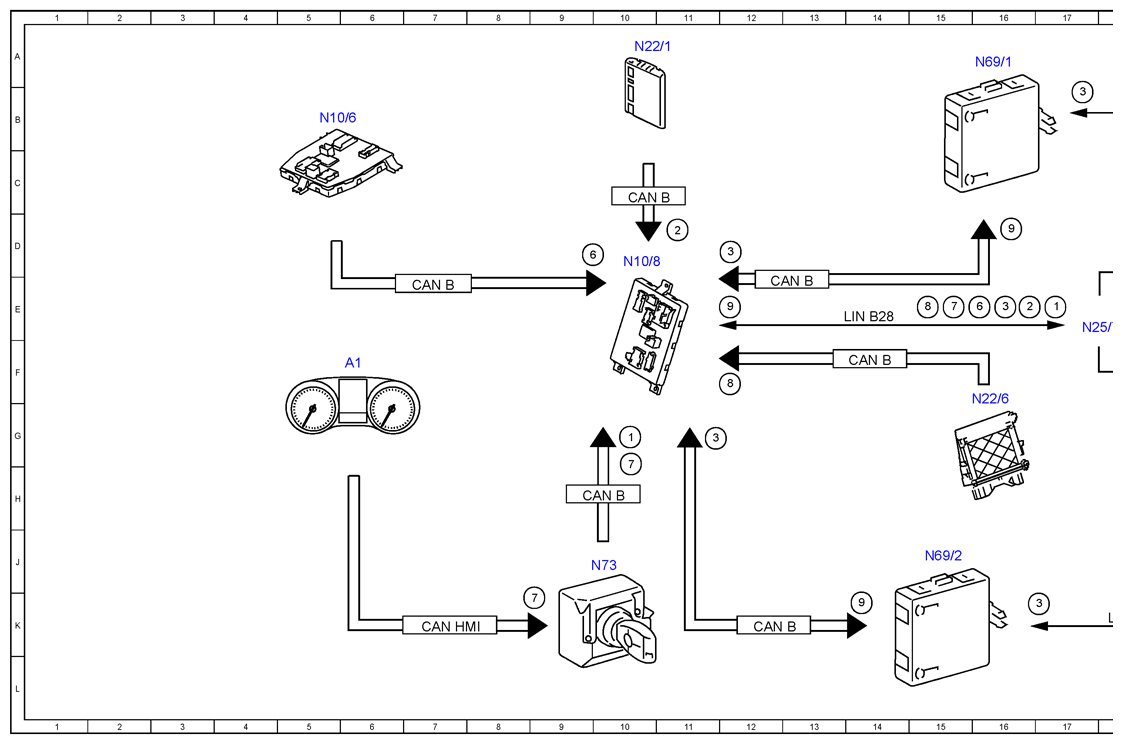

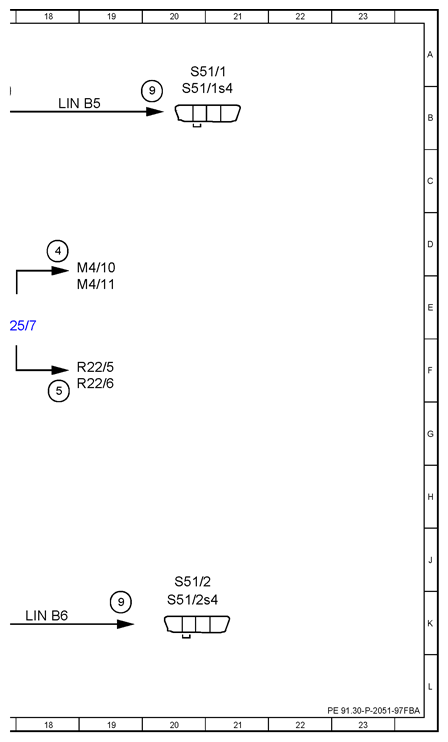

Electrical Function Schematic For AIRSCARF® - PE91.30-P-2051-97FBA
Model 205.4
with code 403 (Heating In Head Area)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10G |
| 1 | Circuit 15, status | 17E |
| 2 | Interior temperature, signal | 11D |
| 2 | Interior temperature, signal | 16E |
| 3 | AIRSCARF® switch, status | 17B |
| 3 | AIRSCARF® switch, status | 16E |
| 3 | AIRSCARF® switch, status | 12D |
| 3 | AIRSCARF® switch, status | 11G |
| 3 | AIRSCARF® switch, status | 17K |
| 4 | AIRSCARF® fan motor, actuation | 18D |
| 5 | AIRSCARF® heating element, actuation | 18F |
| 6 | Outside temperature, signal | 9D |
| 6 | Outside temperature, signal | 16E |
| 7 | Vehicle speed, signal | 10H |
| 7 | Vehicle speed, signal | 9K |
| 7 | Vehicle speed, signal | 15E |
| 8 | Soft top position, status | 15E |
| 8 | Soft top position, status | 12F |
| 9 | AIRSCARF®, status | 12E |
| 9 | AIRSCARF®, status | 14K |
| 9 | AIRSCARF®, status | 19K |
| 9 | AIRSCARF®, status | 16D |
| 9 | AIRSCARF®, status | 20B |
| A1 | Instrument cluster | 6F |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 10H |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 10C |
| CAN B | Interior CAN | 14F |
| CAN HMI | User interface CAN | 7K |
| LIN B28 | Heater LIN | 14E |
| LIN B5 | Left front door LIN | 18B |
| LIN B6 | Right front door LIN | 18K |
| M4/10 | Left AIRSCARF® fan motor | 18D |
| M4/11 | Right AIRSCARF® fan motor | 18E |
| N10/6 | Front SAM control unit | 5B |
| N10/8 | Rear SAM control unit | 10D |
| N22/1 | Climate control control unit | 10A |
| N22/6 | Rear control unit | 16F |
| N25/7 | AIRSCARF® control unit | 17E |
| N69/1 | Left front door control unit | 16A |
| N69/2 | Right front door control unit | 15J |
| N73 | Electronic ignition switch control unit | 9J |
| R22/5 | Left AIRSCARF® heating element | 18F |
| R22/6 | Right AIRSCARF® heating element | 18F |
| S51/1 | Driver seat climate control switch group | 20A |
| S51/1s4 | Left front AIRSCARF® switch | 20B |
| S51/2 | Front passenger seat climate control switch group | 20J |
| S51/2s4 | Right front AIRSCARF® switch | 20K |
