Removing Rear Head Restraint - AR91.16-P-1770LW
Model 205.0/1/2/3
Model 213.0/2
Model 253.9, 293
Shown on Model 205.0 except code 287 (Folding Rear Seat Backrests)

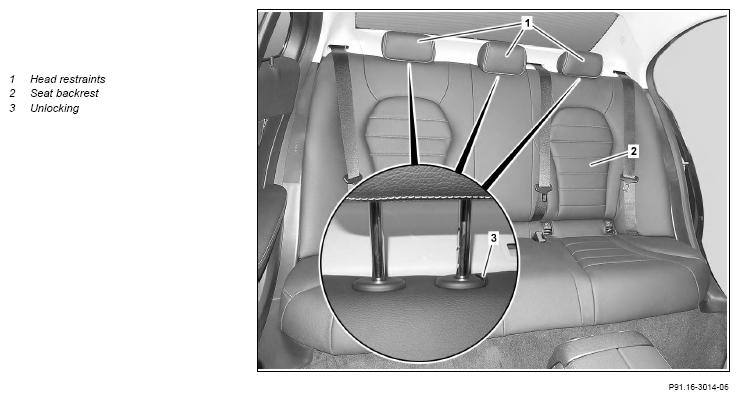

Fig 1: Rear Head Restraint Components Location - Model 205.0/3; Shown On Model 205.0 Except Code 287

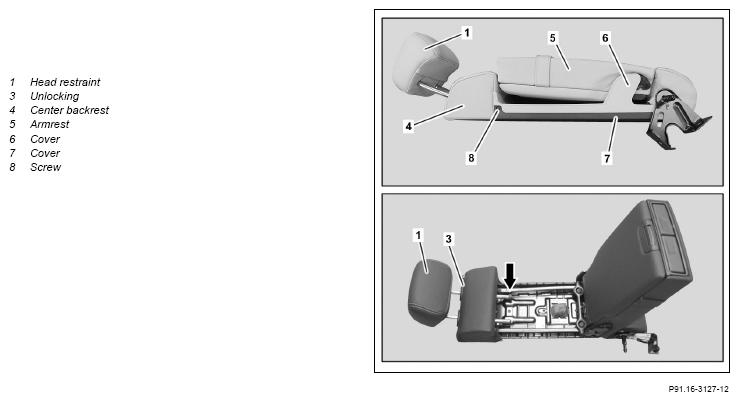

Shown on center head restraint (1) on Model 253.9 with code 287 (Folding Rear Seat Backrests)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||
| 1.1 | Release seat backrest (2) and fold far enough forward until the corresponding head restraint (1) can be removed. | Model 205.0/1, 213.0 except code 287 (Through-Loading Feature) | AR91.12-P-1620LW |
| 1.2 | Release left or right seat backrest (2) and fold far enough forward until the corresponding head restraint (1) can be removed. | Model 205.0/1, 213.0 with code 287 (Through-Loading Feature) Model 205.2/3, 213.2, 253.9, 293 |
|
| 2 | Remove trim (6) behind armrest (5). | Model 205.0/1, 213.0 with code 287 (Through-Loading Feature) Model 205.2, 213.2, 253.9, 293 When removing center head restraint (1). |
AR91.12-P-1745LW |
| 3 | Remove retaining clip (arrow) of head restraint (1). | Model 205.0/1, 213.0 with code 287 (Through-Loading Feature) Model 205.2, 213.2, 253.9, 293 When removing center head restraint (1). |
|
| 4 | Operate release (3) and pull head restraint (1) out of head restraint guides. | ||
| 5 | Install in the reverse order |
