Remove/Install Head Air Bag - AR91.60-P-0697LWR
Model 205.4
Shown on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/Install | |||
| 1 | Remove door panel from front door | AR72.10-P-1000LW | |
| 2 | Disconnect battery ground line | AR54.10-P-0003LW | |

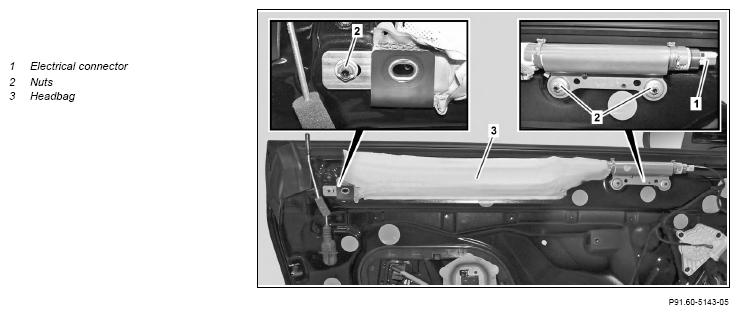

| 3 | Release and disconnect electrical connection (1) | Make sure that electrical connector (1) engages properly. |
|
| 4 | Unscrew nuts (2) and remove head air bag (3) | ||
| 5 | Install in the reverse order | ||
| 6 | Check Supplemental Restraint System (SRS) with diagnostic system | When replacing head air bag (3). | |
