Remove/Install Front Seat Inclination Adjustment Motor - AR91.29-P-0005LW

Model 205, 213, 238, 253, 293

with code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

with code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

with code P65 (Seat Comfort Package)

Model 205, 213, 253, 293

with code 221 (Electrically Adjustable Left Driver Seat)

with code 222 (Electrically Adjustable Right Front Seat)

Model 205, 253, 293

with code 275 (Driver's Seat, Electrically Adjustable With Memory Function)

Model 213, 238

with code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Topical note	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/Install

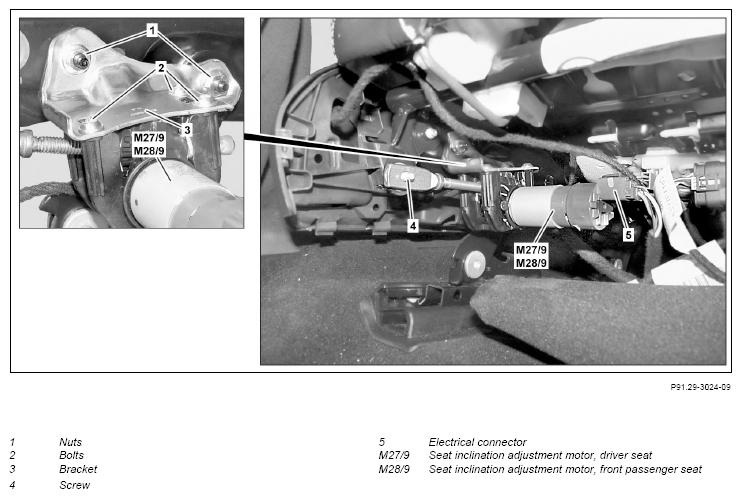

1	Move front seat all the way back and upwards.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Disconnect electrical connector (5).
4	Unscrew screw (4).	Note the left-hand thread of screw/bolt (4). Replace screw (4).
		Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part	*BA91.10-P-1004-01T
5	Unscrew nuts (1).	Nut, bracket for electric motor for seat cushion inclination on seat frame base	*BA91.10-P-1008-01T

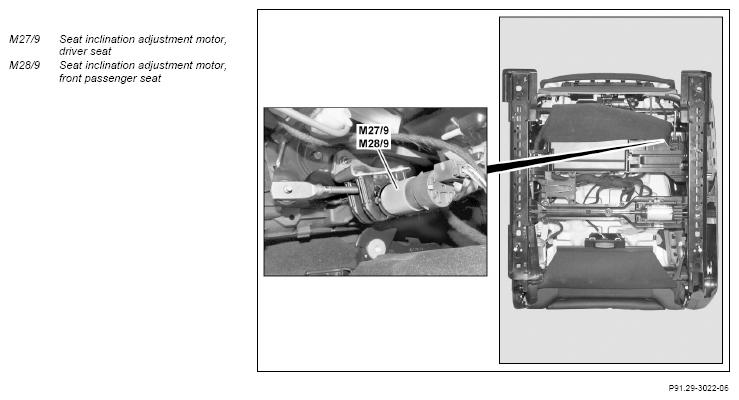

6	Remove seat adjustment motor for seat inclination adjustment (M27/9, M28/9) with bracket (3).
7	Remove screws (2) and remove seat adjustment motor for seat inclination adjustment (M27/9, M28/9) from bracket (3).	Only when replacing the seat adjustment motor for seat inclination adjustment (M27/9, M28/9).
		Bolt, electric motor for seat cushion inclination to bracket	*BA91.10-P-1003-01T
8	Install in the reverse order

Number	Designation		Model 205	Model 213
BA91.10-P-1003-01T	Bolt, electric motor for seat cushion inclination to bracket	Nm	5	5

Number	Designation		Model 238	Model 253
BA91.10-P-1003-01T	Bolt, electric motor for seat cushion inclination to bracket	Nm	5	5

Number	Designation		Model 293
BA91.10-P-1003-01T	Bolt, electric motor for seat cushion inclination to bracket	Nm	5

Number	Designation		Model 205	Model 213
BA91.10-P-1004-01T	Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part	Nm	8	8

Number	Designation		Model 238	Model 253
BA91.10-P-1004-01T	Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part	Nm	8	8

Number	Designation		Model 293
BA91.10-P-1004-01T	Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part	Nm	8

Number	Designation		Model 205	Model 213
BA91.10-P-1008-01T	Nut, bracket for electric motor for seat cushion inclination on seat frame base	Nm	14	14

Number	Designation		Model 238	Model 253
BA91.10-P-1008-01T	Nut, bracket for electric motor for seat cushion inclination on seat frame base	Nm	14	14

Number	Designation		Model 293
BA91.10-P-1008-01T	Nut, bracket for electric motor for seat cushion inclination on seat frame base	Nm	14
