Remove/Install Front Seat Cushion Cover - AR91.18-P-1801LW
Model 205, 253, 293
with code 221 (Electrically Adjustable Left Driver Seat)
with code 222 (Electrically Adjustable Right Driver Seat)
with code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
with code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
with code 275 (Driver's Seat, Electrically Adjustable With Memory Function)
with code P65 (Seat Comfort Package)
Model 205, 253
with code 555 (AMG-Performance Seat)
Model 238
with code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)
with code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)
with code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))
with code P65 (Seat Comfort Package)

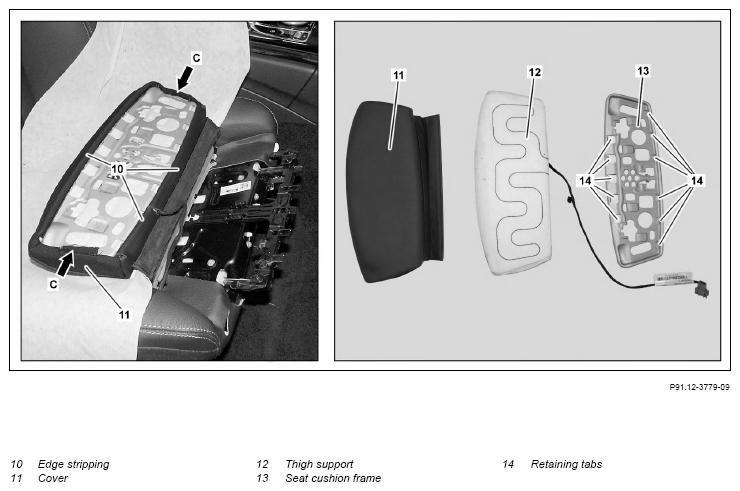

Shown on Model 205.0 with code 873 (Seat Heater For Driver And Front Passenger)
Shown on Model 205.0 with code 873 (Seat Heater For Driver And Front Passenger)
| Remove | |||
| 1 | Remove seat cushion padding (2). | AR91.10-P-5040LW | |
| 2 | Unhook cover (11) at side (arrows C). | ||
| 3 | Push retaining tabs (14) to one side and unhook the piping (10). | Dismantling tool |
Fig 2 |
| 4 | Remove seat cushion frame (13) from thigh rest (12) and cover (11). | ||
| 5 | Remove thigh rest (12) from cover (11). | ||
| 6 | Release cover (1) on underside of the seat cushion padding (2). | If the cover (1) is also attached to the underside of the seat cushion padding (2). Dismantling tool |
Fig 2 |
| 7 | Slip cover (1) over the seat cushion padding (2). | ||

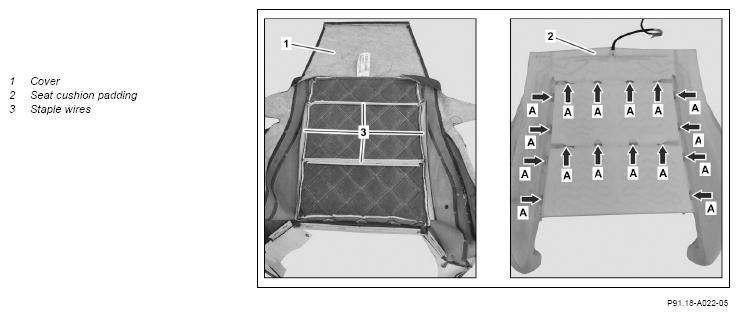

| 8 | Release staple wires (3) at attachment points (arrows A). | AR91.18-P-1802-01LW | |
Padding clip pliers |
Fig 4 | ||
Dismantling tool |
Fig 3 | ||
| 9 | Remove cover (1) from seat cushion padding (2). | ||
| Install | |||
| 10 | Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2). | ||
| 11 | Fasten staple wires (3) at attachment points (arrows A). | AR91.18-P-1802-01LW | |
Padding clip pliers |
Fig 4 | ||
Dismantling tool |
Fig 3 | ||
| 12 | Pull cover (1) over seat cushion padding (2). | ||
| 13 | Fasten cover (1) on underside of the seat cushion padding (2). | If the cover (1) is also attached to the underside of the seat cushion padding (2). | |
| 14 | Insert thigh rest (12) into cover (11) and smooth out creases in cover (11). | ||
| 15 | Insert the seat cushion frame (13) into the cover (11) and align centrally on cover (11), as well as the contour of the thigh rest (12) using marking. | ||
| 16 | Hook in piping (10) and fix in place with retaining tabs (14). | Dismantling tool |
Fig 2 |
| 17 | Hook-in cover (11) at side (arrows C). | ||
| 18 | Install seat cushion padding (2). | AR91.10-P-5040LW |
