Install Cover Of Integrated Head Restraint - AR91.16-P-0301-02NKB

Model 117, 156, 176

with code 555 (AMG-Performance Seat)

Model 190.3 up to model year 2018

with code 555 (AMG-Performance Seat)

Model 205 up to model year 2019

with code 555 (AMG-Performance Seat)

Model 253

with code 555 (AMG-Performance Seat)

SEATS

Number	Designation		Model 117, 156, 176 with code 555 (AMG-Performance Seat)	Model 205 with code 555 (AMG-Performance Seat)
BA91.10-P-1001-02A	Bolt, trim piece belt passage to backrest frame	Nm	2, 5	2, 5

SEATS

Number	Designation		Model 253 with code 555 (AMG-Performance Seat)
BA91.10-P-1001-02A	Bolt, trim piece belt passage to backrest frame	Nm	2, 5

FRONT SEATS

Number	Designation		Model 190
BA91.10-P-1012-01R	Bolt, trim piece belt passage to backrest frame	Nm	2, 5

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Tensioning Device (205 589 02 31 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

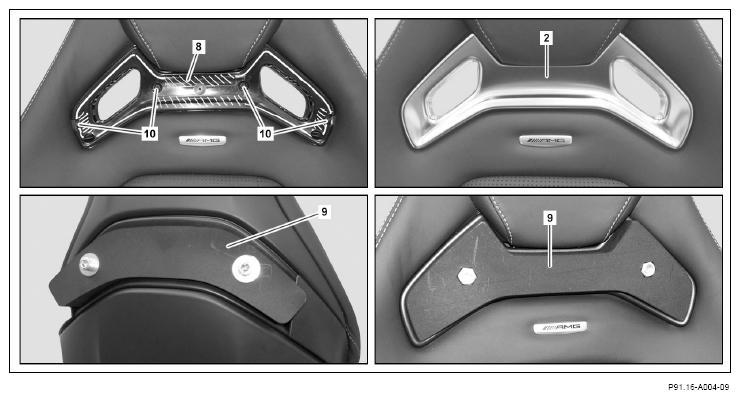

Install cover (8).
Screw in the screws (10). Model 190.3
up to model year 2018

with code 555 (AMG-Performance Seat)

Model 117, 156, 176

with code 555 (AMG-Performance Seat)

Model 205

up to model year 2019

with code 555 (AMG-Performance Seat)

Model 253

with code 555 (AMG-Performance Seat)
Model 117, 156, 176
with code 555 (AMG-Performance Seat)

Model 190.3

up to model year 2018

with code 555 (AMG-Performance Seat)

Model 205 (except 205.3/4)

up to model year 2019

with code 555 (AMG-Performance Seat)

Model 253

with code 555 (AMG-Performance Seat)

Hook outer cover of seat backrest onto cover (8).
Apply adhesive material along marked surface and lines with an adhesive bead approx. 5 mm in height and thickness.
The adhesive material is included in the parts scope.
Position cover (2) and align.
Press on cover (2) using clamping tool.
The curing time of the adhesive material is 30 min.
