Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996RF

Model 205, 253

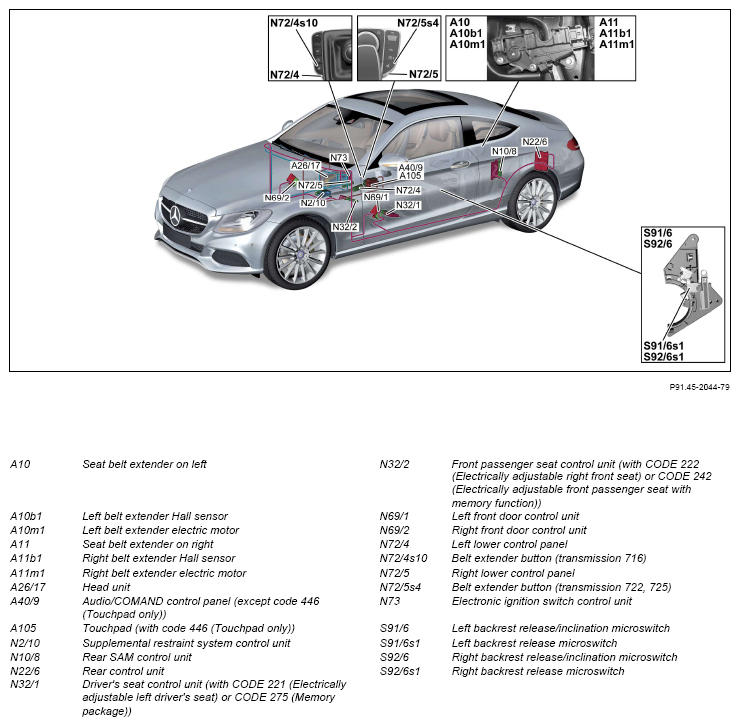

G14197587Courtesy of MERCEDES-BENZ USA

Seat belt extender (model 205.3 with code U02 (Seat belt extender, electric), model 205.4), shown on model 205.3
