Remove/Install Seat Inclination Adjustment Motor - AR91.29-P-0005LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 213, 238, 253, 293 with code 241 (Memory switch for electrically adjustable front passenger seat, left)
MODEL 205, 213, 238, 253, 293 with code 242 (Front passenger seat, electrically adjustable with memory function)
MODEL 205, 213, 238, 253, 293 with code P65 (Seat comfort package)
MODEL 205, 213, 253, 293 with code 221 (Electrically adjustable left driver seat)
MODEL 205, 213, 253, 293 with code 222 (Electrically adjustable right driver seat)
MODEL 205, 253, 293 with code 275 (Driver's seat, electrically adjustable with memory function)
MODEL 213, 238 with code 275 (Memory Package (driver's seat, steering column and mirror))

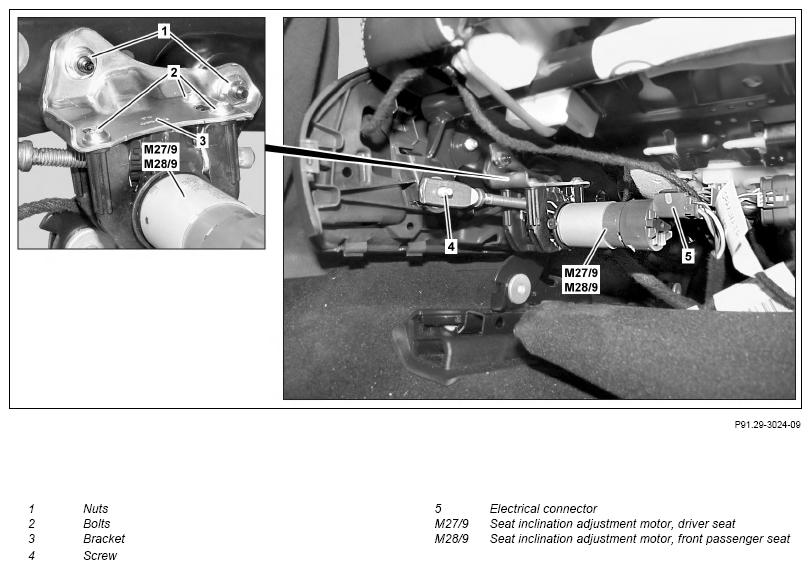

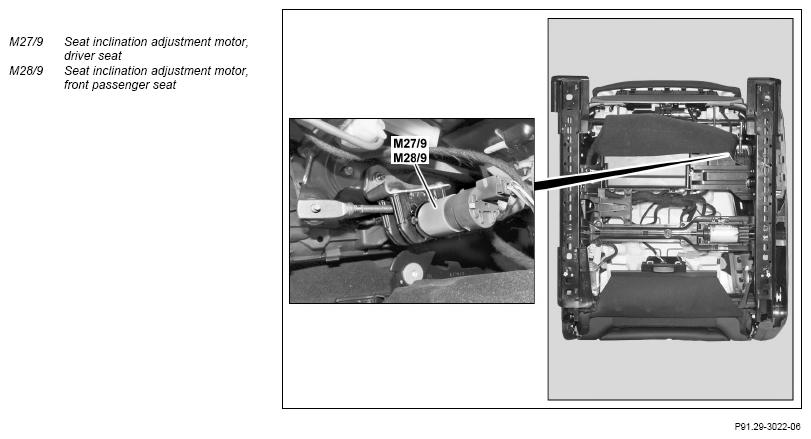

Fig 1: Seat Inclination Adjustment Motor Components Location - Model 253 With Codes 241, 242 P65, 221, 222 And 275
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Move front seat all the way back and upwards. | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Disconnect electrical connector (5). | ||
| 4 | Unscrew screw (4). | *BA91.10-P-1004-01T | |
| 5 | Unscrew nuts (1). | *BA91.10-P-1008-01T | |
| 6 | Remove seat adjustment motor for seat inclination adjustment (M27/9, M28/9) with bracket (3). | ||
| 7 | Remove screws (2) and remove seat adjustment motor for seat inclination adjustment (M27/9, M28/9) from bracket (3). | Only when replacing the seat adjustment motor for seat inclination adjustment (M27/9, M28/9). |
*BA91.10-P-1003-01T |
| 8 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA91.10-P-1003-01T | Bolt, electric motor for seat cushion inclination to bracket | Nm | 5 | 5 |
FRONT SEATS
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.10-P-1003-01T | Bolt, electric motor for seat cushion inclination to bracket | Nm | 5 | 5 |
FRONT SEATS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.10-P-1003-01T | Bolt, electric motor for seat cushion inclination to bracket | Nm | 5 |
FRONT SEATS
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA91.10-P-1004-01T | Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part | Nm | 8 | 8 |
FRONT SEATS
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.10-P-1004-01T | Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part | Nm | 8 | 8 |
FRONT SEATS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.10-P-1004-01T | Screw, seat cushion inclination electric motor linkage to seat cushion frame/seat adjustment unit upper part | Nm | 8 |
FRONT SEATS
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA91.10-P-1008-01T | Nut, bracket for electric motor for seat cushion inclination on seat frame base | Nm | 14 | 14 |
FRONT SEATS
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.10-P-1008-01T | Nut, bracket for electric motor for seat cushion inclination on seat frame base | Nm | 14 | 14 |
FRONT SEATS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.10-P-1008-01T | Nut, bracket for electric motor for seat cushion inclination on seat frame base | Nm | 14 |
