Remove/Install Locking Mechanism For Folding Rear Seat Backrest - AR91.12-P-1730LWS
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205.2
MODEL 213.2
MODEL 253, 293

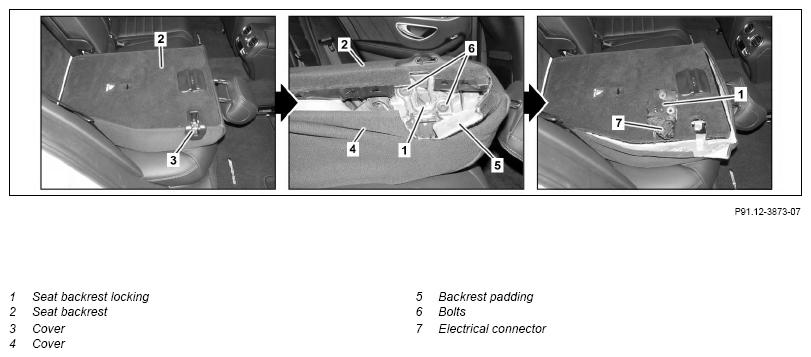

Fig 1: Locking Mechanism For Folding Rear Seat Backrest Components Location - Model 253 (Shown On Model 205.2)
Shown on right side of vehicle on model 205.2
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Release and fold over seat backrest (2). | ||
| 2 | Unclip cover (3). | Unclip cover (3) first in direction of rear door and then upwards. Otherwise, the cover (3) may be damaged. |
|
| 3 | Unhook cover (4) in area of seat backrest lock (1). | ||
| 4 | Detach seat backrest padding (5) and cover (4) far enough so that the seat backrest lock (1) and the screws (6) are accessible. | Detach seat backrest padding (5) and cover (4) carefully. Damage can otherwise occur. |
|
| 5 | Remove screw/bolts (6). | *BA91.12-P-1008-03M | |
| 6 | Remove seat backrest lock (1) with connected electrical connectors (7) from seat backrest (2). | ||
| 7 | Detach electrical connector (7). | ||
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 205.2 | Model 213.2 | |
|---|---|---|---|---|
| BA91.12-P-1008-03M | Bolt, backrest lock to backrest frame | Nm | 20 | 20 |
REAR SEATS
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.12-P-1008-03M | Bolt, backrest lock to backrest frame | Nm | 20 | 20 |
