Remove/Install Cover Frame Of Integrated Head Restraint - AR91.16-P-0300NKA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 156, 176
except code 555 (AMG-Performance Seat)
MODEL 253
except code 555 (AMG-Performance Seat)
| Remove/install | |||

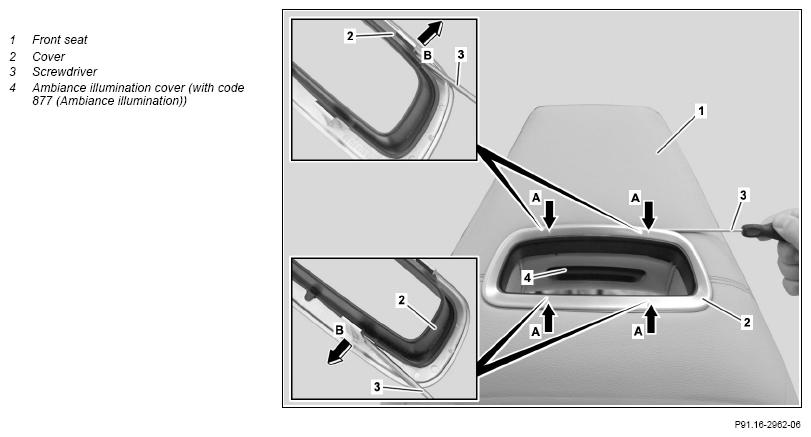

| 1 | Insert a screwdriver (3) between front seat (1) and cover (2), release catch hooks in area of arrows (A) and remove cover (2) | ||
| 2 | Unclip ambiance illumination cover (4) | Model 117, 156, 176 with code 877 (Ambient lighting) except code 555 (AMG-Performance Seat) Model 253 with code 877 (Ambient lighting) except code 555 (AMG-Performance Seat) |
|

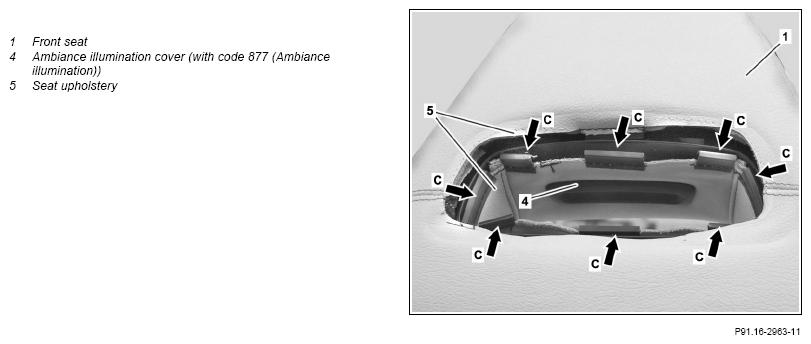

| 3 | Unhook seat cover (5) in area of arrows (C) | Fig 2 | |

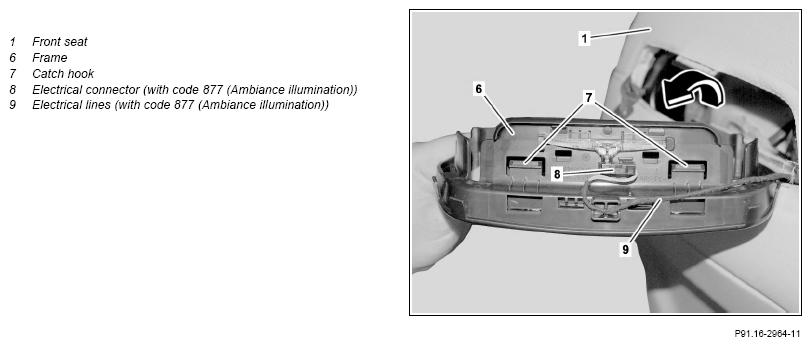

| 4 | Release catch hooks (7) and unclip frame (6) | Fig 2 | |
| 5 | Tilt frame (6) at top in direction of arrow and remove from front seat (1) | ||
| 6 | Disconnect electrical connector (8) and remove with electrical line (9) from frame (6) | Model 117, 156, 176 with code 877 (Ambient lighting) except code 555 (AMG-Performance Seat) Model 253 with code 877 (Ambient lighting) except code 555 (AMG-Performance Seat) |
|
| 7 | Install in the reverse order |
