Replace Complete Wheel Well - Ar62.20-P-1200LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 238

Model 253

Model 293

Shown on model 205

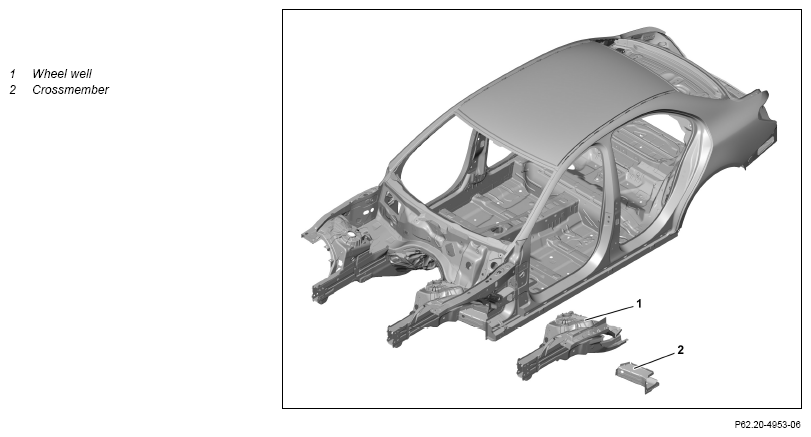

Fig 1: Wheel Well Assembly Component Location (Complete) (Model 253) (Shown On model 205)

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A .
	Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A .
	Risk of explosion from aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system.	AS60.00-Z-0007-01N .
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A .
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A .
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A .
Notice^^^^H	Notes on battery		AH54.10-P-0001-01A .
Notice	General information on body repair		AH60.00-P-0001-01K0A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX .
Notice	General information on crack diagnosis of aluminum parts		AH60.00-P-0014-01N .
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N .
	Note on working on aluminum components and vehicles		AH60.00-P-0034-01LW .
	General information on MB materials		AH98.00-P-9409-03A .
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blankets.
3	Remove upper front longitudinal member.	Model 205, 213, 253 Model 293	AR62.20-P-1286LW .
		Model 238	AR62.20-P-1286LWO
4	Set up straightening bench with straightening bench support members and straightening set
	000 588 01 23 00 Body straightening system		WS60.00-P-0023K .
5	Place vehicle on straightening bench and fasten.
6	Remove wheel well (1) and crossmember (2).		AR62.20-P-1200-21LW .
	000 588 00 84 00 Heat gun	Commercially available devices/tools Round wire brush Body power jigsaw Spot weld milling machine Drill bit and milling cutter for high-strength steels Wet/dry vacuum cleaner	WS54.00-P-0049B .
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A .
7	Prepare wheel well (1) and crossmember (2).	Commercially available devices/tools Round wire brush Body power jigsaw Aluminum workplace Aluminum tools	AR62.20-P-1200-19LW .
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A .
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A .
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A .
	General information on riveting		AH60.00-P-0003-01N .
8	Install wheel well (1) and crossmember (2).		AR62.20-P-1200-17LW .
	000 588 01 84 00 Welder		WS60.00-P-0021K .
	000 588 01 23 00 Body straightening system	Commercially available devices/tools Round wire brush Drill bit for high-strength steels Manual temporary fastener 6.35 mm Blind rivet gun (minimum pull-off force 19 kN) Body power jigsaw Wet/dry vacuum cleaner	WS60.00-P-0023K .
		Zinc dust paint suitable for spot welding	*BR00.45-Z-1001-07A .
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A .
		Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A .
		Blind rivet Y3 6.5X 14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1016-13A .
		Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A .
9	Release vehicle from straightening bench, lift and remove straightening bench.
10	Clean weld joints and sheet metal flange.	Commercially available devices/tools Round wire brush
11	Install upper front longitudinal member.	Model 205, 213, 253 Model 293	AR62.20-P-1286LW .
		Model 238	AR62.20-P-1286LWO
12	Install detachable parts in the area of the repair point.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42
BR00.45-Z-1012-13A	Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	A 004 990 16 97
BR00.45-Z-1016-13A	Blind rivet Y3 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN)	A 004 990 17 97
BR00.45-Z-1035-13A	Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	A 000 991 76 32
BR00.45-Z-1162-02A	Parts kit for 2-component adhesive for body	A 012 989 17 71
