Remove Firewall Half - Ar62.25-P-1110-01LWE

Model 213

Model 238

Model 253

Model 293

The next steps are shown on the left side of the vehicle on model 213 and must performed be in the same way on the right side in the event of damage.

Fig 1: Firewall Half Panel Component Location (Model 253)

Courtesy of MERCEDES-BENZ USA

1. Expose spot welds on pedal bowl (4) and cut off (area A)

   It is necessary to cut out common spot welds of pedal bowl (4) firewall and firewall crossmember through 2 sheet metal thicknesses.

2. Heat pedal bowl (4) in crosshatched area.

   EC Cross-hatched area is bonded.

3. Remove pedal assembly cup (4).

   Courtesy of MERCEDES-BENZ USA

4. Mark separating point on firewall crossmember (5) (area B).

   Do not cut too deeply. Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 20 mm

   b = approx. 65 mm

   Courtesy of MERCEDES-BENZ USA

5. Expose spot welds on the firewall crossmember (5) and cut off (area C).
6. Expose spot welds on the firewall crossmember (5) and cut off (area D).

   It is necessary to cut out common spot welds of firewall crossmember (5) and firewall through 2 sheet metal thicknesses.

   Courtesy of MERCEDES-BENZ USA

7. Heat firewall crossmember (5) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

8. Heat firewall crossmember (5) in crosshatched areas.

   Heat crossmember firewall (5) from inside (area D₁ ). Cross-hatched areas are bonded with adhesive.

9. Remove firewall crossmember (5).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

10. Expose spot welds on firewall (3) and drill with ø 6.5 mm bit (area E).
11. Expose spot welds on firewall (3) and cut off (area F).

    Courtesy of MERCEDES-BENZ USA

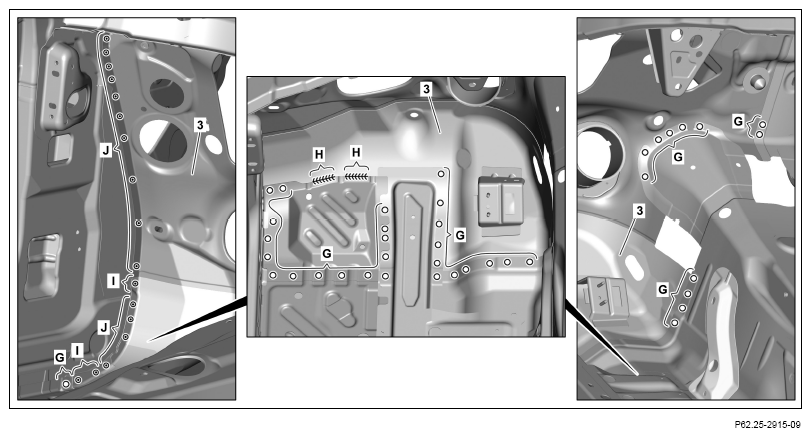

12. Expose spot welds on firewall (3) and drill out with a diameter of 6.5 mm (area G).
13. Cut solder points on firewall (3) (areas H).
14. Expose spot welds on firewall (3) and cut off (area I and J).

    Joint spot welds on the connecting carrier and firewall (3) must be cut through 2 panel thicknesses (area I)

    Courtesy of MERCEDES-BENZ USA

15. Heat firewall (3) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

16. Heat firewall (3) in crosshatched area.

    Cross-hatched area is bonded.

17. Remove firewall (3).

    Courtesy of MERCEDES-BENZ USA

18. Grind mating surfaces down to bare metal in cross-hatched areas.

    Courtesy of MERCEDES-BENZ USA

19. Grind mating surfaces down to bare metal in cross-hatched areas.
20. Remove grinding dust and drill chips.

Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
