Remove/Install Automatic Transmission Valve Block - AR27.35-P-0390MRD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.007
Transmission 725.017
Transmission 725.037
Transmission 725.047
MODIFICATION NOTES
| 16.03.2020 | Document completely revised. |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on electric machine | Transmission 725.007 in model 213.050 Transmission 725.017 in model 205.013/053/213/253, 213.016/053/153/155/216/253, 222.173 Transmission 725.037 in model 167.117/154/317/354 Transmission 725.047 in model 213.011/054/211, 253.311/353/911/953 |
AH08.10-P-0001-01MRD | |
| General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove center and rear lower engine compartment lining. | Transmission 725.007 in model 213 Transmission 725.017 in model 213 Transmission 725.047 in model 213 |
AR61.20-P-1105LWE |
| Transmission 725.017 in model 222 | AR61.20-P-1105LF | ||
| Transmission 725.037 in model 167 | AR61.20-P-1105ME | ||
| Transmission 725.017 in model 205 Transmission 725.047 in model 205, 253 |
AR61.20-P-1105LW | ||

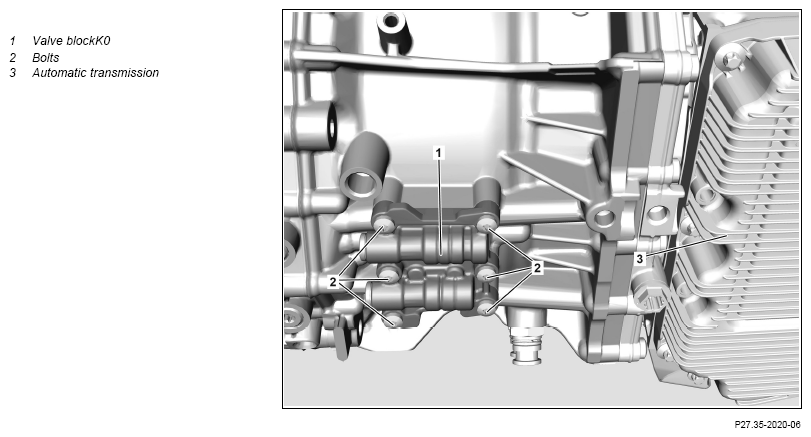

| 2 | Remove bolts (2). | *BA27.10-P-1021-04H | |
| 3 | Remove valve block K0 (1) and collect escaping automatic transmission fluid. | ||
| 4 | Remove seal from torque converter housing. | ||
| 5 | Seal opening in torque converter housing with protective cover. | Fig 2 | |
| 6 | Install in the reverse order. | ||
| 7 | Check and correct transmission oil level in automatic transmission (3). | AR27.00-P-0270EWH | |
| 8 | Read out and delete fault memory. | ||
| Transmission 725.007 in model 213 Transmission 725.017 in model 205, 213, 222 Transmission 725.047 in model 205, 213, 253 |
AD00.00-P-2000-04B | ||
| Transmission 725.037 in model 167 | AD00.00-P-2000-06ME | ||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run and check torque converter housing in area of valve block K0 (1) for leak tightness. | ||
| 10 | Install center and rear lower engine compartment lining. | Transmission 725.007 in model 213 Transmission 725.017 in model 213 Transmission 725.047 in model 213 |
AR61.20-P-1105LWE |
| Transmission 725.017 in model 222 | AR61.20-P-1105LF | ||
| Transmission 725.037 in model 167 | AR61.20-P-1105ME | ||
| Transmission 725.017 in model 205 Transmission 725.047 in model 205, 253 |
AR61.20-P-1105LW |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1021-04H | Screw/bolt, valve block to torque converter housing | Nm | 8 |
