Remove/Install Automatic Transmission Auxiliary Oil Pump - AR27.30-P-0651EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257, 290, 292
Transmission 725.0 in model 463
as of model year 2019
Transmission 725.1 in model 213, 238, 257
Shown on MODEL 292

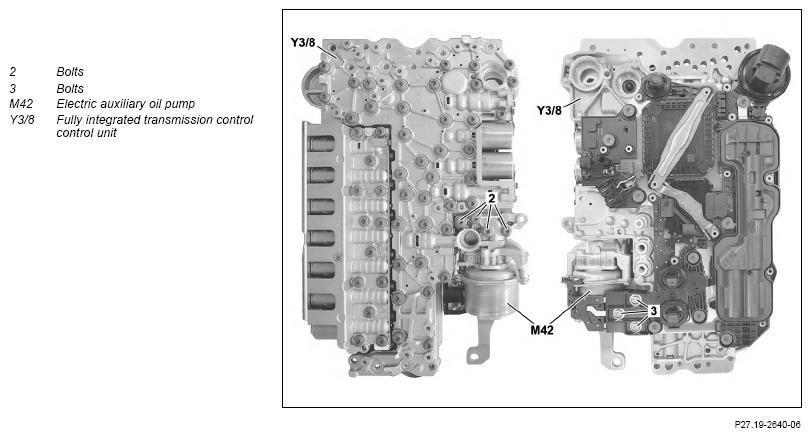

Fig 1: Automatic Transmission Auxiliary Oil Pump Components Location - Transmission 725.0 In Model 253 (Shown On Model 292)
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove fully integrated transmission control controller unit (Y3/8). | AR27.19-P-0200EWM | |
| 2 | Unscrew bolts (3). | *BA27.19-P-1004-01D | |
| 3 | Unscrew and remove screws (2) and remove electric auxiliary oil pump (M42). | ||
| *BA27.19-P-1002-01D | |||
| 4 | Install in the reverse order. |
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.19-P-1002-01D | Screw/bolt, auxiliary oil pump to shift valve body cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 90 | ||
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | Transmission 725.0/1 | |
|---|---|---|---|
| BA27.19-P-1004-01D | Screw/bolt, electrical connection for auxiliary oil pump to control unit | Nm | 5 |
