Disassemble And Assemble Electrohydraulic Controller Unit - AR27.19-P-0220EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0 in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257, 290, 292

Transmission 725.0 in model 463

as of model year 2019

Transmission 725.1 in model 213, 238, 257

Example illustration

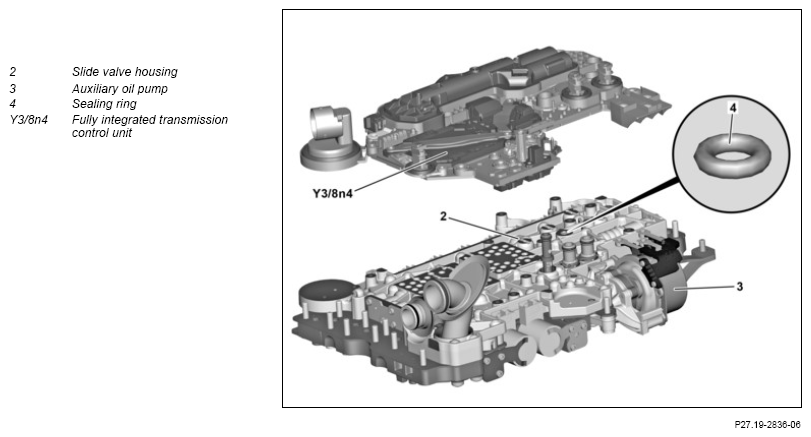

G14546778Courtesy of MERCEDES-BENZ USA

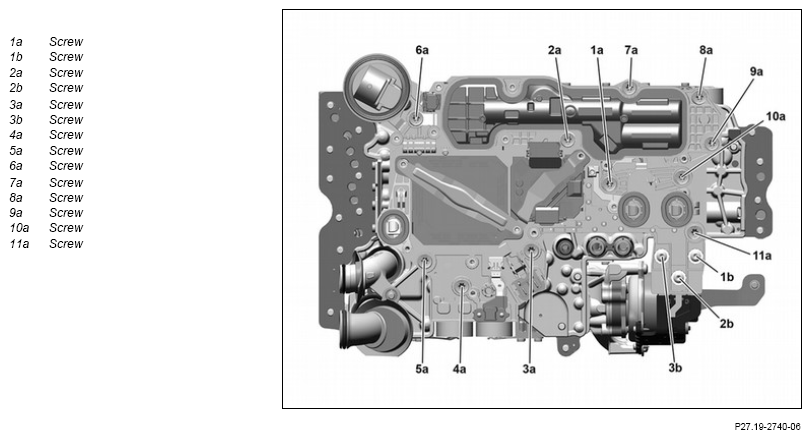

G14546779Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Read out fully integrated transmission control unit (Y3/8n4) and save adaptation values. When replacing fully integrated transmission control unit (Y3/8n4).
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 167 AD00.00-P-2000-06ME
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 257, 290
Transmission 725.1 in model 257		 AD00.00-P-2000-06FR
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 205, 213, 217, 222, 253
Transmission 725.0 in model 463 as of model year 2019
Transmission 725.1 in model 213		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0/1 in model 238
IMPORTANT Before removing fully integrated transmission control unit (Y3/8n4), read out and save the adaptation values stored there using the diagnostic system.
If communication with the previously integrated transmission control unit (Y3/8n4) is not possible,
↓
replace complete electrohydraulic controller unit (Y3/8).		 AD00.00-P-2000-06LWO
2 Remove electrohydraulic controller unit.   AR27.19-P-0200EWM
DISASSEMBLINGASSEMBLING Disassemble/assemble
3 Unscrew and remove screws (1a to 11a) of fully integrated transmission control unit (Y3/8n4) from shift valve housing (2). IMPORTANTAssembly:  Observe tightening sequence. Tighten screws (1a to 11a) in alphanumeric sequence.
IMPORTANTAssembly:  Replace screws (1a to 11a).
    TORQUE SPECIFICATION Screw/bolt, control unit to shift valve body cover *BA27.19-P-1005-01D
4 Unscrew and remove screws (1b to 3b) of auxiliary oil pump (3) from fully integrated transmission control unit (Y3/8n4). IMPORTANTAssembly:  Observe tightening sequence. Tighten screws (1b to 3b) in alphanumeric sequence.
IMPORTANTAssembly:  Replace screws (1b to 3b).
    TORQUE SPECIFICATION Screw/bolt, electrical connection for auxiliary oil pump to control unit *BA27.19-P-1004-01D
5 Remove fully integrated transmission control unit (Y3/8n4). IMPORTANTAssembly:  Make sure that fully integrated transmission control unit (Y3/8n4) is positioned correctly on shift valve housing (2).
6 Remove sealing ring (4) from shift valve housing (2).
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.17)   BB00.40-P-0236-17A
    NOTESAssembly:
Observe Specifications for Operating Fluids.
Otherwise the transmission will be damaged.
IMPORTANTAssembly:  Replace the sealing ring (4) and moisten with transmission oil.
7 Assemble in the reverse order.
INSTALLING Install
8 Install electrohydraulic controller unit.   AR27.19-P-0200EWM
9 Transfer stored adaptation values to fully integrated transmission control unit (Y3/8n4) and perform SCN coding. When replacing fully integrated transmission control unit (Y3/8n4).
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 167 AD00.00-P-2000-06ME
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 257, 290
Transmission 725.1 in model 257		 AD00.00-P-2000-06FR
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 205, 213, 217, 222, 253
Transmission 725.0 in model 463 as of model year 2019
Transmission 725.1 in model 213		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Transmission 725.0/1 in model 238
IMPORTANT Use the vehicle diagnosis system used before removal.		 AD00.00-P-2000-06LWO
ELECTROHYDRAULIC CONTROLLER UNIT

Number Designation Transmission 725.0/1
BA27.19-P-1004-01D Screw/bolt, electrical connection for auxiliary oil pump to control unit Nm 5
ELECTROHYDRAULIC CONTROLLER UNIT

Number Designation Transmission 725.0/1
BA27.19-P-1005-01D Screw/bolt, control unit to shift valve body cover Nm 4
