Remove/Install Front Engine Mount - AR22.10-P-4330LWD

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 274.9 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Shown on right front engine mount (2)

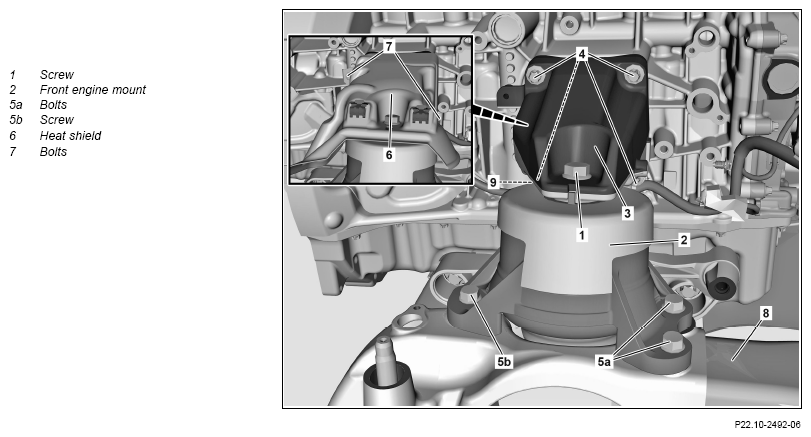

Fig 1: Front Engine Mount Components Location - Engine 274.9 In Model 253 With Code M005 (Right Front Shown)
G14474329Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   AH00.00-Z-0300-01A
Notes on battery   AH54.10-P-0001-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Deactivate memory package Engine 274.9 in model 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code M005 (Vehicles with 4MATIC/all-wheel drive)

2 Turn rack-and-pinion steering to central position (front wheels in straight ahead position) and secure steering wheel with the holding device NOTES
The steering wheel must not be turned when detaching steering coupling.
Otherwise the clock spring contact will be destroyed.

    SPECIAL TOOL Retainer device Fig 3
3 Perform disable for the high voltage on-board electrical system Engine 274.9 in model 253.354/954 with code M005 (Vehicles with 4MATIC/all-wheel drive)
      AR54.10-P-1150LVH
4 Remove engine air intake duct upstream of air filter
5 Remove center and rear lower engine compartment paneling   AR61.20-P-1105LW
6 Release and disconnect high voltage of the electrical A/C compressor Engine 274.9 in model 253.354/954 with code M005 (Vehicles with 4MATIC/all-wheel drive)
7 Unclip high-voltage line from charge air cooler bracket and place to one side Engine 274.9 in model 253.354/954 with code M005 (Vehicles with 4MATIC/all-wheel drive)
8 Remove front axle drive shafts Engine 274.9 in model 253 with transmission 724.2
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Engine 274.9 in model 253 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
AR33.30-P-0620LW
9 Remove catalytic converter   AR49.10-P-5500LW
10 Unclip engine management control unit with bracket and place to one side with connected lines
11 Remove screw/bolts (1) from left and right engine mount (2) TORQUE SPECIFICATION Engine 274.9 in model 253.346/349/943/946/949
with code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, front engine mount to engine support
*BA22.10-P-1001-03M
12 Mount engine hoist and raise engine NOTES
Do not put electrical lines and hoses under tension.
Otherwise damage will occur.
AR33.10-P-0105LW
13 Unfasten screw/bolts (7) and heat shield (6) TORQUE SPECIFICATION Bolt, heat shield to engine support *BA22.10-P-1003-02A
14 Remove screw/bolt (5a) from the left and the front right engine mount (2) TORQUE SPECIFICATION Engine 274.9 in model 253.346/349/943/946/949
with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier
*BA22.10-P-1002-03M
    TORQUE SPECIFICATION Engine mount wrench set Fig 2
15 Detach steering coupling from steering shaft   AR46.10-P-8000LW
16 Remove screw/bolts (5) from left and right front engine mount (2) and remove both front engine mounts (2) downwards IMPORTANT Always replace front engine mounts (2) in pairs.
IMPORTANT Observe environmental protection regulations for disposal of the engine mount (2). Dispose of front engine mount (2) into mixed scrap.

    TORQUE SPECIFICATION Engine 274.9 in model 253.346/349/943/946/949
with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier
*BA22.10-P-1002-03M
    SPECIAL TOOL Engine mount wrench set Fig 2
17 Install in the reverse order
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 253 (except 253.388/389/988/98 9/992/993)
BA22.10-P-1001-03M Bolt, front engine mount to engine support Stage 1 Nm 50
Stage 2 ∠° -
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 253 (except 253.388/389/988/98 9/992/993)
BA22.10-P-1002-03M Screw/bolt, front engine mount to front axle carrier Nm 30
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 274
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 10
Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G12816349Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
