Tightening Procedure For Timing Case Cover - AR01.40-P-8000-02MRH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264

CRANKCASE, TIMING CASE COVER, END COVER

Number Designation Engine 264
BA01.40-P-1001-03A Bolt, timing case cover to crankcase M6 Nm 9
M10 Nm 58

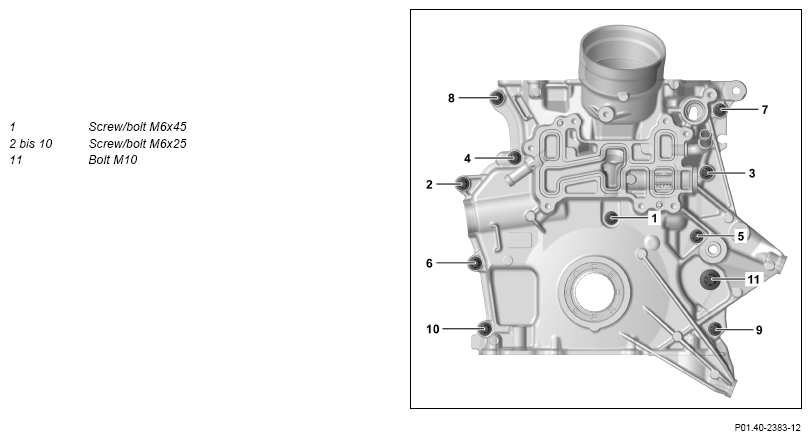

  1. Tighten screws/bolts (1 to 10) in ascending numerical sequence TORQUE SPECIFICATION .
  2. Tighten screw/bolt (11) TORQUE SPECIFICATION .
G14470562Courtesy of MERCEDES-BENZ USA
