Tightening Procedure For Timing Case Cover - AR01.40-P-8000-01MR

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 274

CRANKCASE, TIMING CASE COVER, END COVER

Number Designation Engine 274
BA01.40-P-1001-01K Bolt, timing case cover to crankcase M6   Nm 9
M8 Stage 1 Nm -
Stage 2 Nm -
M10   Nm 58

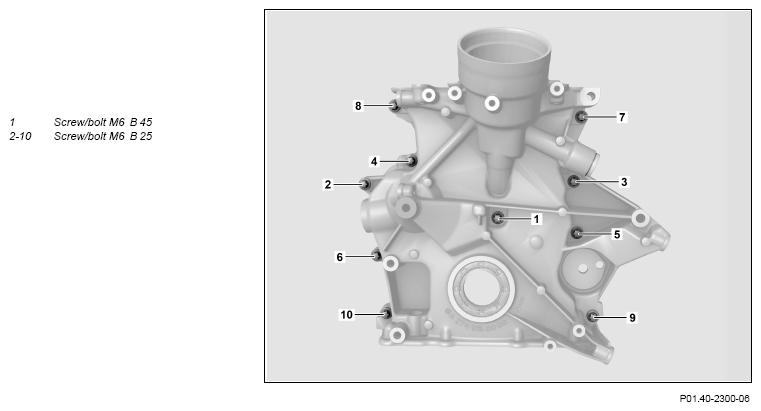

  1. Tighten screw/bolts for timing case cover in the numerical sequence
    G12816403Courtesy of MERCEDES-BENZ USA
