Tightening Procedure For Cylinder Head Bolts - AR01.30-P-5800-01MR
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274
MODIFICATION NOTES
| 12.10.15 | Operation step 5 added | 15th stage was added in the basic data. | BA01.30-P-1001-01Y |
CYLINDER HEAD
| Number | Designation | Engine 274 | |||
|---|---|---|---|---|---|
| BA01.30-P-1001-01Y | Bolt, cylinder head to crankcase | M11 | Stage 1 | Nm | 10 |
| Stage 2 | Nm | 40 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 90 | |||
| Stage 5 | ∠° | 90 | |||
CYLINDER HEAD
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA01.30-P-1002-01Y | Bolt, cylinder head to timing case cover | M8 | Nm | 20 |

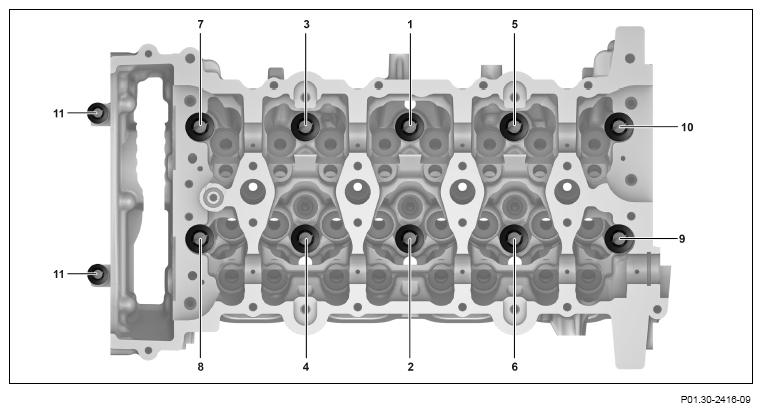

- Tighten cylinder head bolts (1 to 10) to stage 1.
- Tighten cylinder head bolts (1 to 10) to stage 2.
- Tighten cylinder head bolts (1 to 10) to stage 3.
- Tighten cylinder head bolts (1 to 10) to stage 4.
- Tighten cylinder head bolts (1 to 10) to stage 5.
- Tighten cylinder head bolts (11).
Always adhere to the specified tightening sequence.
Consequential damage can occur to the Engine otherwise.
Use the reverse tightening order to loosen the cylinder head bolts (1 to 11).
