Engine Oil Pan Tightening Procedure - AR01.45-P-7500-07MRH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264

OIL PAN

Number	Designation		Engine 264
BA01.45-P-1001-01ZA	Bolt, oil pan to crankcase/timing case cover	Nm	11

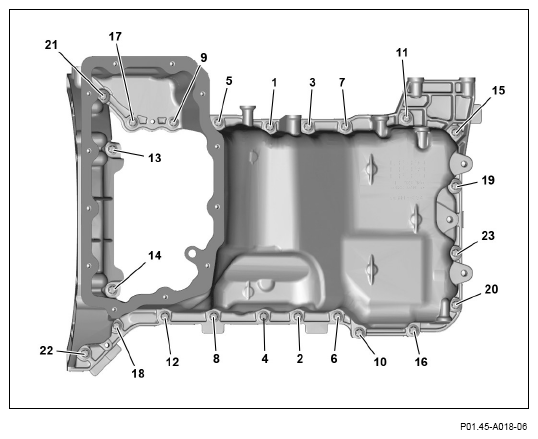

Fig 1: Engine Oil Pan Tightening Sequence - Engine 264 (Shown In Model 257 Except Code M005)

Courtesy of MERCEDES-BENZ USA

Shown on Engine 264 in model 257 except code M005 (4MATIC)

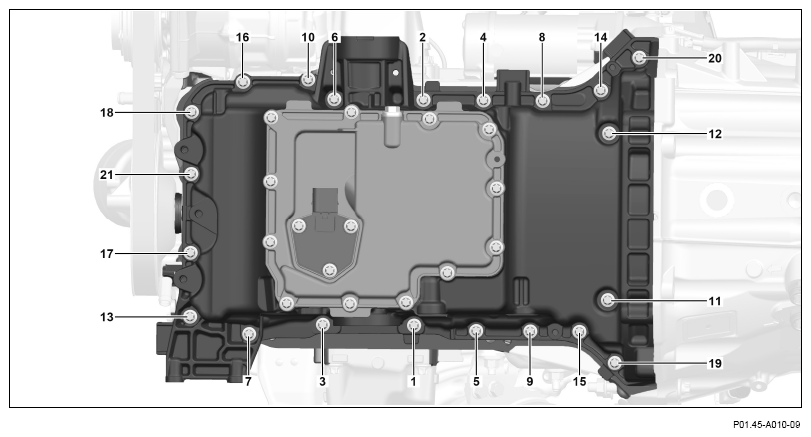

Shown on Engine 264 in model 167

Courtesy of MERCEDES-BENZ USA

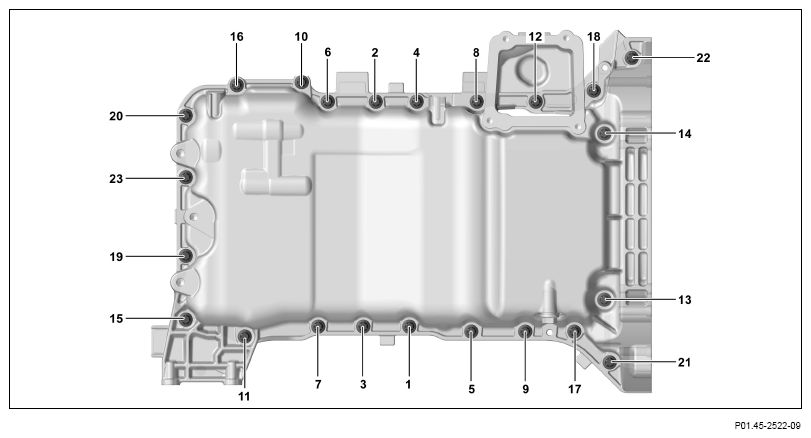

Fig 2: Engine Oil Pan Tightening Sequence - Engine 264 (Shown In Model 257 With Code M005)

Courtesy of MERCEDES-BENZ USA

Shown on Engine 264 in model 257 with code M005 (4MATIC)

Tighten screws (1 to 23) or (1 to 21) in ascending numerical sequence .
IMPORTANT: Screws (1 up to 23) or (1 up to 21) have varying lengths.
