Puller Hook For Lower Part Of Clip On Sliding/Pop-Up Roof Trim - WF58.50-P-7720-03A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

All models

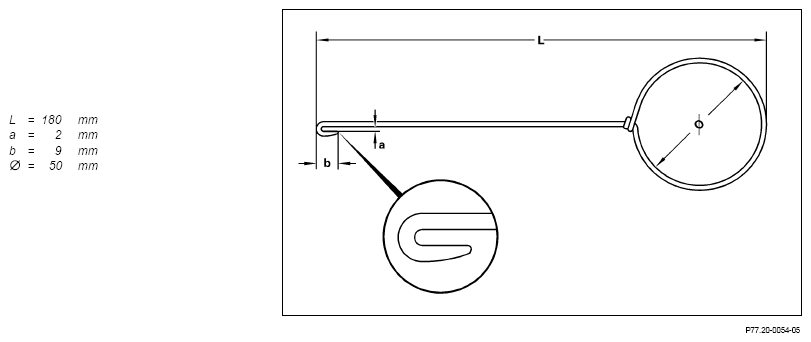

  1. Fabricate puller hook using welding wire Ø (2 mm dia.)
    NOTE: Fabricate puller hook (arrow), so that it passes through opening at bottom of clip.
    G14139169Courtesy of MERCEDES-BENZ USA
