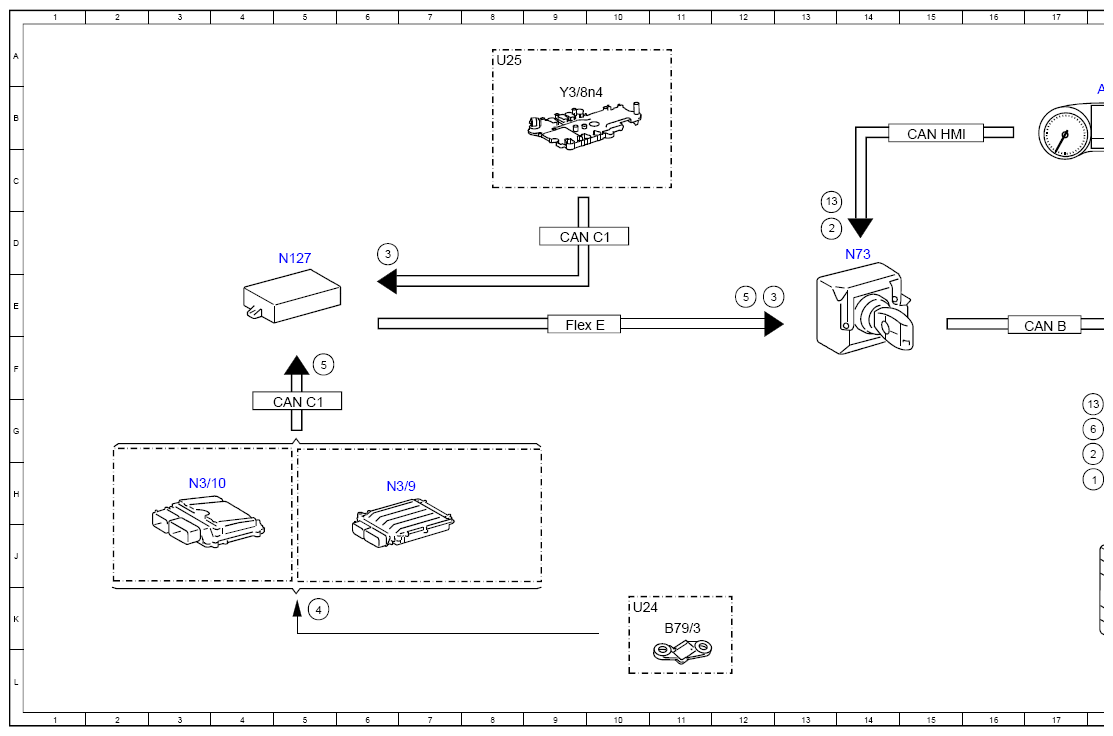

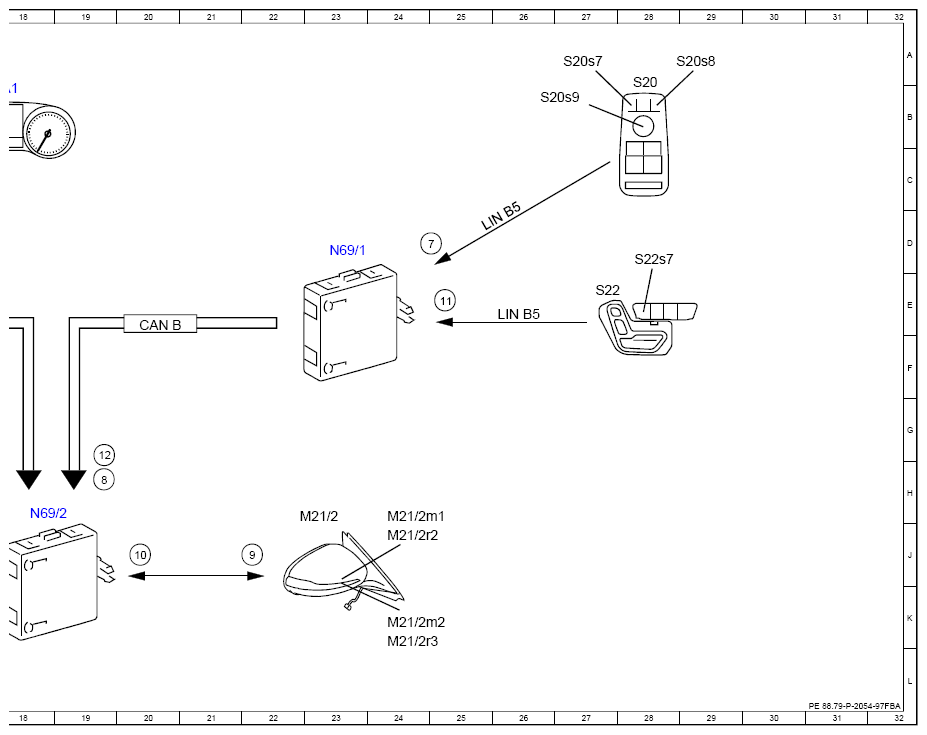

Electrical Function Schematic For Passenger-Side Outside Mirror Park Position - PE88.79-P-2054-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 18H |
| 10 | Potentiometer, signal | 20J |
| 11 | Seat adjustment switch group, status | 25E |
| 12 | Store passenger-side outside mirror park position, request | 19G |
| 13 | Vehicle speed, signal | 13C |
| 13 | Vehicle speed, signal | 18G |
| 2 | Passenger-side outside mirror park position, status | 18G |
| 2 | Passenger-side outside mirror park position, status | 13D |
| 3 | Gear range, status | 12E |
| 3 | Gear range, status | 6D |
| 4 | Manual transmission main shifter shaft position sensor, signal | 5K |
| 5 | Reverse gear engaged, signal | 5F |
| 5 | Reverse gear engaged, signal | 12E |
| 6 | Reverse gear, status | 18G |
| 7 | Driver-side switch group, status | 24D |
| 8 | Outside mirror actuator motor, request | 19H |
| 9 | Outside mirror actuator motor, actuation | 22J |
| A1 | Instrument cluster | 18B |
| B79/3 | Manual transmission main shifter shaft position sensor | 11K |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 20E |
| CAN C1 | Drive train CAN | 9D |
| CAN C1 | Drive train CAN | 5G |
| CAN MM] | User interface CAN | 15B |
| Flex E | Chassis FlexRay | 9E |
| LIN B5 | Left front door LIN | 26D |
| LIN B5 | Left front door LIN | 26E |
| M21/2 | Right outside mirror | 22H |
| M21/2m1 | Vertical inclination adjustment actuator motor | 24H |
| M21/2m2 | Horizontal inclination adjustment actuator motor | 24K |
| M21/2r2 | Vertical inclination adjustment potentiometer | 24J |
| M21/2r3 | Horizontal inclination adjustment potentiometer | 24K |
| N127 | Drivetrain control unit | 5D |
| N3/10 | ME-SFI [ME] control unit | 3H |
| N3/9 | CDI control unit | 6H |
| N69/1 | Left front door control unit | 23D |
| N69/2 | Right front door control unit | 18H |
| N73 | Electronic ignition switch control unit | 14D |
| S20 | Driver-side power window and outside mirror adjustment switch group | 28B |
| S20s7 | Left outside mirror adjustment switch | 27A |
| S20s8 | Right outside mirror adjustment switch | 28A |
| S20s9 | Outside mirror adjustment switch | 26B |
| S22 | Left front seat adjustment switch group | 27E |
| S22s7 | Left front memory function switch | 28D |
| U24 | Valid for manual transmission | 10K |
| U25 | Valid for automatic transmission | 8A |
| Y3/8n4 | Fully integrated transmission control control unit | 9B |
