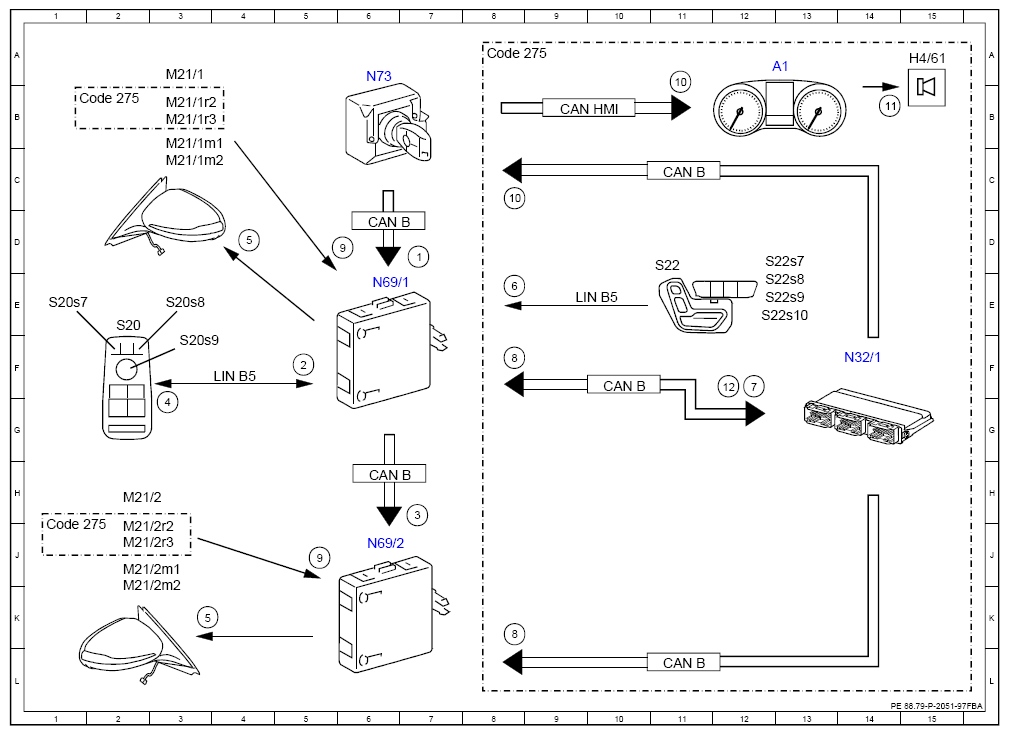

Electrical Function Schematic For Mirror Lens Adjustment - PE88.79-P-2051-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 7D |
| 10 | Acknowledgment tone after memory positions stored successfully, request | 11B |
| 10 | Acknowledgment tone after memory positions stored successfully, request | 8C |
| 11 | Speaker, actuation | 14B |
| 12 | Adopt memory position, request | 12F |
| 2 | Driver-side switch group, status | 5F |
| 3 | Outside mirror actuator motor, request | 7H |
| 4 | Visual feedback, request | 3G |
| 5 | Outside mirror actuator motor, actuation | 3K |
| 5 | Outside mirror actuator motor, actuation | 4D |
| 6 | Seat adjustment switch group, status | 8E |
| 7 | Store memory position, request | 12F |
| 8 | Store/call up position of exterior mirrors actuation | 8F |
| 8 | Store/call up position of exterior mirrors actuation | 8K |
| 9 | Potentiometer, signal | 6D |
| 9 | Potentiometer, signal | 5J |
| A1 | Instrument cluster | 13A |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 11L |
| CAN B | Interior CAN | 11C |
| CAN HMI | User interface CAN | 9B |
| Code 275 | Memory package | 1B |
| Code 275 | Memory package | 8A |
| Code 275 | Memory package | 1J |
| H4/61 | Instrument cluster speaker | 15A |
| LIN B5 | Left front door LIN | 4F |
| LIN B5 | Left front door LIN | 9E |
| M21/1 | Left outside mirror | 3A |
| M21/1m1 | Vertical inclination adjustment actuator motor | 3C |
| M21/1m2 | Horizontal inclination adjustment actuator motor | 3C |
| M21/1r2 | Vertical inclination adjustment potentiometer | 3B |
| M21/1r3 | Horizontal inclination adjustment potentiometer | 3B |
| M21/2 | Right outside mirror | 2H |
| M21/2m1 | Vertical inclination adjustment actuator motor | 2J |
| M21/2m2 | Horizontal inclination adjustment actuator motor | 2K |
| M21/2r2 | Vertical inclination adjustment potentiometer | 2J |
| M21/2r3 | Horizontal inclination adjustment potentiometer | 2J |
| N32/1 | Driver seat control unit | 14F |
| N69/1 | Left front door control unit | 6E |
| N69/2 | Right front door control unit | 6J |
| N73 | Electronic ignition switch control unit | 6A |
| S20 | Driver-side power window and outside mirror adjustment switch group | 2E |
| S20s7 | Left outside mirror adjustment switch | IE |
| S20s8 | Right outside mirror adjustment switch | 3E |
| S20s9 | Outside mirror adjustment switch | 3F |
| S22 | Left front seat adjustment switch group | 11D |
| S22s10 | Left front memory 3 switch | 12E |
| S22s7 | Left front memory function switch | 13D |
| S22s8 | Left front memory 1 switch | 13E |
| S22s9 | Left front memory 2 switch | 13E |
