Electrical Function Schematic For Folding Outside Mirrors - PE88.79-P-2057-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 500 (Electrically folding exterior mirrors)

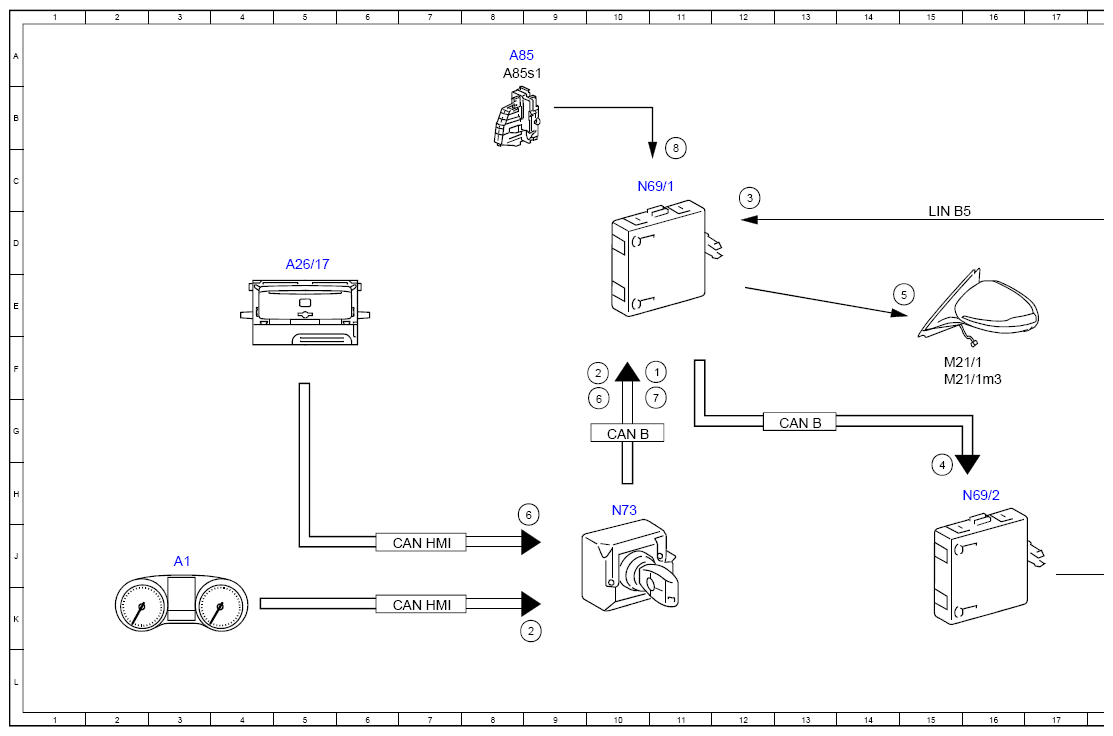

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11F |
| 2 | Vehicle speed, signal | 9K |
| 2 | Vehicle speed, signal | 10F |
| 3 | Driver-side switch group, status | 12C |
| 4 | Outside mirror actuator motor, request | 15H |
| 5 | Outside mirror actuator motor, actuation | 19J |
| 5 | Outside mirror actuator motor, actuation | 15E |
| 6 | Automatic power folding mirrors, status | 9H |
| 6 | Automatic power folding mirrors, status | 10G |
| 7 | Central locking, status | 11G |
| 8 | Door rotary tumbler switch, status | 11C |
| A1 | Instrument cluster | 3J |
| A26/17 | Head unit | 5D |
| A85 | Left front door lock | 8A |
| A85s1 | Left front door rotary tumbler switch | 8A |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 13G |
| CAN HMI | User interface CAN | 7K |
| CAN HMI | User interface CAN | 7J |
| LIN B5 | Left front door LIN | 15D |
| M21/1 | Left outside mirror | 15F |
| M21/1m3 | Outside mirror foId-in/fold-out electric motor | 15F |
| M21/2 | Right outside mirror | 20H |
| M21/2m3 | Outside mirror fold-in/fold-out electric motor | 20H |
| N69/1 | Left front door control unit | 10C |
| N69/2 | Right front door control unit | 16H |
| N73 | Electronic ignition switch control unit | 10H |

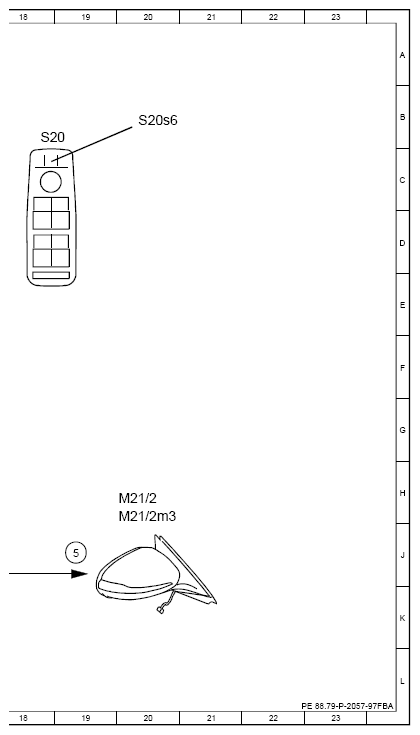

| S20 | Driver-side power window and outside mirror adjustment switch group | 18B |
| S20s6 | Outside mirror fold-in/fold-out switch | 20B |
