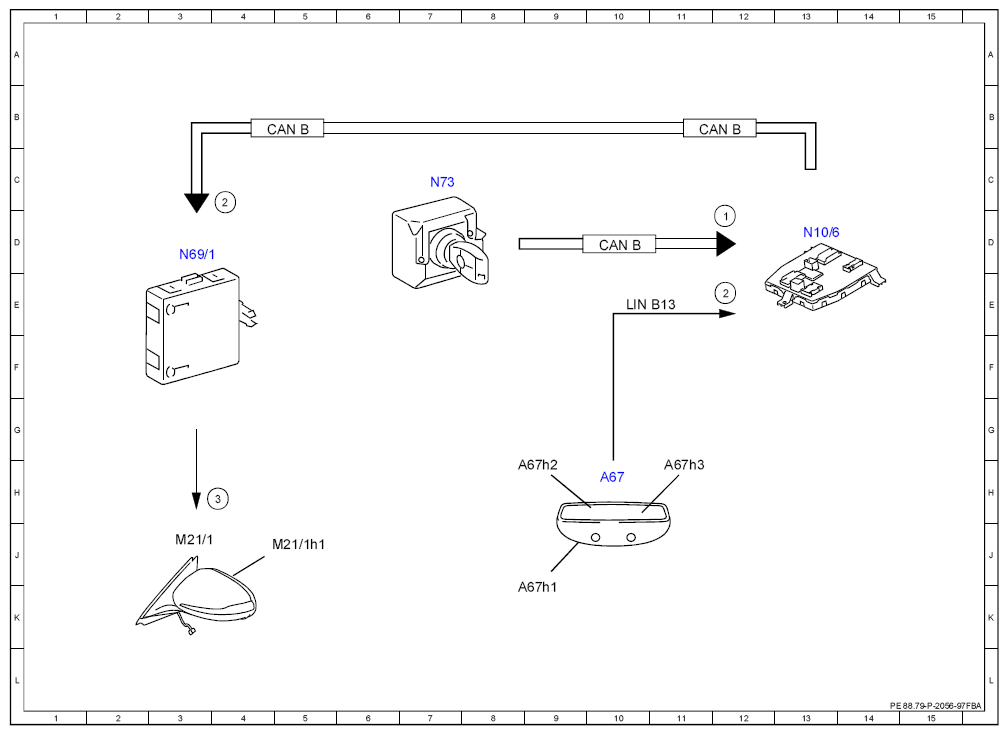

Electrical Function Schematic For Automatic Dimming Mirror - PE88.79-P-2056-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 249 (Automatic dimming inside rearview mirror and outside mirrors)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 12D |
| 2 | Mirror dimming, request | 4C |
| 2 | Mirror dimming, request | 12E |
| 3 | Mirror dimming, actuation | 4H |
| A67 | Inside rearview mirror | 10H |
| A67h1 | Forward automatic dimming mirror light sensor | 8K |
| A67h2 | Rearward automatic dimming mirror light sensor | 8H |
| A67h3 | Inside rearview mirror dimming | 11H |
| CAN B | Interior CAN | 5B |
| CAN B | Interior CAN | 11B |
| CAN B | Interior CAN | 10D |
| LIN B13 | Roof LIN | 10E |
| M21/1 | Left outside mirror | 3J |
| M21/1h1 | Automatic dimming mirror | 4J |
| N10/6 | Front SAM control unit | 13D |
| N69/1 | Left front door control unit | 3D |
| N73 | Electronic ignition switch control unit | 7C |
