Remove/Install Radiator Grille - AR88.40-P-4001LWE
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 213
except code P23 (EXCLUSIVE exterior)
Model 238, 253 (except 253.388/389/988/989)
| Remove/install | |||
| 1 | Remove front bumper (1) | Model 205 except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989) |
AR88.20-P-2000LW |
| Model 213 except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) except code P31 (AMG Line exterior) |
AR88.20-P-2000LWE | ||
| 2 | Disconnect electrical connectors from pedestrian protection sensor (4) | Model 205, 213 with code U60 (Active Bonnet (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) with code U60 (Active Bonnet (Pedestrian protection)) except code P31 (AMG Line exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Bonnet (Pedestrian protection)) |
|
| 3 | Remove impact absorber (3) | ||
| Topical note | Notes on pedestrian protection sensor | Model 205 with code U60 (Active Bonnet (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Bonnet (Pedestrian protection)) |
AH91.60-P-0001-01A |
| Topical note | General information on the impact absorber | AH88.20-P-1000-01A | |
Model 238 (except 238.361/461) with code U60 (Active Bonnet (Pedestrian protection)) except code P31 (AMG Line exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Bonnet (Pedestrian protection)) Assembly: Ensure that hose of pedestrian protection sensors (4) is seated correctly in impact absorber (3). If complaint present ↓ Correctly route hose of pedestrian protection sensor (4). Model 205 with code U60 (Active Bonnet (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Bonnet (Pedestrian protection)) |
AR91.60-P-0950LW | ||
| Model 213 with code U60 (Active Bonnet (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) with code U60 (Active Bonnet (Pedestrian protection)) except code P31 (AMG Line exterior) |
AR91.60-P-0950LWE | ||

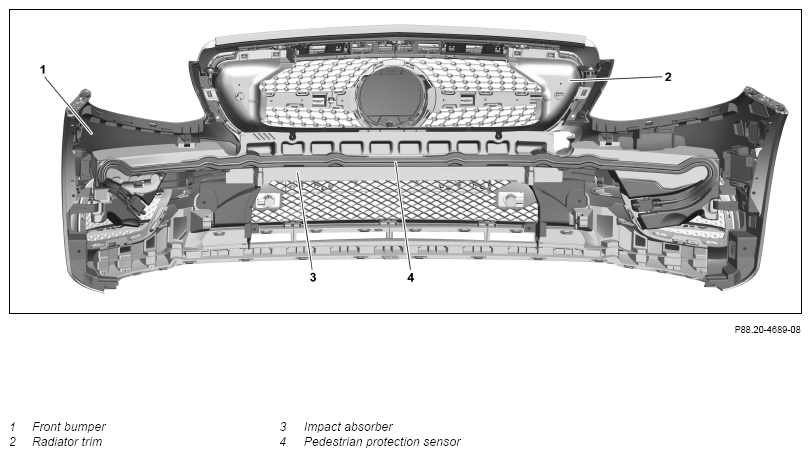

| 4 | Remove radiator trim (2) from front bumper (1) | ||
| 5 | Install in the reverse order |
