Actuate Emergency Release Of Fuel Filler Flap - AR88.60-P-1002LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 217

Model 222

Model 238

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

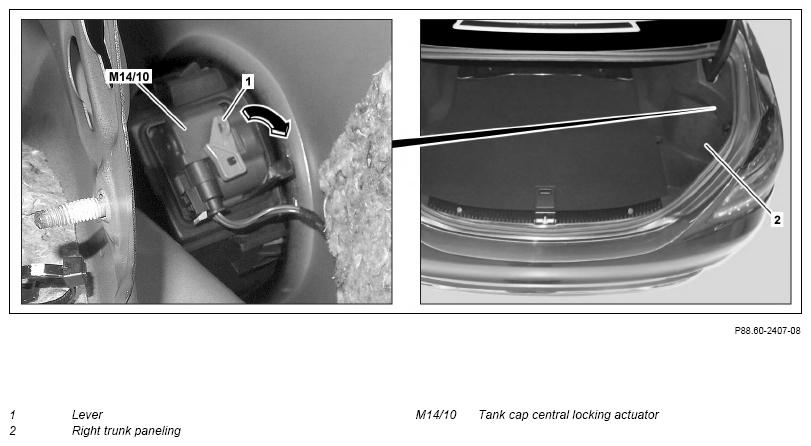

Shown on model 205.0

	Remove/install
1.1	Remove right trunk trim (2).	Model 205.0/1/3/4, 222, 238 Model 222.0/1/9	AR68.30-P-4600LF
		Model 205.0/1/3	AR68.30-P-4800LW
		Model 205.4, 238.4	AR68.30-P-4800LWR
		Model 238.3	AR68.30-P-4800LWO
1.2	Remove right load compartment cover.	Model 205.2	AR68.30-P-1180LWS
1.3	Loosen fender liner in right rear fender until lever (1) is accessible.	Model 217, 253, 293
		Model 217	AR88.10-P-1400LC
		Model 253 Model 293	AR88.10-P-1400LW
	Unlock
2	Turn lever (1) on fuel filler cap central locking system actuator (M14/10) in the direction of the arrow.
3	Install in the reverse order
