Subsequently Modify Mirror Housing - AN88.70-P-0006LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.9
except code 772 (AMG styling - Front spoiler, side skirts)
except code P31 (AMG Line exterior)
| Remove | |||

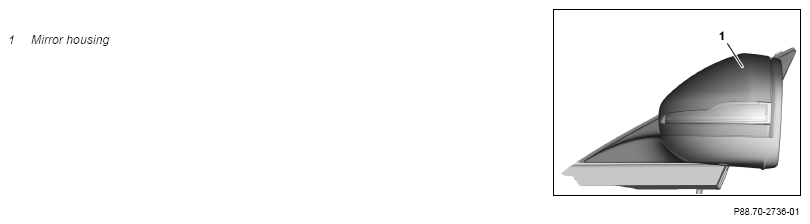

| 1 | Remove mirror housing (1) | ||
| AR88.70-P-9040LF | |||
| Install | |||
| 2 | Install new mirror housing (1) | ||
| AR88.70-P-9040LF | |||
| Update Vehicle Documentation (VeDoc) | |||
| 3 | Attach note "Mirror housing retrofitted as per AN88.70-P-0006LWG" under field organization texts to design group 88 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (see EPC) | Mirror housing parts kit | 1 |
