Retrofit Mirror Cover - AZ88.70-P-0100LWG

Model 253 (except 253.364/388/389/964/988/989)

with code 460 (Canada version)

with code 494 (US version)

with code 5XXL (Europe)

with code 601L (Egypt)

except code 512L (Azerbaijan)

except code 516L (Armenia)

except code 520L (Moldavia)

except code 541L (Iceland)

except code 552L (Montenegro)

except code 558L (Bosnia-Herzegovina)

except code 571L (Switzerland)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

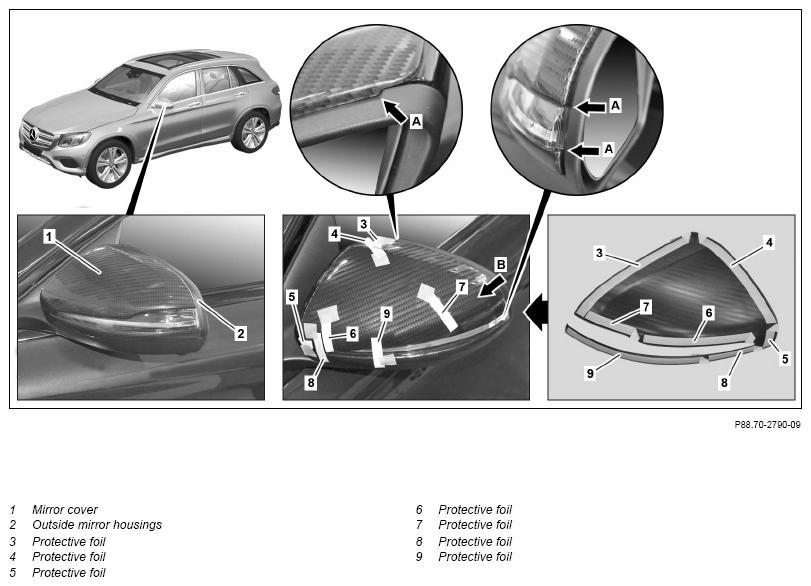

Shown on model 253.9

	Clean
1	Clean outside mirror housing (2)	Cleaner	*BR00.45-Z-1025-04A
	Install
2	Remove extending ends of protective foils (3, 4, 5, 6, 7, 8, 9) approx. 10 mm from adhesive surfaces and press on lightly
3	Fold over ends of protection foils (3, 4, 5, 6, 7 8, 9) at an angle of 45°
4	Fasten protective foils (3, 4, 5, 6, 7, 8, 9) on outer side of mirror cover (1) with adhesive tape	Ensure that the ends of the protective foils (3, 4, 5, 6, 7, 8, 9) do not extend to the inside of the mirror cover (1) when installing.
5	Position mirror cover (1) o outside mirror housing (2)	The mirror cover (1) should make exact contact with or surround the contours of the outside mirror housing (2) particularly at the edges and offsets (arrows A).
6	Press mirror cover (1) down on outside mirror housing (2) on side pointing toward vehicle (arrow B)	Constantly maintain pressure during operation steps 7 and 8.
7	Detach adhesive tape and remove protective foil (3)	While removing protective foil (3), continuously check whether mirror cover (1) makes correct contact. It is no longer possible to reposition after bonding. Observe removal direction of protective foil (3).
8	Press on mirror cover (1) in area of adhesive strips
9	Detach adhesive strips and remove protective foils (4, 5, 6, 7, 8, 9) in ascending numerical order	While removing the protective foils (4, 5, 6, 7, 8, 9) continuously check whether mirror cover (1) makes correct contact particularly with edges and offsets (arrows A). It is no longer possible to reposition after bonding. Observe removal direction of protective foils (4, 5, 6, 7, 8, 9).
10	Press mirror cover (1) in direction of inner edges starting at side closest to vehicle (arrow B)	When pressing on, press directly on adhesive strips on mirror cover (1). Otherwise there may be adhesion problems.
11	Remove adhesive residues on adhesive tapes from mirror cover (1)	Avoid any contact with moisture (e.g. frost, rain, fog, carwash) or any mechanical stress during first 24 hours. Otherwise the adhesive force starts to decrease. Do not polish mirror cover (1). Otherwise the surface can be damaged. The maximum adhesive force is reached after approx. 72 hours at 20°C.
		Cleaner	*BR00.45-Z-1025-04A
	Update Vehicle Documentation (VeDoc)
12	Attach note mirror cover according to AZ88.70-P-0100LWG retrofitted under field organization text to KG 72
