Retrofit Front Bumper Trim Piece - AZ88.20-P-0050-01LWH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 as of 6/1/19

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

The following operation steps are shown on the left side of the vehicle and can be accomplished analogously on the left and right side of the vehicle.

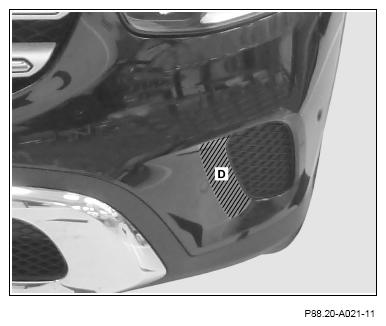

Clean front bumper in crosshatched area (D).

Courtesy of MERCEDES-BENZ USA

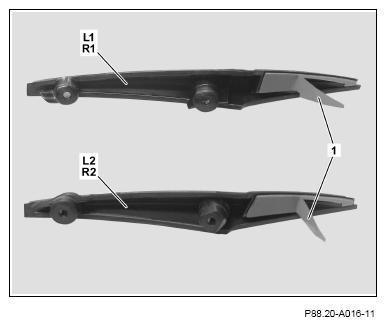

Remove rear protective foils (1) from carriers (L1, L2, R1, and R2).
The packaging and carriers (L1, L2, R1, and R2) are marked:

L1 = top left

L2 = bottom left

R1 = top right

R2 = bottom right

Courtesy of MERCEDES-BENZ USA

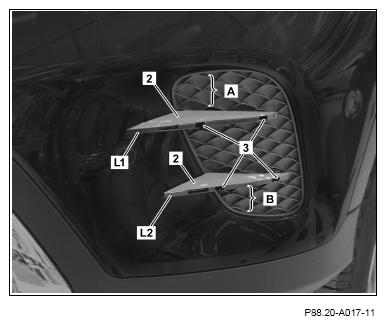

Align top carrier (L1) with front bumper.
The top carrier (L1) shall be aligned such that two complete honeycombs (A) can be seen from above.
Align bottom carrier (L2) with front bumper.
The bottom carrier (L2) shall be aligned such that two complete honeycombs (A) can be seen from below.

Courtesy of MERCEDES-BENZ USA
Attach the affixed carriers (L1 and L2) with the self tapping screws included in the delivery.
Do not use a cordless screwdriver; tighten by hand using a suitable tool.
Press on carriers (L1 and L2) firmly in bonding area.
Remove protective foils (2) from carriers (L1 and L2).

Courtesy of MERCEDES-BENZ USA

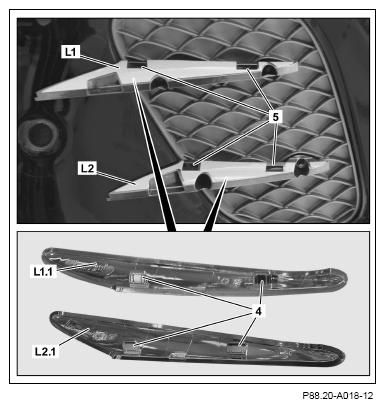

Position trim elements (L1.1 and L2.1) on carriers (L1 and L2).
The centering aids (4) shall match the guides (5).

Courtesy of MERCEDES-BENZ USA

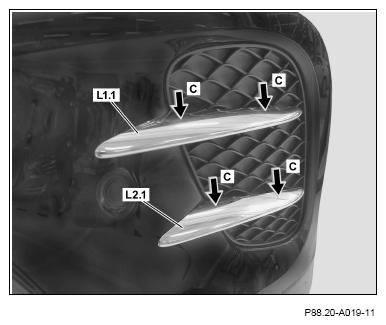

Insert trim elements (L1.1 and L2.1) into carriers (L1 and L2) at a slanted angle from above in direction of arrow (C) and press on firmly.
Check whether trim elements (L1.1 and L2.1) are seated tightly.
